Index Plunger Pins: The Precision Positioning Solution Transforming Industrial Automation

Industry Overview

Index plunger pins have become indispensable components in modern manufacturing, offering unmatched precision in mechanical positioning applications. The global market for these specialized fasteners is projected to grow at 6.8% CAGR through 2030, reaching $1.2 billion, driven by increasing automation across automotive, aerospace, and electronics sectors.

Technical Specifications & Design Features

Key Mechanical Properties

• Diameter Range: 3mm to 25mm (1/8" to 1")

• Length Options: 10mm to 100mm (0.4" to 4")

• Materials:

  • Hardened steel (HRC 58-62)

  • Stainless steel (304/316)

  • Aluminum alloys (for lightweight applications)

• Spring Forces: 5N to 50N (1.1lbf to 11.2lbf)

Precision Engineering Features

1. Repeatability: ±0.005mm positioning accuracy

2. Load Capacity: Up to 500N axial force

3. Cycle Life: 1 million+ operations

4. Temperature Range: -40°C to +120°C (special versions to +250°C)

Industry Applications

1. Automotive Manufacturing

• Engine Component Alignment: Precise positioning of camshafts and crankshafts

• Transmission Assembly: Secure location during gear installation

• Body-in-White Fixturing: Repeatable panel positioning

2. Aerospace Engineering

• Wing Assembly Jigs: Critical alignment of structural components

• Landing Gear Systems: Secure locking in extended/retracted positions

• Avionics Mounting: Vibration-resistant positioning

3. Electronics Production

• PCB Assembly: Accurate board location in test fixtures

• Semiconductor Handling: Cleanroom-compatible versions

• Robotic End Effectors: Quick-change tooling interfaces

4. Medical Equipment

• Surgical Robot Positioning: Sterilizable stainless steel variants

• Implant Manufacturing: Biocompatible material options

• Diagnostic Machines: Vibration-free locking

Performance Advantages

Operational Benefits

• Tool-less Operation: Enables rapid changeovers

• Positive Engagement: Tactile and audible feedback

• Vibration Resistance: Maintains position under dynamic loads

• Maintenance-Free Design: Sealed versions available

Economic Impact

• 30% Reduction in assembly time vs traditional fasteners

• 60% Fewer positioning errors in automated lines

• 5-Year ROI for most industrial applications

Installation & Maintenance

Best Practices

1. Bore Preparation:

   • H7 tolerance recommended

   • Surface finish of 1.6μm Ra or better

2. Alignment Verification:

   • Laser measurement for critical applications

   • Go/no-go gauge testing

3. Lubrication Schedule:

   • Annual maintenance for standard environments

   • Quarterly in high-cycle or dirty conditions

Innovation Trends

Next-Generation Developments

• Smart Plungers: IoT-enabled with position sensors

• Self-Lubricating Materials: PTFE-impregnated alloys

• Hybrid Designs: Combined electrical/mechanical contacts

• Additive Manufacturing: Custom geometries for special applications

Selection Guide

Key Decision Factors

1. Precision Requirements

2. Environmental Conditions

3. Cycle Frequency

4. Load Characteristics

5. Industry Certifications

Market Outlook

The index plunger pin market is evolving with:

• Increased demand for corrosion-resistant versions

• Growth in miniature sizes (<3mm) for micro-assembly

• Development of quick-release mechanisms for Industry 4.0

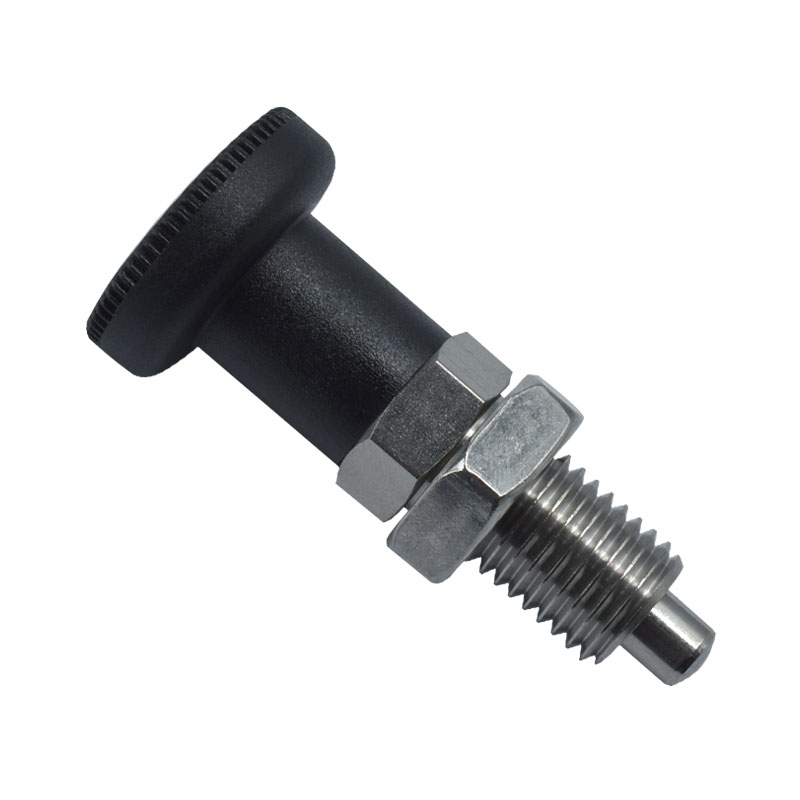

Discover our GN617, GN 617, and index plunger pins for precise positioning and reliable performance in industrial applications. Durable and efficient, they ensure smooth operation. Contact us for custom solutions tailored to your needs.

Index plunger pins represent a critical technology enabling modern precision manufacturing. Their combination of reliability, accuracy, and ease of use makes them essential components in automated production systems across industries. As manufacturing tolerances continue to tighten, these components will play an increasingly vital role in industrial automation strategies.
