What Are the Standard Sizes of Spring Ball Plungers?

Spring ball plungers are versatile mechanical components used for positioning, indexing, and securing parts in various applications. They are available in a wide range of standard sizes to accommodate different needs. This article explores the standard sizes of spring ball plungers, their measurements, and how to choose the right size for your application.

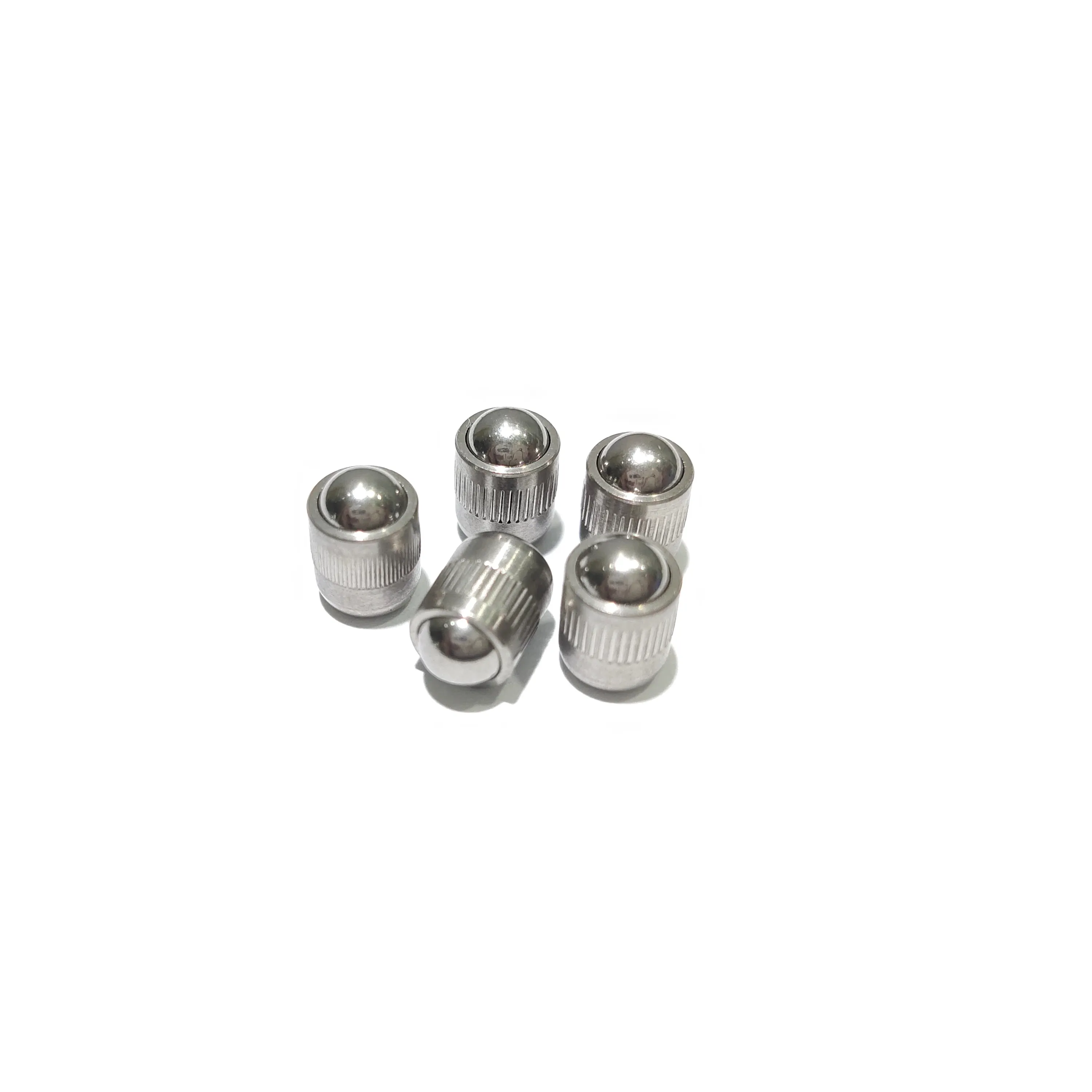

Explore our ball spring plungers and ball pins for precise positioning and reliable performance in industrial applications. Durable and efficient, they ensure smooth operation. Contact us for custom solutions today.

---

1. Overview of Spring Ball Plungers

Spring ball plungers consist of a spring-loaded ball housed in a threaded body. When pressed, the ball retracts into the body, and when released, it springs back into place, engaging with detents or holes to secure components. They are commonly used in machinery, fixtures, and equipment where precise positioning is required.

---

2. Standard Sizes of Spring Ball Plungers

Spring ball plungers are manufactured in standard sizes, which are typically defined by their thread size, ball diameter, and overall length. Below are the common standard sizes:

Metric Sizes (in millimeters)

• Thread Size: M3, M4, M5, M6, M8, M10, M12

• Ball Diameter: 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm

• Overall Length: Ranges from 10mm to 50mm, depending on the thread size and ball diameter.

Imperial Sizes (in inches)

• Thread Size: #4-40, #6-32, #8-32, #10-32, 1/4"-28, 5/16"-24, 3/8"-24

• Ball Diameter: 1/8", 5/32", 3/16", 1/4", 5/16", 3/8"

• Overall Length: Ranges from 0.5" to 2", depending on the thread size and ball diameter.

---

3. Key Measurements to Consider

When selecting a spring ball plunger, the following measurements are critical:

• Thread Size: Determines the compatibility with the threaded hole in your application.

• Ball Diameter: Affects the engagement strength and suitability for the detent size.

• Overall Length: Ensures the plunger fits within the available space.

• Spring Force: Determines the amount of pressure required to retract the ball.

---

4. Choosing the Right Size

Selecting the correct size of a spring ball plunger depends on your specific application:

• Small Applications: Use smaller sizes like M3 or #4-40 for lightweight tasks or tight spaces.

• Medium Applications: Sizes like M6 or 1/4"-28 are ideal for general-purpose use.

• Heavy-Duty Applications: Larger sizes like M12 or 3/8"-24 provide greater strength and durability.

---

5. Applications of Standard-Sized Spring Ball Plungers

Standard sizes cater to a wide range of industries and uses, including:

• Machinery and Equipment: For positioning and securing moving parts.

• Automotive: In adjustable components and assembly fixtures.

• Furniture: For modular systems and adjustable shelves.

• Electronics: In enclosures and access panels.
