Positioning accuracy and operational efficiency are the two core elements that determine product quality and operational reliability. With the increasing demand for high-frequency adjustment and quick disassembly, a simple, reliable and efficient locking solution has become the focus of manufacturers and engineers. In this article, we will introduce a widely used structural device - Spring Loaded Locking Mechanism, as well as one of the common representative products - Indexing Plunger.
What is the Spring Loaded Locking Mechanism?
The Spring Loaded Locking Mechanism is a mechanical structure based on spring force for automatic locking and positioning. The core principle is to set a set of springs inside the device. When the operating head is pushed or released, the springs push the locking pin or pin into the preset position, realizing quick positioning or fixing. Compared with the traditional bolting method, this mechanism has higher operating efficiency and repeatability.
The Spring Loaded Locking Mechanism is a mechanical structure based on spring force for automatic locking and positioning. The core principle is to set a set of springs inside the device. When the operating head is pushed or released, the springs push the locking pin or pin into the preset position, realizing quick positioning or fixing. Compared with the traditional bolting method, this mechanism has higher operating efficiency and repeatability.
Main Components
- Spring: It provides continuous thrust to automatically return the locking element to its position
- Pins or locks: It can be inserted into the target hole to achieve mechanical positioning
- Housing Body: For mounting and fixing
- Operating Components: Such as pull tabs, knobs or buttons for manual control of locking or releasing.
This type of construction is used in a wide range of industrial systems where frequent adjustment, fixing or positioning is required, without the need for additional tools, making it easy and reliable to operate.

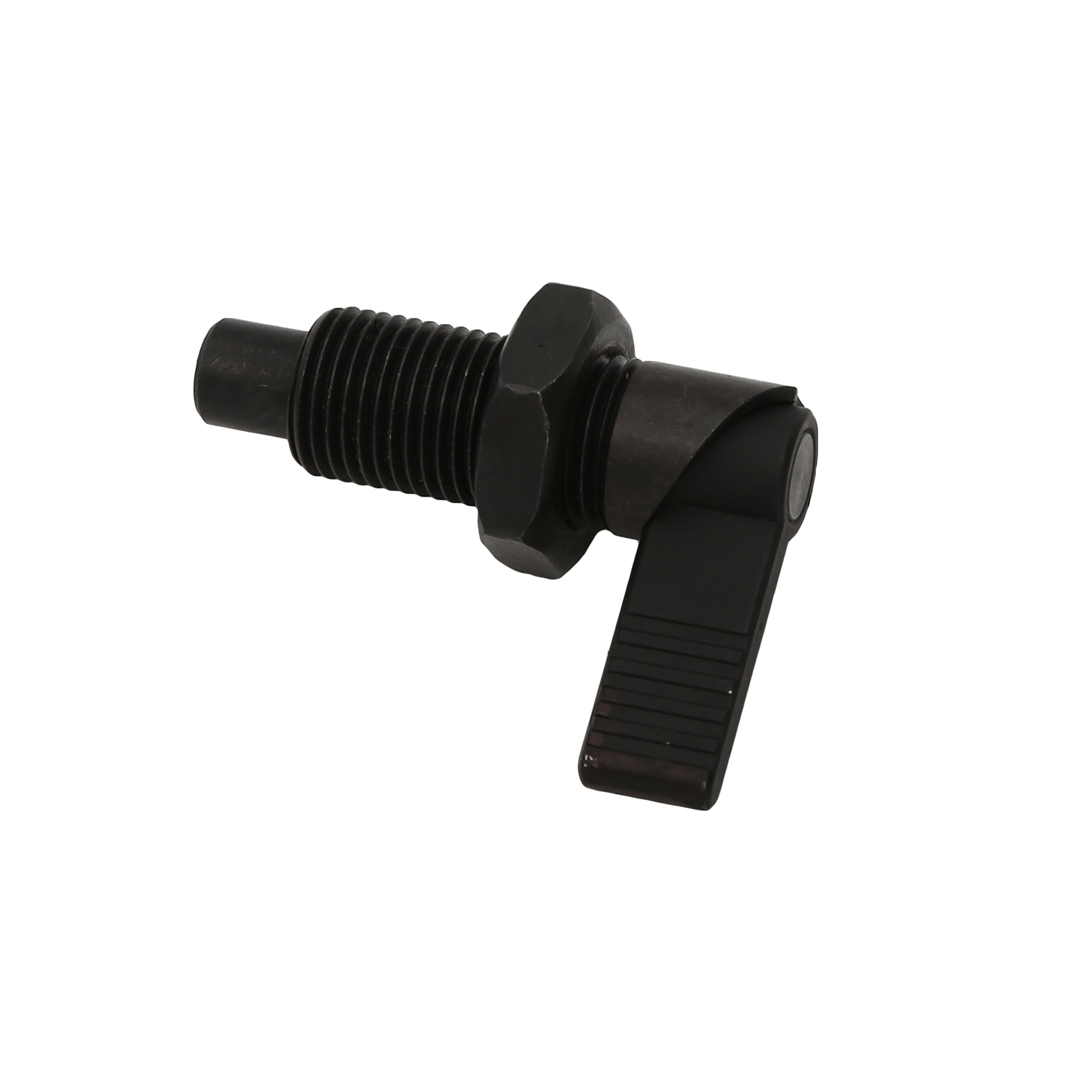

Common Application Scenarios for the Indexing Plunger
The Indexing Plunger is widely used where quick disassembly, repetitive adjustments or moving parts are required, typical applications include:
The Indexing Plunger is widely used where quick disassembly, repetitive adjustments or moving parts are required, typical applications include:
- CNC Machining Fixtures: For quick positioning or replacement of fixtures.
- Test Bench Adjustment Components: For multi-position switching and positioning
- Slide Rail Limit Systems: To prevent devices from sliding or shifting
- Medical Device Construction: For safe and easy adjustment and locking of components
Achieve secure, precise stops with an index plunger featuring a robust spring loaded locking mechanism. Built to perform.
