What Is A Spring Plunger?

A spring plunger, also known as a spring-loaded plunger or ball plunger, is a mechanical device designed to provide precise positioning, locking, or ejection functions in various applications. It consists of a spring-loaded mechanism housed within a threaded body, typically featuring a plunger tip that can be a ball, pin, or other shaped component. This simple yet versatile tool is widely used in industries such as manufacturing, automation, and machinery.

Structure and Components

The spring plunger is composed of three main components:

1. Threaded Body: The outer casing of the spring plunger is usually threaded, allowing it to be easily screwed into a pre-tapped hole. This ensures secure installation and adjustability.

2. Spring: Inside the body, a compression spring provides the necessary force to push the plunger tip outward. The spring's tension can often be adjusted to suit specific requirements.

3. Plunger Tip: The tip of the plunger can vary in shape, with common types including ball tips, pin tips, or custom designs. The tip is the part that makes contact with the target surface, enabling functions like positioning, locking, or ejection.

How It Works

The spring plunger operates on a straightforward principle. When the plunger tip is pressed against a surface, the spring compresses, allowing the tip to retract into the body. Once the force is removed, the spring pushes the tip back to its original position. This mechanism enables the plunger to perform tasks such as:

• Positioning: By engaging with detents or holes, the plunger can hold components in precise locations.

• Locking: The plunger can secure parts in place, preventing unintended movement.

• Ejection: In some applications, the spring force can be used to eject or release components.

Applications

Spring plungers are utilized in a wide range of industries and applications, including:

• Machinery and Equipment: They are often used to lock or position machine parts, ensuring accurate alignment and operation.

• Automotive: In vehicles, spring plungers can be found in gear shift mechanisms, seat adjustments, and other components requiring precise movement.

• Electronics: They are used in devices like connectors and switches to ensure proper engagement and disengagement.

• Furniture: Spring plungers can be found in adjustable furniture components, such as reclining chairs or modular shelving systems.

Advantages

The spring plunger offers several benefits, including:

• Simplicity: Its design is straightforward, making it easy to install and maintain.

• Versatility: With various tip designs and spring tensions, it can be adapted to numerous applications.

• Durability: Made from materials like stainless steel or hardened alloys, spring plungers are built to withstand wear and tear.

• Cost-Effectiveness: They provide reliable performance at a relatively low cost.

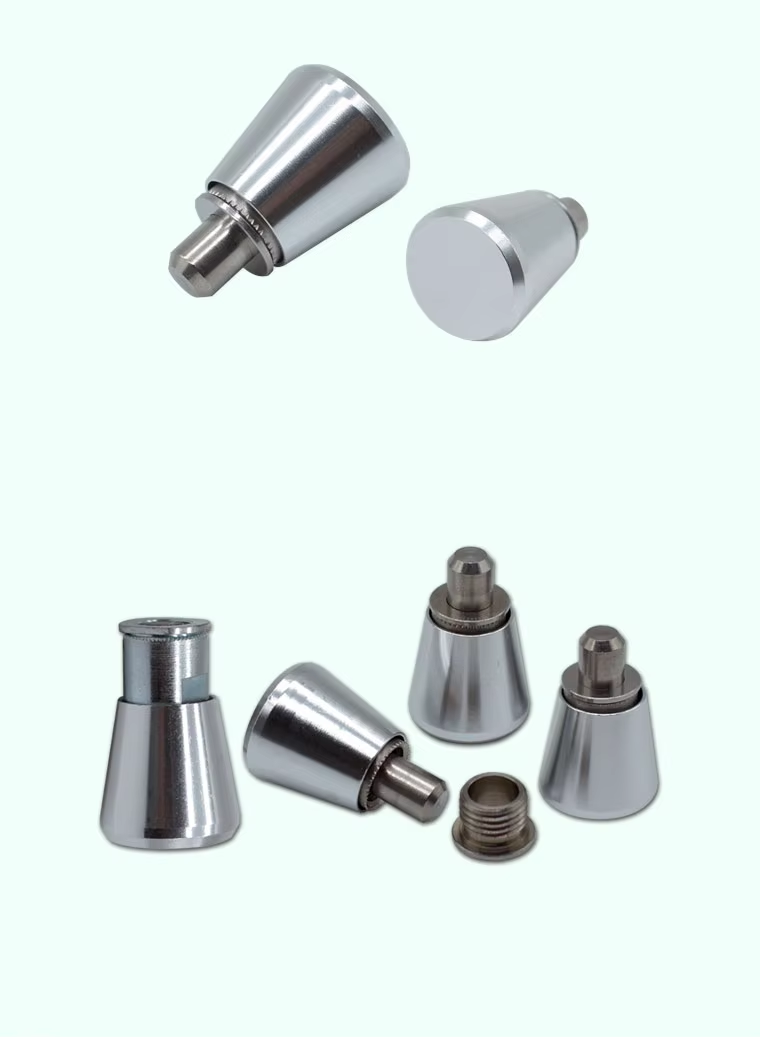

Discover what a spring plunger is and explore our spring loaded plunger pins for precise positioning and reliable performance in industrial applications. Durable and efficient, they ensure smooth operation. Contact us for custom solutions tailored to your needs.
