Push Button Quick Release Pin: A Comprehensive Guide

Introduction

The Push Button Quick Release Pin is a crucial fastening component used in industries requiring rapid assembly and disassembly. This pin offers a reliable and efficient locking mechanism that ensures secure fastening while allowing for quick release with the simple push of a button. It is widely used in aerospace, automotive, marine, industrial machinery, and many other applications where time efficiency and reliability are critical.

This article provides a detailed exploration of Push Button Quick Release Pins, including their design, functionality, benefits, applications, and standard technical specifications.

What is a Push Button Quick Release Pin?

A Push Button Quick Release Pin is a high-precision fastener designed for easy and secure attachment and detachment. It features a spring-loaded push button at one end, which, when pressed, retracts the locking balls at the opposite end, allowing for easy removal. When released, the balls expand back into place, securing the pin in position.

These pins are made from high-strength materials such as stainless steel and alloy steel, offering durability, corrosion resistance, and long-term performance in demanding environments.

Key Features and Benefits

• Quick and Easy Operation: No tools required; a simple push of the button allows for immediate release.

• Secure Locking Mechanism: Locking balls expand to prevent accidental disengagement.

• High Load Capacity: Engineered to withstand heavy-duty applications.

• Corrosion Resistance: Made from stainless steel or coated steel for longevity.

• Versatile Applications: Used in aerospace, marine, industrial, and construction environments.

Applications of Push Button Quick Release Pins

1. Aerospace and Aviation

Push button quick release pins are essential for securing panels, seats, and components in aircraft, ensuring both safety and convenience.

2. Marine and Offshore Equipment

Due to their corrosion-resistant properties, these pins are used in securing boat components, deck fittings, and marine rigging systems.

3. Automotive and Motorsport

Quick-release pins play a vital role in securing removable body panels, seat adjustments, and performance tuning applications.

4. Industrial Machinery and Manufacturing

They are widely used in conveyor systems, tooling fixtures, and automated production lines to facilitate quick assembly and disassembly.

5. Construction and Heavy Equipment

Perfect for scaffolding, lifting systems, and machinery where fast and secure fastening is required.

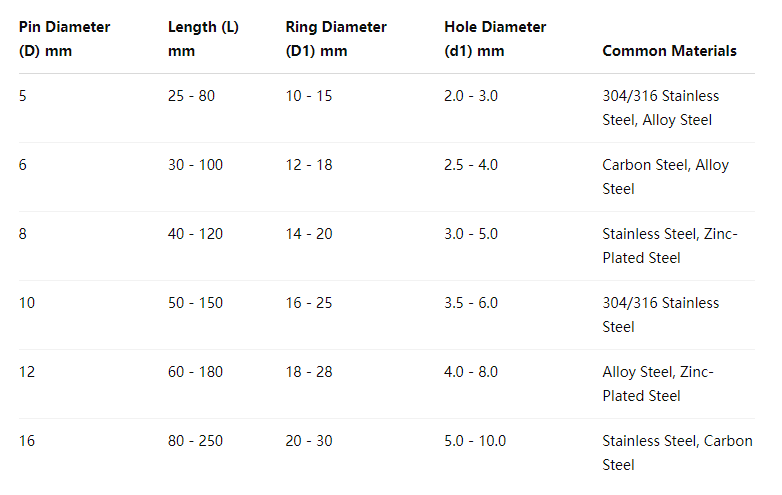

Standard Specifications and Size Chart

Below is a table outlining the standard dimensions and specifications for Push Button Quick Release Pins:
