Spring Loaded Plunger Pins: A Precision Fastening Solution for Modern Engineering

Introduction

In the fast-paced world of engineering and industrial manufacturing, efficient fastening mechanisms are crucial to maintaining performance, safety, and productivity. Among the most versatile and dependable components is the Spring Loaded Plunger Pin. Known for its ability to provide secure positioning, indexing, and locking in a wide variety of applications, this pin plays a critical role in machinery, automotive, aerospace, medical, and consumer electronics sectors.

This article explores the functionality, types, design considerations, materials, applications, and future trends of Spring Loaded Plunger Pins.

What is a Spring Loaded Plunger Pin?

A Spring Loaded Plunger Pin is a mechanical device used to temporarily lock, position, or hold parts in place. It consists of a pin (or plunger) housed inside a cylinder or body, and a spring mechanism that allows the pin to retract and extend under pressure. When installed, the spring provides constant pressure to keep the pin engaged with the mating component until manually retracted or removed.

Key Functional Components

1. Plunger/Pin Head: The actual locking part that moves in and out of position.

2. Spring Mechanism: Provides resistance and pushes the plunger forward.

3. Housing Body: Encases the internal spring and plunger, often threaded for mounting.

4. Actuation Method: Some pins have a knob, button, or lever for manual retraction.

Types of Spring Loaded Plunger Pins

Spring loaded plungers are manufactured in various designs to serve different industrial needs. The most common types include:

1. Hand Retractable Plunger Pins

These are designed for easy manual operation and usually include a pull knob or ring. They are ideal for jigs, fixtures, and adjustable systems.

2. Threaded Plungers

With a threaded body for secure mounting, these plungers allow precise adjustment in both axial and radial alignment.

3. Lock-Out Type

These allow the pin to be held in a retracted position, offering safety during maintenance or repositioning.

4. Indexing Plungers

These are specifically used for positioning or indexing parts and components with high repeatability and stability.

5. Ball Nose and Cone Nose Plungers

These feature specially shaped tips for unique applications involving curved or angled surfaces.

Material Composition and Finishes

1. Stainless Steel

Offers excellent corrosion resistance, durability, and is suitable for outdoor and marine applications.

2. Steel (Zinc Plated or Black Oxide)

Cost-effective, robust, and commonly used in industrial settings where aesthetics and corrosion are not primary concerns.

3. Thermoplastic or Nylon Tips

Ideal for delicate applications where metal contact must be avoided.

4. Spring Materials

Typically made from stainless steel or music wire, designed for long service life and consistent force.

Industrial Applications

Spring Loaded Plunger Pins are used in a wide array of industries. Some key sectors include:

1. Automotive

Used in adjustable seats, locking mechanisms, hood latches, and gear systems.

2. Aerospace

Provides positioning solutions in aircraft seating, cargo handling, and adjustable panels.

3. Manufacturing and Automation

Utilized in fixture setups, conveyors, clamping tools, and robot end effectors.

4. Medical Equipment

Enables modularity and safety in surgical equipment, wheelchairs, and hospital beds.

5. Renewable Energy

In wind turbines and solar trackers for quick assembly and secure locking.

Advantages of Using Spring Loaded Plunger Pins

• Quick and Reliable Positioning

• Compact and Lightweight

• High Cycle Life

• Low Maintenance Requirements

• Versatile Mounting Options

• Excellent Repeatability

Design Considerations

When selecting a Spring Loaded Plunger Pin, engineers must consider:

1. Retraction Force

The amount of force required to compress the spring must match the application need.

2. Stroke Length

Defines the distance the pin moves in and out, influencing fit and hold security.

3. Operating Environment

Factors like temperature, moisture, and chemical exposure impact material selection.

4. Load Bearing Requirements

Larger pins may be needed for high-shear or axial loads.

5. Installation Space

Compact systems may require mini plungers or alternative mounting styles.

Customization Options

Manufacturers often provide custom-designed Spring Loaded Plunger Pins to suit non-standard installations. These may include:

• Custom thread lengths

• Special tip shapes

• Unique actuation mechanisms (push button, hex drive, T-handle)

• Color-coded knobs for identification

• Safety lock-outs or detents

---

Installation and Maintenance

Installation Tips

• Always align the pin with the mating hole.

• Use thread-locking agents when needed.

• Consider backing nuts for added security in high-vibration environments.

Maintenance Guidelines

• Regular inspection for corrosion or wear.

• Lubricate the spring mechanism for smooth operation.

• Replace any bent or sticking pins immediately.

Future Trends in Spring Loaded Plungers

As automation and compact systems continue to evolve, Spring Loaded Plunger Pins are adapting with:

• Miniaturization for electronics and robotics

• Smart feedback systems that notify operators of position changes

• Sustainable materials and coatings for eco-friendly manufacturing

• Tool-less installation to reduce setup time

Comparative Overview with Similar Components

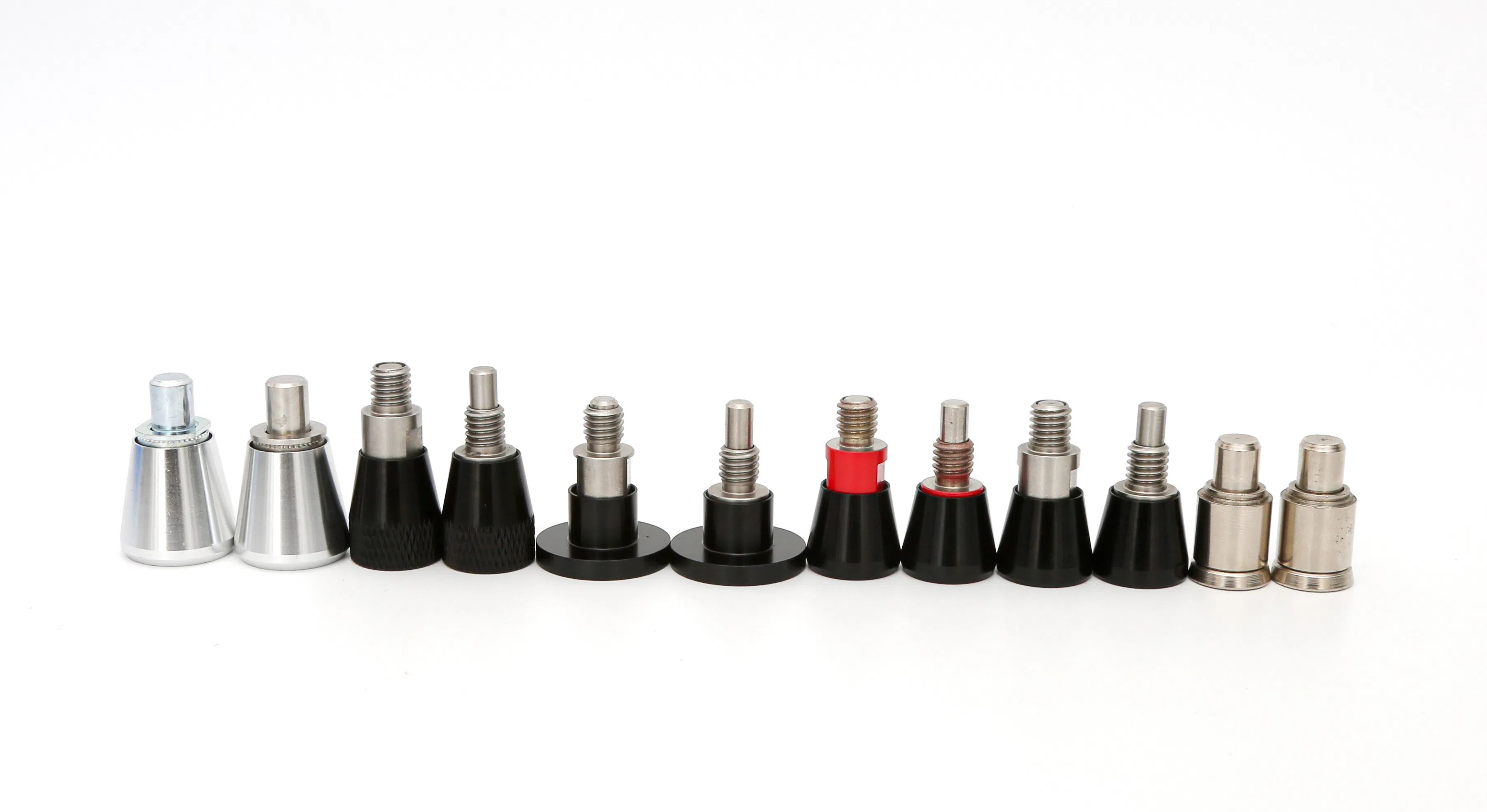

Enhance your hardware with spring loaded plunger pins, offering secure and precise fastening for industrial, automotive, and machinery applications. Durable, reliable, and easy to use—perfect for efficient operations.

The Spring Loaded Plunger Pin continues to be a staple in the world of mechanical design and precision assembly. With their compact form, versatile functions, and high durability, they address critical needs across various industries. Whether you're designing for aerospace precision or industrial efficiency, the right plunger pin can make a significant impact on performance and reliability.

As technology evolves, so too will the innovations in plunger pin designs, pushing the boundaries of modularity, automation, and smart locking mechanisms. For engineers and buyers seeking robust fastening solutions, Spring Loaded Plunger Pins represent both tradition and forward-thinking progress in one compact unit.
