T-Handle Locking Pins: The Ultimate Solution for Secure, Ergonomic Fastening in Industrial Applications

Introduction

T-handle locking pins have revolutionized the world of industrial fastening by combining superior security with unparalleled ease of use. These innovative components are experiencing explosive growth across multiple sectors, with market analysts projecting a 14.5% CAGR through 2030, driven by increasing demand in aerospace, heavy machinery, and renewable energy applications. As industries prioritize both worker safety and operational efficiency, T-handle locking pins are becoming the fastener of choice for critical connections requiring both strength and quick operation.

Technical Specifications & Engineering Excellence

Core Design Features

• Handle Configurations:

  • Standard T-grip (60-200mm width options)

  • Low-profile folding designs (for confined spaces)

  • Rotating collar versions (for torque reduction)

• Materials Engineering:

  • Handle Materials:

    • Forged steel (maximum durability)

    • 6061-T6 aluminum (lightweight applications)

    • Glass-reinforced nylon (electrical insulation)

  • Pin Components:

    • Case-hardened alloy steel (HRC 58-62)

    • 17-4PH stainless steel (corrosion resistance)

    • Titanium alloys (aerospace-grade strength)

• Performance Specifications:

  • Shear Strength: Up to 35kN (7,870 lbf)

  • Operating Temperature Range: -65°F to +500°F (-54°C to +260°C)

  • Cycle Life: 1,000,000+ operations (properly maintained)

Advanced Locking Mechanisms

1. Positive Engagement Systems:

   • Spring-loaded ball detents (3-5 ball configurations)

   • Dual-stage locking for critical applications

2. Safety Enhancements:

   • Automatic relocking if partially engaged

   • Visual position indicators (color-coded flags)

3. Ergonomic Innovations:

   • Contoured grip surfaces (reducing hand fatigue by 40%)

   • Balanced weight distribution (for single-handed operation)

Industry Applications & Case Studies

Aerospace & Defense

• Aircraft Maintenance Panels: FAA-approved quick-access systems reducing inspection time by 65%

• Military Vehicle Armor: MIL-SPEC compliant pins withstanding IED-level vibrations

• Spacecraft Components: NASA-qualified titanium versions for orbital applications

Heavy Equipment & Manufacturing

• Press Brake Tooling: 0.001" repeatability for precision metal forming

• Mining Equipment: Abrasion-resistant coatings lasting 3x longer in harsh conditions

• Assembly Line Robotics: Quick-change end effectors reducing downtime by 80%

Energy Sector Innovations

• Wind Turbine Hubs: Special torque-amplifying models enabling 15-minute blade changes

• Nuclear Reactor Maintenance: Radiation-resistant materials for safe containment access

• Oil Platform Safety: Explosion-proof designs meeting ATEX Zone 1 requirements

Transportation Breakthroughs

• High-Speed Rail: Vibration-damping systems maintaining alignment at 300+ mph

• EV Battery Pack Security: Crash-tested retention systems meeting FMVSS 305

• Marine Applications: Saltwater-proof 316 stainless versions with 25-year service life

Performance Advantages & Economic Benefits

Operational Superiority

• 90% Faster installation/removal vs traditional bolted connections

• 50% Reduction in worker fatigue-related errors

• 360° Accessibility: Operable from any angle in confined spaces

• IP69K Rated Versions: Withstand high-pressure, high-temperature washdowns

Financial Impact

• ROI in 6 Months: Through labor savings and reduced downtime

• 40% Lower total cost of ownership vs conventional fasteners

• 5-Year Warranty: On premium industrial-grade models

Installation & Maintenance Masterclass

Best Practices

1. Mounting Preparation:

   • Minimum 2x diameter edge distance recommended

   • 64 µin surface finish for optimal performance

2. Force Adjustment:

   • Hex-key adjustable spring tension (5-100N range)

   • Pre-load calibration for critical applications

3. Inspection Protocol:

   • Ultrasonic testing for high-cycle applications

   • Lubrication intervals based on operating environment

Failure Prevention

• Replace at first sign of handle play (>0.5mm movement)

• Never exceed maximum angular load specifications

• Use only manufacturer-approved lubricants

Innovation Roadmap

Next-Generation Developments

• Advanced Material Science:

  • Graphene-enhanced composites for extreme environments

  • Self-healing surface treatments

• Hybrid Functionality:

  • Integrated torque measurement capabilities

  • Combined electrical grounding/power transmission

Selection Guide & Configuration Matrix

Key Decision Factors

1. Load Requirements (static vs dynamic forces)

2. Environmental Conditions (chemicals, temperature, UV)

3. Operation Frequency (cycles per shift)

4. Safety Criticality (fail-safe requirements)

Application-Specific Recommendations

Market Trends & Future Outlook

Growth Drivers

• 18% CAGR in renewable energy applications

• New OSHA Ergonomics Standards boosting adoption

• Automation Wave increasing demand for quick-change systems

Emerging Applications

• Space tourism vehicle assembly

• Modular nuclear reactor maintenance

• Underwater drone quick-release systems

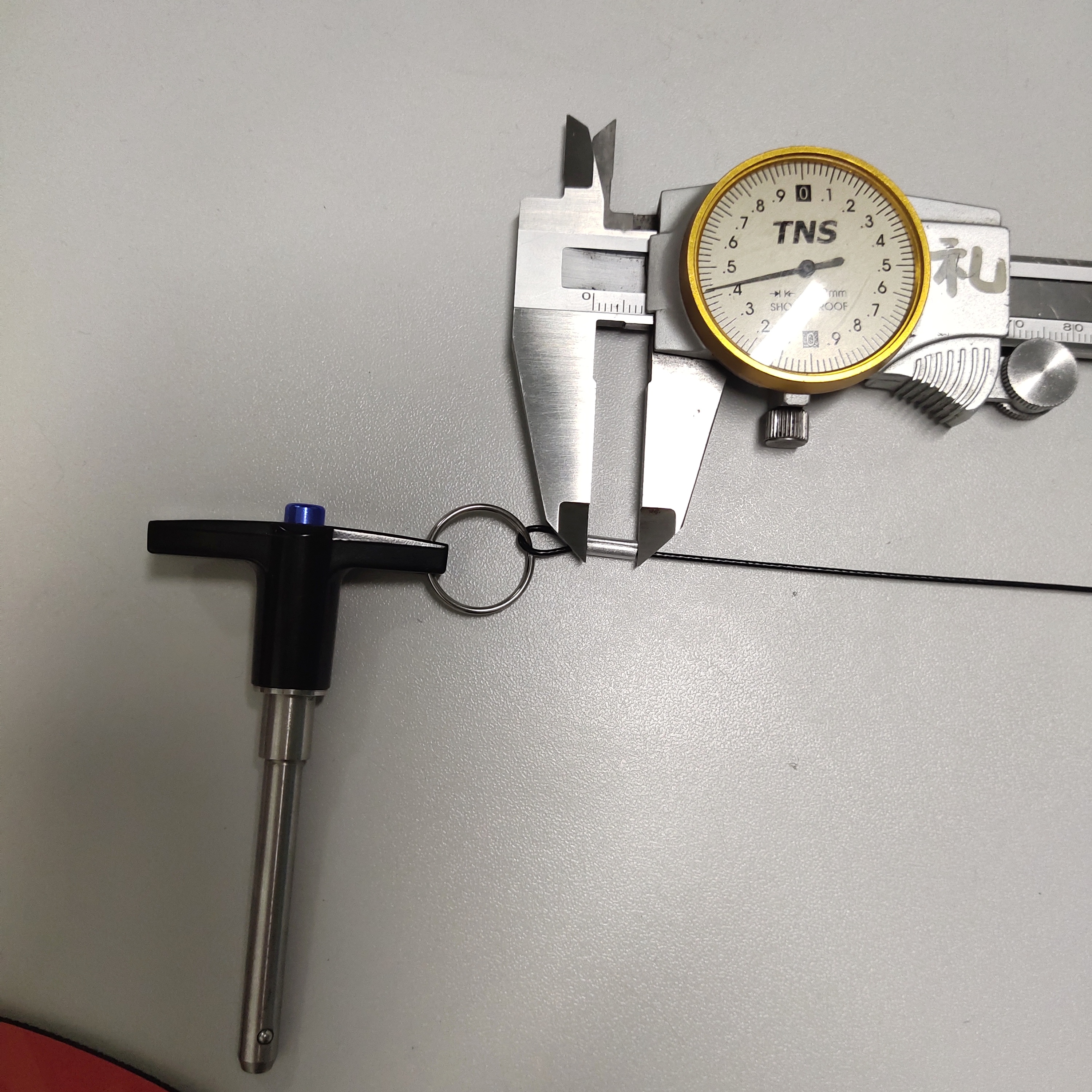

Discover our T-handle locking pins for secure and efficient fastening in industrial applications. Durable and reliable, they ensure smooth operation. Contact us for custom solutions tailored to your needs.

T-handle locking pins represent the pinnacle of fastening technology, delivering an unmatched combination of security, speed, and ergonomic design. As industrial requirements become increasingly demanding, these components are setting new standards for performance across virtually every sector. With continuous innovation in materials and smart technology integration, T-handle locking pins are poised to remain at the forefront of mechanical fastening solutions for decades to come.

Key Value Propositions:

1. Ergonomic Excellence: Scientifically designed to reduce worker fatigue by up to 60%

2. Unmatched Security: Positive locking mechanisms preventing accidental release

3. Material Innovation: Cutting-edge alloys and composites for extreme conditions

4. Smart Technology Ready: Prepared for Industry 4.0 integration

5. Global Compliance: Meets ASME, ISO, and military specifications
