Understanding the Versatility and Value of 5/16 Quick Release Pins

Introduction to Quick Release Pins

Quick release pins are essential fastening solutions widely utilized in industrial, commercial, and aerospace applications. Among the various sizes available, the 5/16 quick release pin is especially valued for its balance of strength, ease of use, and adaptability to mid-range load-bearing requirements. This article delves into the technicalities, design advantages, use cases, and selection considerations for 5/16 quick release pins, shedding light on their integral role in mechanical assemblies and fast-paced operations.

What is a 5/16 Quick Release Pin?

A 5/16 quick release pin is a mechanical fastener characterized by a 5/16-inch shaft diameter. It typically features a push-button or ball-lock mechanism that allows for rapid insertion and removal without the need for additional tools. This component is designed to facilitate quick alignment, secure locking, and swift disconnection of parts and panels, making it indispensable in applications that demand frequent assembly or disassembly.

Core Components and Working Mechanism

The pin’s core structure usually comprises the following:

• Pin Shaft: Precisely machined to a 5/16-inch diameter, commonly made of stainless steel or alloy steel for durability and corrosion resistance.

• Handle or Grip: Often T-shaped, L-handle, or button-top for ergonomic handling.

• Locking Mechanism: Usually a spring-loaded ball bearing system that expands when the pin is fully inserted, securely locking it into place.

• Release Mechanism: A simple press or pull mechanism retracts the locking balls, allowing the pin to be removed effortlessly.

This user-friendly design significantly reduces downtime and enhances productivity in time-sensitive environments.

Materials and Finishes

Material selection for 5/16 quick release pins plays a crucial role in ensuring performance under various operating conditions. Common materials include:

• Stainless Steel (304/316): Offers excellent resistance to rust and corrosion, ideal for marine or outdoor use.

• Alloy Steel: Provides superior strength, often treated with black oxide for enhanced wear resistance.

• Aluminum: Lightweight and suitable for low-load or weight-sensitive applications.

Finish options vary from passivated stainless to black oxide, anodized, and zinc-plated coatings, each chosen to enhance durability and aesthetic compatibility.

Typical Applications of 5/16 Quick Release Pins

These pins are widely adopted across industries, including:

• Aerospace and Aviation: Used in aircraft maintenance for quickly securing panels and access points.

• Automotive and Motorsports: Employed in racing car components for rapid assembly and disassembly.

• Construction Equipment: Provides quick alignment and secure locking in heavy machinery joints.

• Medical Devices: Ensures tool-free, hygienic fastening solutions in modular medical equipment.

• Recreational Vehicles and Marine: Common in folding mechanisms and adjustable parts.

In each of these settings, 5/16 quick release pins enable fast, tool-less changes, improving both safety and operational efficiency.

Advantages of Using 5/16 Quick Release Pins

1. Quick Installation and Removal: Tool-free operation saves valuable time during assembly and maintenance.

2. Secure Locking: Ball-lock or detent mechanisms prevent accidental disengagement under load.

3. Repeatability: Ideal for setups requiring repeated alignment and secure reattachment.

4. Versatility: Compatible with a broad range of hole diameters and thicknesses.

5. Durability: Built to withstand vibration, corrosion, and environmental exposure.

Types of 5/16 Quick Release Pins

There are various styles of 5/16 quick release pins to suit different needs:

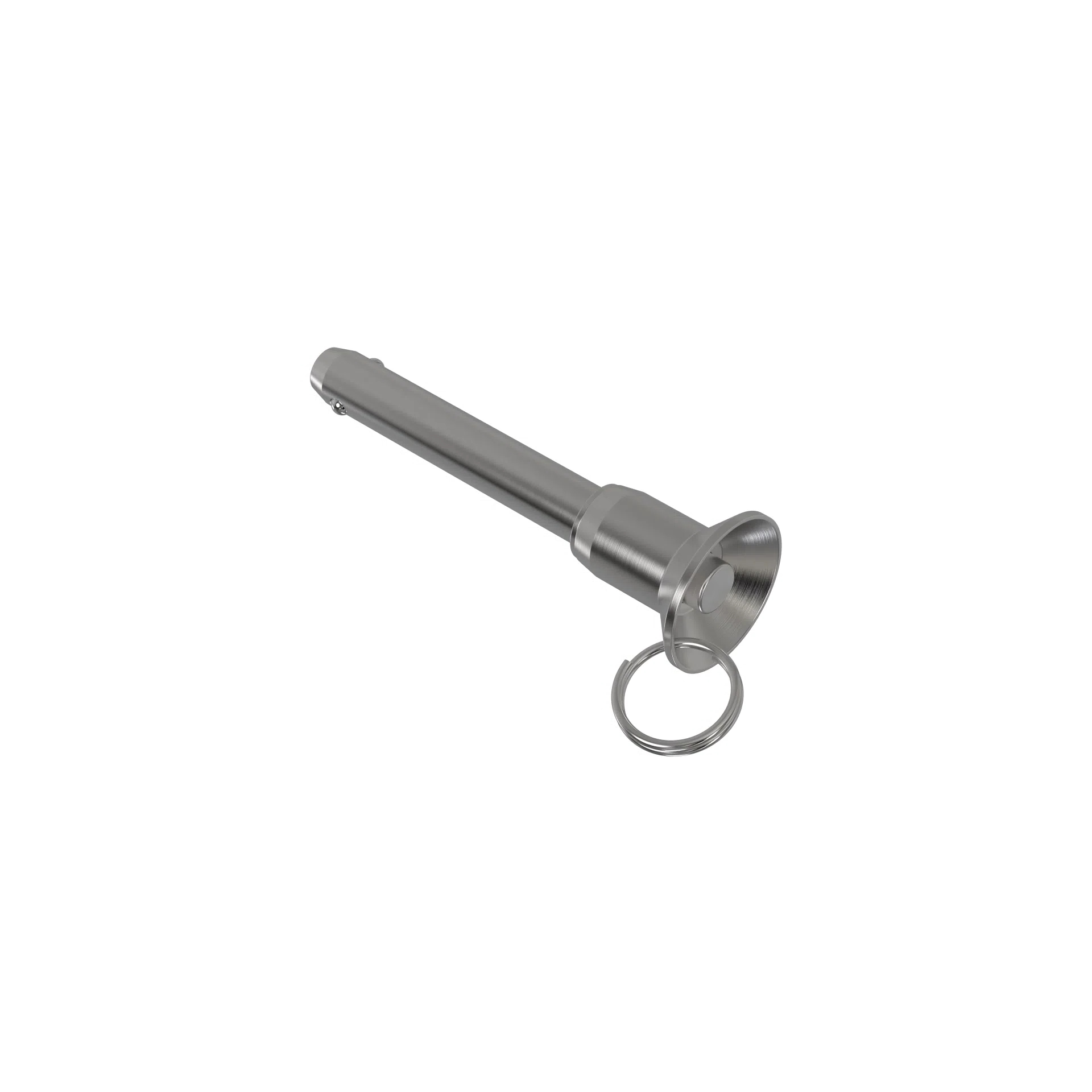

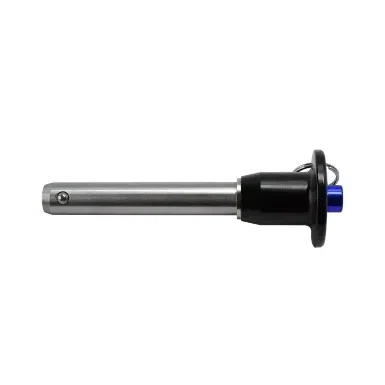

• Button Handle Quick Release Pins: Featuring a button for ball-retraction, ideal for confined spaces.

• T-Handle Pins: Offers improved grip for manual operation.

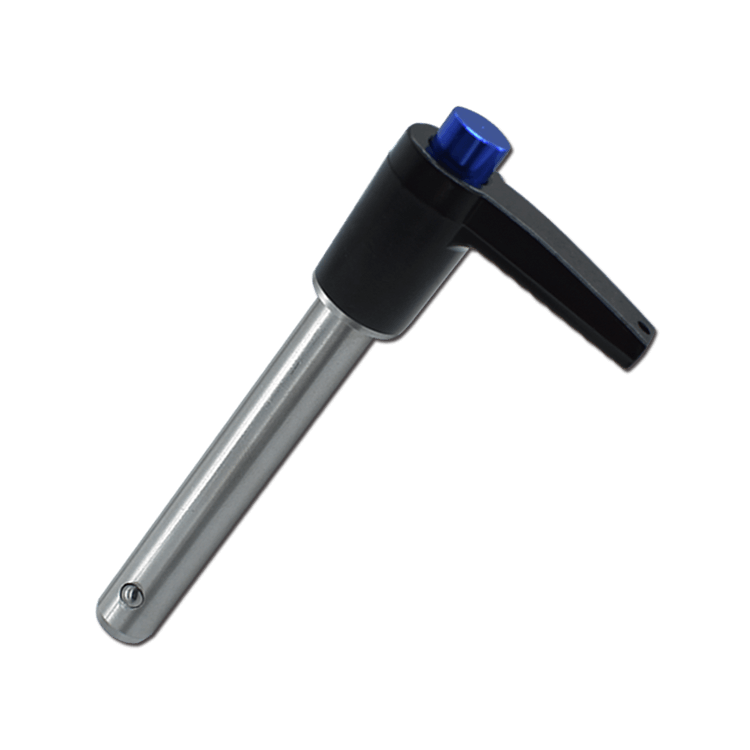

• L-Handle Pins: Commonly used where space constraints prevent a T-handle.

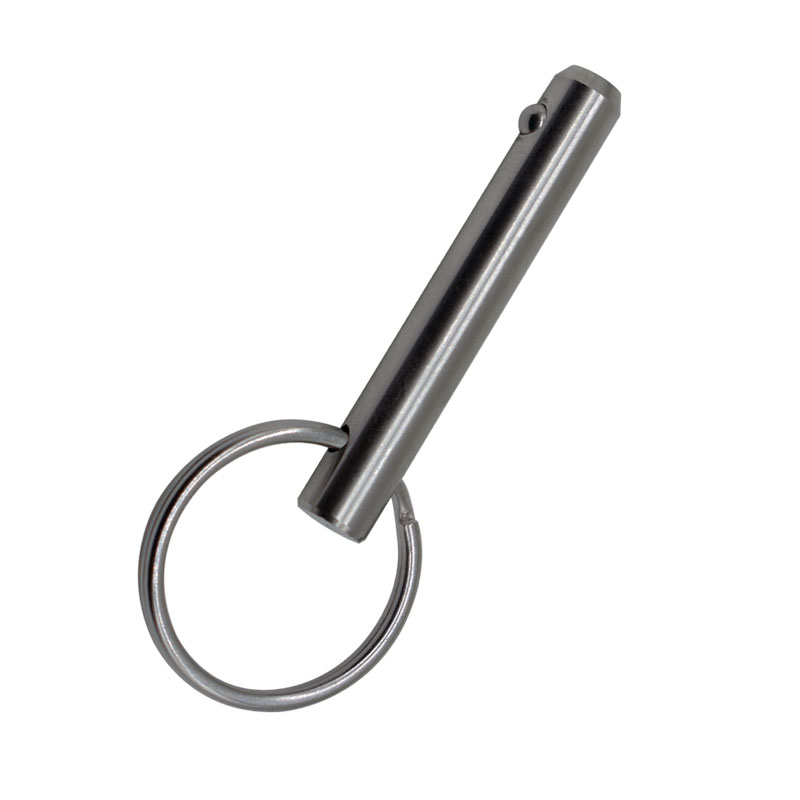

• Detent Pins: Feature a spring-loaded ball with minimal holding force, ideal for light-load applications.

• Military Standard (MS/NAS) Pins: Designed to strict aerospace specifications for high-reliability use.

Load Capacity and Strength Ratings

The load-bearing capability of a 5/16 quick release pin depends on the material, pin length, and locking design. Stainless steel versions can typically withstand shear loads upwards of 1,500–2,000 lbs, making them suitable for heavy-duty applications.

When selecting a pin, always consider:

• Shear strength

• Tensile strength

• Safety factor for critical operations

Standard Sizes and Dimensions

Below is a sample size chart for standard 5/16 quick release pins:

Custom lengths and configurations are available upon request to suit specific project requirements.

Installation Guidelines

Installing a 5/16 quick release pin is typically straightforward:

1. Align the components and insert the pin into the pre-drilled holes.

2. Push or rotate the handle until the locking balls engage.

3. Test for a secure hold.

To remove, simply press the release mechanism and slide the pin out. No tools or wrenches required.

Common Industries Using 5/16 Pins

• Defense and Military

• Robotics

• Renewable Energy (Solar panel frames)

• Industrial Automation

• Theater and Stage Equipment

Maintenance and Inspection

While quick release pins are low-maintenance, regular inspection helps prolong their service life. Key maintenance tips include:

• Clean regularly to prevent debris buildup.

• Lubricate ball-lock mechanisms periodically if used in dusty or high-cycle applications.

• Inspect for wear or deformation of the shaft and locking balls.

Customization Options

Many manufacturers, including Mocayo, offer customization:

• Knob Style and Color

• Pin Length and Diameter

• Material and Finish

• Safety Lanyards or Tethers

Custom branding or part marking can also be added for OEM integration.

Why Choose 5/16 Quick Release Pins from Mocayo?

Mocayo Precision Technology provides high-quality quick release pins engineered with precision, durability, and user convenience in mind. Our 5/16 quick release pins are:

• Manufactured to tight tolerances for reliable fit.

• Available in various styles and materials.

• Tested for mechanical strength and corrosion resistance.

• Backed by responsive support and fast delivery.

With years of expertise and commitment to quality, Mocayo serves clients in aviation, automotive, marine, and many more industries with dependable fastening solutions.

Enhance your hardware with 5/16 quick release pins, offering secure and rapid fastening for industrial, automotive, and machinery applications. Durable, reliable, and easy to use—perfect for efficient operations.

The 5/16 quick release pin is a vital, time-saving component in any field that demands rapid assembly and secure fastening. Its mechanical simplicity combined with high-performance materials makes it an ideal solution for a wide range of industrial applications. When reliability, speed, and ease of use are paramount, investing in quality 5/16 quick release pins is a practical and cost-effective choice.

For high-quality, customizable options, choose Mocayo – your trusted partner in precision components.
