Ball Lock Mechanism - Quick Release Locking Pin

The Ball Lock Mechanism, a mechanical structure enabling rapid engagement and reliable locking, has emerged as a key innovation in achieving these goals. Among its most practical applications is the Quick Release Locking Pin, a component now widely recognized as an essential fastener in the realm of intelligent manufacturing.

This article delves into the working principles and technical advantages of the Ball Lock Mechanism - Quick Release Locking Pin, while also highlighting the industry expertise and featured products of Mocayo Precision Technology Co., Ltd., a trusted name in precision fastening solutions.

    Click Here To See Our Products

1. Understanding the Ball Lock Mechanism & Quick Release Locking Pins

A Ball Lock Mechanism typically consists of a button, spring, and precision ball bearings. When integrated into a Quick Release Locking Pin, this structure allows for seamless insertion and removal without the need for tools. The basic principle is straightforward: pressing the button retracts the internal balls, enabling the pin to be inserted into a locating hole. Once released, the balls expand under spring pressure, locking the pin firmly in place and ensuring precise, secure connection.

Compared to traditional bolts or standard locating pins, the Ball Lock Pin reduces setup and takedown time, increases efficiency, and enhances operational convenience.

2. Product Highlights from Mocayo

As a manufacturer with deep expertise in precision mechanical components, Mocayo has been dedicated to the research and production of Quick Release Locking Pins and Ball Lock Mechanisms since 2016. Our mission is to provide global customers with high-quality, reliable quick-connection solutions.

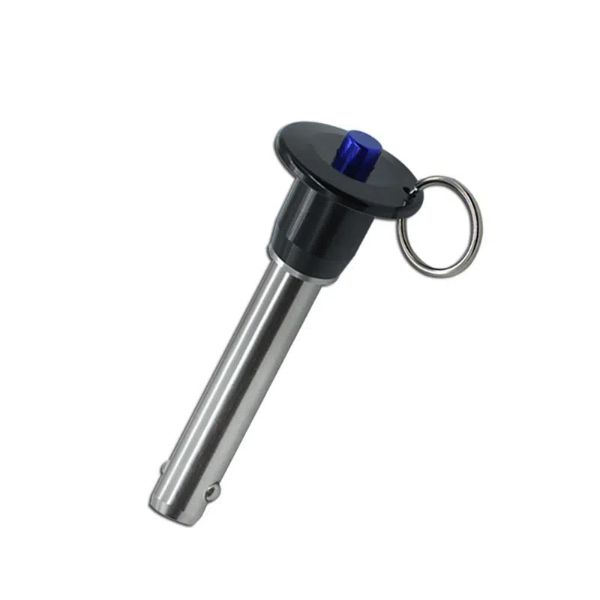

Our flagship MOX Ball Lock Pins are crafted using high-strength stainless steel, CNC-machined for precision, and finished with advanced anti-corrosion treatments. MOX feature a robust ball-lock structure designed for accuracy, ease of use, and long service life. Mocayo's pins are trusted by clients across the aerospace, medical device, automation, and mold assembly industries.

Click Here To See The Product

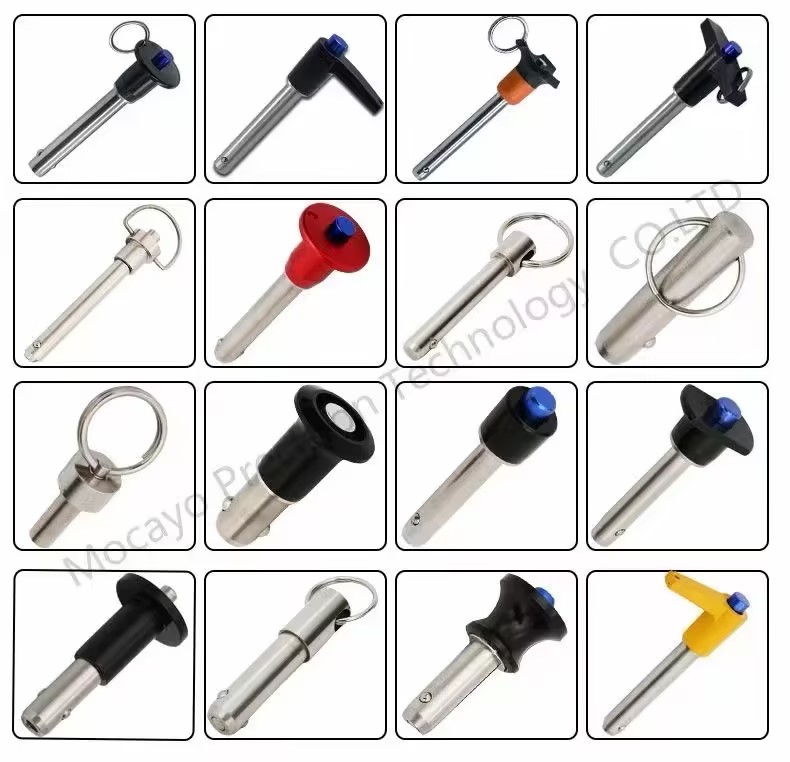

To meet diverse applications, we offer multiple handle styles—including T-handle, ring-handle, and L-handle variants—as well as a range of standard sizes. For custom requirements, we provide OEM/ODM services based on client drawings, delivering tailor-made Ball Lock Mechanism - Quick Release Locking Pin solutions.

3. Technical Advantages and Application Value

The true strength of the Ball Lock Mechanism - Quick Release Locking Pin lies in its ability to combine operational speed with exceptional safety.

Traditional pins often require wrenches or screwdrivers for use, while the Quick Release Locking Pin can be operated with a single finger. Its internal ball-lock system allows instant engagement and release—saving valuable time and minimizing effort.

Beyond speed, these pins are highly resistant to vibration and accidental disengagement. Even in environments with frequent mechanical motion, they maintain a secure lock. Thanks to high-precision manufacturing, the pins retain consistent fit even after repeated use, with no jamming or loosening between the balls and shaft.

In terms of applications, Ball Lock Pins are ideal for high-precision and high-frequency operations such as aircraft door mounting, robotic arm interfaces, quick-change fixtures, and conveyor system connections.

4. Selection Tips and Maintenance Guidelines

To ensure optimal performance of a Quick Release Locking Pin, choosing the right specification is crucial. Consider the following when selecting:

• Material and Load: Use 304 or 316 stainless steel for high-strength or corrosion-prone environments.

• Operating Frequency: For frequent operations, opt for pins with wear-resistant coatings and high-resilience springs.

• Environmental Factors: In high-temperature or corrosive conditions, surface treatment and sealing become critical.

Recommended maintenance practices include:

• Monthly Inspection: Check the responsiveness of the ball mechanism and ensure no jamming occurs.

• Cleaning: Regularly remove dirt or grease from the pin and ball areas to maintain smooth operation.

• Lubrication: Apply appropriate lubricants as needed to reduce friction and wear.

• Storage: For long-term storage, apply anti-rust oil and keep in a dry, controlled environment.

If you notice any looseness between the pin and the locating hole or increased resistance during operation, it is advisable to replace the component to ensure safety. At Mocayo, every Ball Lock Mechanism - Quick Release Locking Pin undergoes stringent quality control checks. We also offer personalized consultation and selection support to help you find the perfect fit for your application. Ball lock mechanism, quick release locking pin for fast, secure, and tool-free assembly in industrial, aerospace, and automation applications.

In the fast-paced world of industrial assembly, the Ball Lock Mechanism - Quick Release Locking Pin stands out as a superior choice for those seeking efficient, reliable, and secure fastening solutions. Whether for aerospace, automation, or high-precision manufacturing, this compact yet powerful mechanism continues to redefine what’s possible in rapid connection systems.

Partnering with Mocayo Precision Technology means equipping your business with top-tier components that deliver on every front—from durability and accuracy to speed and ease of use. Let your assembly process benefit from the next level of fastening technology with Mocayo’s Ball Lock Mechanism - Quick Release Locking Pin.
