Understanding Ball Locking Bolts: Design, Applications, and Industrial Impact

Introduction to Ball Locking Bolts

Ball locking bolts are precision-engineered fastening components designed for secure and rapid fastening in high-demand environments. Known for their reliability, strength, and ease of use, these bolts incorporate a unique ball detent mechanism that ensures a positive lock and quick release when needed. They are widely used across aerospace, automotive, industrial automation, medical devices, and military equipment sectors due to their safety, durability, and efficiency.

What Are Ball Locking Bolts?

Ball locking bolts, sometimes referred to as quick-release or push-pull locking bolts, consist of a central shaft, a spring-loaded plunger mechanism, and locking balls that engage into a groove or detent when the bolt is inserted. Once engaged, the balls expand outward to hold the bolt firmly in place. A press of the button or pull of the handle retracts the balls for a quick release. This clever mechanism allows for tool-less installation and removal.

Key Components and Working Mechanism

• Main Body: Typically made from stainless steel, aluminum, or carbon steel, offering high tensile strength.

• Ball Bearings: Hardened steel or stainless steel balls that expand to lock the bolt in place.

• Spring Mechanism: A spring housed within the bolt shaft controls the expansion and retraction of the locking balls.

• Actuator (Button or Handle): Operated manually to release the lock.

When the actuator is pressed, the spring compresses and retracts the balls inward, allowing for disengagement. Once released, the spring pushes the balls back into position for the next lock.

Materials and Surface Treatments

To ensure long service life and superior corrosion resistance, ball locking bolts are made from:

• Stainless Steel (AISI 304, 316): Ideal for harsh environments and marine applications.

• Carbon Steel (with Zinc/Nickel Plating): Provides high strength with moderate corrosion resistance.

• Titanium or Aluminum Alloys: Used where weight savings are critical, such as in aerospace.

Surface treatments may include:

• Passivation

• Black Oxide Coating

• Zinc or Nickel Plating

• Anodizing (for aluminum variants)

Advantages of Ball Locking Bolts

• Fast Installation & Removal: Tool-less engagement saves significant labor time.

• Secure Locking Mechanism: Reliable hold under vibration and dynamic loads.

• Corrosion Resistance: Excellent performance in outdoor and industrial settings.

• Reusable Design: Engineered for repeated use without performance degradation.

• Customization: Available in various sizes, lengths, ball quantities, and handle types.

Applications Across Industries

Ball locking bolts are integral to several high-precision and high-efficiency applications:

Aerospace

Used in aircraft panels, maintenance doors, and component mounting, where speed and safety are critical.

Automotive

Applied in race cars and commercial vehicles for quick part replacement and secure assembly.

Manufacturing

Ideal for jigs, fixtures, and modular assembly lines where components are frequently repositioned.

Medical Equipment

Used in diagnostic devices, surgical tables, and adjustable frames due to their precision and hygiene-friendly materials.

Military and Defense

Reliable in rugged environments for equipment that requires fast setup and teardown under pressure.

Types of Ball Locking Bolts

Several variants are available, each tailored for specific applications:

• Button Head Ball Locking Bolts

• T-Handle Ball Locking Bolts

• L-Handle and Ring Handle Types

• Detent Pin Style Ball Bolts

• Safety Locking Variants with Push-to-Release

Each type supports different pulling forces, safety mechanisms, and ergonomic preferences.

How to Choose the Right Ball Locking Bolt

When selecting a ball locking bolt, consider:

• Shear and tensile load requirements

• Environmental exposure (chemical, temperature, moisture)

• Actuation frequency

• Size and mounting tolerance

• Ergonomic and operational ease

Maintenance and Durability

Proper maintenance ensures long-term reliability. Key practices include:

• Regular cleaning to prevent debris from interfering with ball action

• Lubrication with compatible oils to prevent friction wear

• Inspection for spring integrity and ball deformation

Most ball locking bolts are rated for thousands of cycles, especially those made with high-grade stainless steel.

Compliance with International Standards

Many ball locking bolts conform to:

• ISO 898

• DIN 11023

• RoHS and REACH Directives

• ANSI/ASME B18 Standards

These standards ensure dimensional consistency, material quality, and mechanical performance.

Custom Engineering Options

Manufacturers like Mocayo Precision Technology Co., Ltd. offer custom design services for:

• Unique head configurations

• Special lengths and ball patterns

• High-temperature or chemical-resistant materials

• Integrated lanyards or safety chains

Ball Locking Bolt Standard Sizes

Note: Dimensions can be customized according to application needs.

Recent Innovations in Ball Locking Bolts

Modern advancements include:

• Anti-tamper designs for defense and high-security equipment.

• Smart tracking with embedded RFID chips for inventory management.

• Color-coded handles for rapid identification on production floors.

Sustainability in Manufacturing

Many producers now follow sustainable practices, such as:

• Use of recyclable materials

• Environmentally friendly coatings

• ISO 14001 environmental certifications

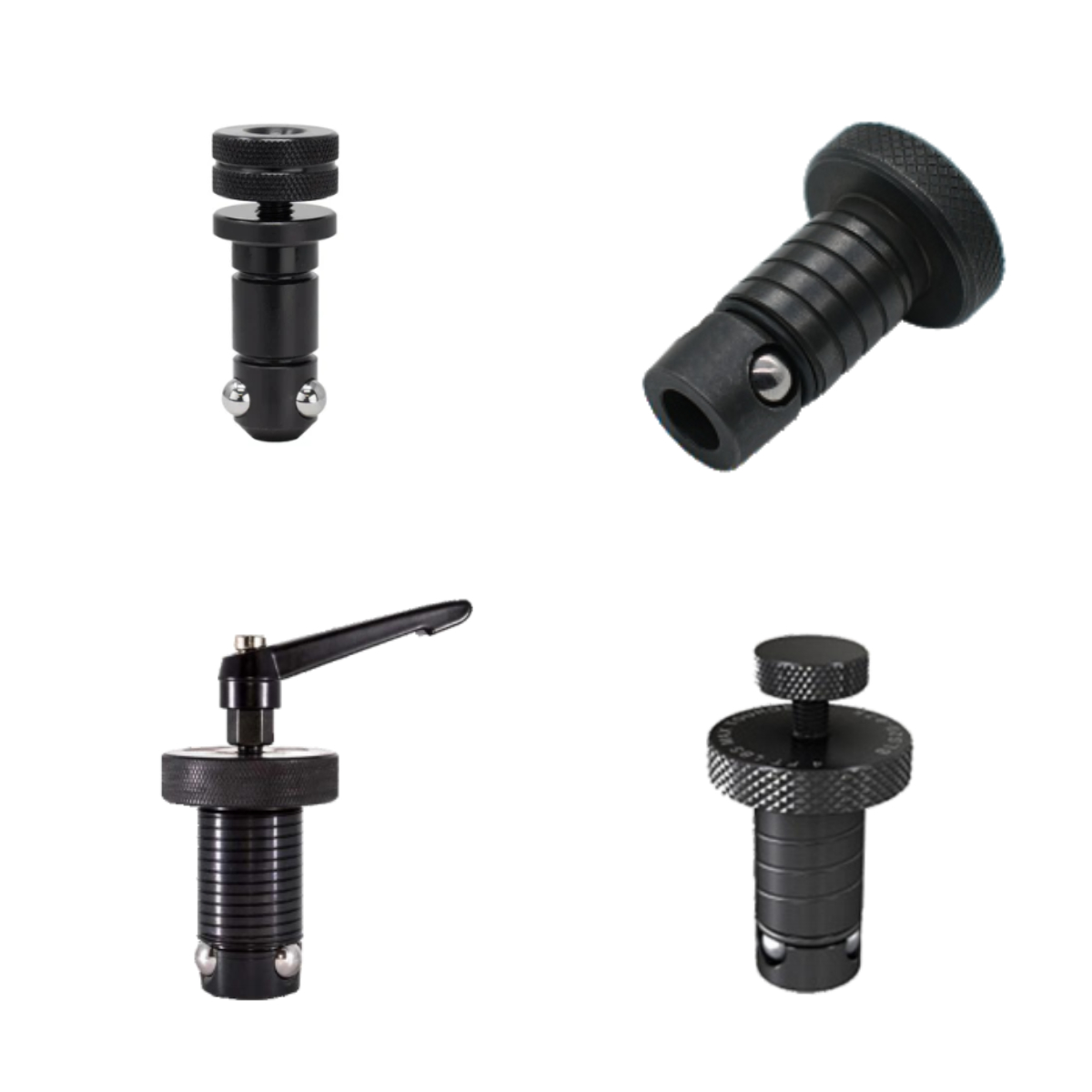

Enhance your hardware with ball locking bolts, offering secure and precise fastening for industrial, automotive, and machinery applications. Durable, reliable, and easy to use—perfect for efficient and seamless operations.

Ball locking bolts represent the pinnacle of modern fastening technology—combining precision engineering, ergonomic design, and unmatched usability. Whether in high-speed automotive applications or high-stakes aerospace settings, their quick-release and secure locking mechanisms make them indispensable. As industries continue to demand faster, smarter, and more reliable solutions, the role of ball locking bolts will only become more critical in the future of advanced manufacturing.
