Understanding Ball Spring Plungers: A Vital Component in Industrial Positioning

Introduction to Ball Spring Plungers

Ball spring plungers are small but essential components used widely across industrial, mechanical, and engineering fields. These devices provide a reliable method for indexing, positioning, and securing components in a broad range of applications. The core of their utility lies in their spring-loaded mechanism that applies consistent pressure to a ball or plunger tip.

Typically made from materials like stainless steel, carbon steel, or thermoplastics, ball spring plungers are valued for their compact size, ease of installation, and precision in repeated engagement and disengagement actions.

Design and Construction

Ball spring plungers are composed of three primary parts:

Housing (body): This encases the internal spring and ensures a durable external structure.
Spring: A coiled mechanism that provides the necessary tension or compression.
Ball (or plunger tip): The point of contact that interfaces with the target surface or detent.

The tip protrudes from the housing and retracts under pressure. Once the force is removed, the internal spring returns the ball to its original position. This action enables reliable indexing in jigs, fixtures, dies, and assembly equipment.

Material Selection for Optimal Performance

Choosing the right material is critical in environments where wear, corrosion, or heat resistance are considerations:

Stainless Steel (e.g., 303, 304, 316): Offers corrosion resistance, ideal for marine, food, or medical industries.
Steel with Black Oxide Finish: Cost-effective, suitable for general applications where rust is less of a concern.
Plastic or Nylon Bodies with Stainless Balls: Lightweight and non-magnetic options for electronic or low-load assemblies.

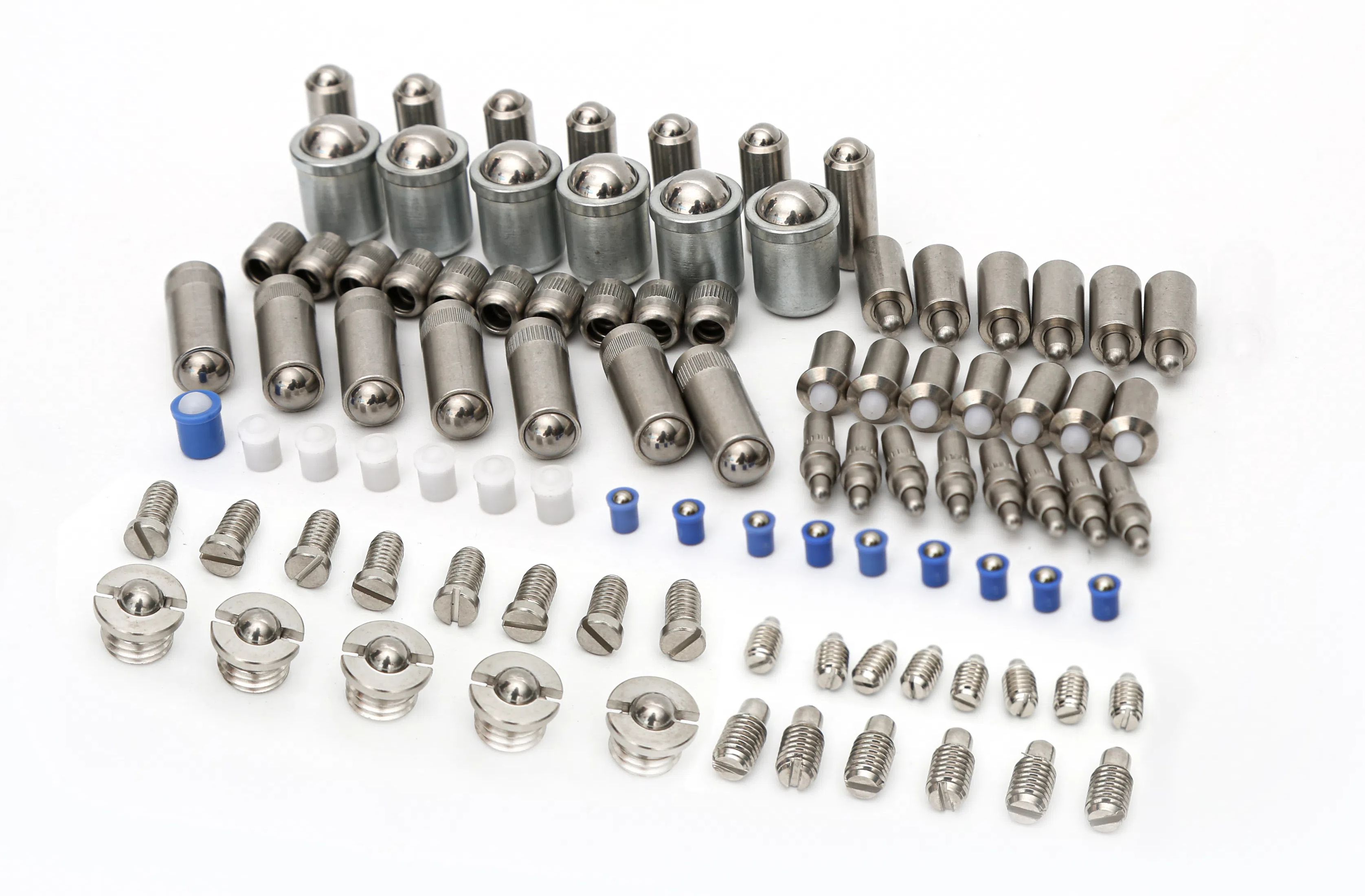

Types of Ball Spring Plungers

Ball spring plungers come in various styles to accommodate different installation and performance needs:

Threaded Ball Plungers: Designed for secure mounting using threaded holes.

Press-Fit Ball Plungers: Ideal for applications where thread cutting is not feasible; pushed directly into a bore.

Hexagon Socket Ball Plungers: Installed with a hex wrench; allow for adjustable torque control.

Double Ended Ball Plungers: Feature a slotted head for screwdriver installation, commonly used for quick setup.

Applications Across Industries

The versatility of ball spring plungers allows them to be used in:

Tooling and fixture design: For locating and indexing workpieces.
Mechanical assemblies: Securing movable parts in gear housings or levers.
Consumer electronics: Used in enclosures or movable lids.
Medical devices: As detents or push-lock mechanisms.
Automotive: In latch mechanisms and removable covers.

Installation Tips and Best Practices

Installing ball spring plungers requires attention to thread depth, material compatibility, and desired spring force. Key tips include:

Use thread-locking compounds if vibration may loosen the part.
Avoid over-torquing, which may damage the spring or deform the ball tip.
For press-fit styles, maintain tight bore tolerances to prevent loosening under stress.

Benefits of Using Ball Spring Plungers

Consistent Performance: Delivers repeatable force and alignment.
Compact Design: Minimal space needed, ideal for tight assemblies.
Ease of Use: Simple to install and replace.
Versatility: Suitable for both static and dynamic applications.

Comparison with Other Plungers

Unlike indexing plungers or knob-actuated pins, ball spring plungers offer a hands-free engagement, ideal for situations where space is limited or automation is desired. Their simplicity is both their strength and limitation—they are not ideal where positive locking is required.

Standards and Dimensional Considerations

Many manufacturers adhere to DIN and ISO standards for ball plungers. Common parameters include:

Thread Size: M3 to M12, or imperial equivalents.
Overall Length: 8mm to 50mm, depending on load requirements.
Spring Force: Light, medium, and heavy, measured in Newtons or pounds-force.
Material Code: Indicates the body and ball combination (e.g., SS body with SS ball, SS ball with plastic body).

Note: A detailed chart can be included upon request to match your specific marketing or cataloging need.

Customization Options

At companies like Mocayo Precision Technology Co., Ltd, ball spring plungers can be customized in terms of:

Thread type (metric, UNC, UNF)
Spring force calibration
Corrosion-resistant coatings
Laser-marked identification
Color-coded caps for quick identification

These options allow businesses to tailor the plungers to specific machinery or safety standards.

Market Trends and Growth Drivers

With the rise of automation and precision engineering, demand for miniature components like ball spring plungers continues to grow. Key market trends include:

Miniaturization: As electronics and mechanical systems shrink, so does the need for small, powerful plungers.
Smart manufacturing: Integration with sensors or electronics for signal feedback.
Sustainability: Eco-friendly materials and coatings are gaining traction in EU and US markets.

Challenges and Solutions

Some common issues faced by users include:

Wear and fatigue: Over time, spring tension may weaken. Solution: choose high-quality stainless or pre-hardened springs.
Corrosion in harsh environments: Use 316-grade stainless or nickel-plated options.
Difficult replacement: Opt for plungers with standardized sizing for easy sourcing.

Why Ball Spring Plungers Matter

Ball spring plungers are more than just minor fasteners—they are integral components that enhance the reliability, safety, and efficiency of countless assemblies across industries. Their adaptability, affordability, and precision make them a go-to solution in both high-tech and traditional manufacturing environments.

By choosing the right material, type, and specification, engineers can ensure long-term performance and simplify both design and maintenance workflows.
