Spring Loaded Quick Release Pins: A Comprehensive Guide

Introduction

Spring-loaded quick release pins are essential fastening components used across various industries for secure, efficient, and tool-free assembly and disassembly. These pins incorporate an internal spring mechanism that allows for easy insertion and removal while maintaining a strong and reliable connection. They are widely used in aerospace, marine, automotive, and industrial applications where quick and secure fastening is required.

This article provides a detailed overview of spring-loaded quick release pins, including their features, applications, benefits, and standard specifications.

What Are Spring Loaded Quick Release Pins?

Spring-loaded quick release pins are cylindrical fasteners with a built-in spring mechanism that engages a locking system when inserted into a hole or mounting bracket. The spring action ensures that the pin remains securely in place while allowing for effortless removal when necessary.

These pins are typically constructed from high-strength materials such as stainless steel, carbon steel, or aluminum to ensure durability, corrosion resistance, and optimal load-bearing capacity.

Key Features and Benefits

• Spring Mechanism for Quick Operation: Provides easy insertion and removal without additional tools.

• Secure Locking System: Ensures the pin remains in place under vibration and mechanical stress.

• High Durability and Strength: Manufactured from robust materials to withstand industrial demands.

• Corrosion Resistance: Ideal for marine, aerospace, and other harsh environments.

• Versatility: Suitable for a wide range of applications including machinery, vehicles, and construction projects.

Applications of Spring Loaded Quick Release Pins

1. Aerospace and Aviation

Used in aircraft maintenance, structural assembly, and cargo handling systems where quick and reliable fastening is critical.

2. Marine and Offshore Equipment

Preferred in shipbuilding, deck machinery, and mooring systems due to their corrosion-resistant properties.

3. Automotive and Motorsport

Essential for quick adjustments in seat mounting, suspension components, and removable body panels.

4. Industrial Machinery and Manufacturing

Commonly used in conveyor systems, tooling setups, and automated machinery for rapid maintenance and adjustments.

5. Construction and Heavy Equipment

Ideal for scaffolding, lifting equipment, and temporary structural assemblies where frequent reconfiguration is needed.

Standard Specifications and Size Chart

Spring-loaded quick release pins come in various sizes to accommodate different industrial needs. Below is a standard size chart:

Material Selection and Environmental Considerations

Spring-loaded quick release pins are made from a variety of materials to meet different operational requirements:

• 304 Stainless Steel: General corrosion resistance and strength.

• 316 Stainless Steel: Superior corrosion resistance for marine and chemical environments.

• Carbon Steel: High tensile strength with protective coatings.

• Aluminum: Lightweight and corrosion-resistant for aerospace applications.

How to Choose the Right Spring Loaded Quick Release Pin

When selecting the appropriate pin, consider the following factors:

1. Load Capacity: Ensure the pin can withstand the required force.

2. Pin Diameter and Length: Match the dimensions to your application.

3. Material and Finish: Choose corrosion-resistant materials if used in harsh environments.

4. Handle Type: Select a handle design that suits your operational needs.

5. Environmental Conditions: Consider coatings or treatments for extended durability.

Market Trends and Future Developments

The demand for spring-loaded quick release pins is growing due to:

• Advancements in Manufacturing: Improved precision and durability.

• Smart Fastening Technologies: Integration of RFID and sensors for automated applications.

• Sustainability Initiatives: Increased use of eco-friendly materials and coatings.

• Expansion in Renewable Energy: Greater use in wind turbines and solar panel assemblies.

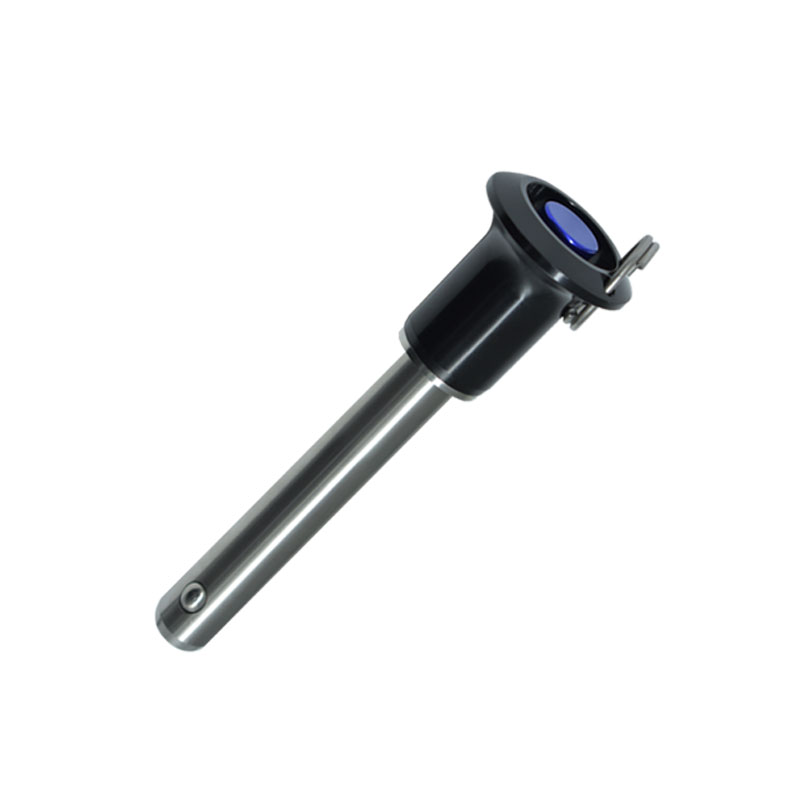

Discover our spring loaded quick release pins for secure and efficient fastening in industrial applications. Durable and reliable, they ensure smooth operation. Contact us for custom solutions tailored to your needs.

Spring-loaded quick release pins provide a reliable, efficient, and durable fastening solution for various industries. Their tool-free operation, strength, and versatility make them an essential component in aerospace, automotive, marine, industrial, and construction applications.

By understanding their specifications, materials, and operational requirements, engineers and manufacturers can select the right spring-loaded quick release pins to optimize performance and safety in their projects.
