Heavy-Duty Ball Lock Pins Explained

For engineers and technicians demanding reliable, high-strength connections under pressure, heavy-duty ball lock pins are indispensable workhorses. But what exactly makes them "heavy-duty," and how do they function? This article breaks down these robust fasteners.

Unlike standard pins, heavy-duty ball lock pins are engineered for extreme loads and punishing environments. They feature significantly thicker body diameters, larger spring-loaded detent balls, and reinforced springs compared to lighter variants. Constructed from high-grade alloy steels, hardened stainless steel, or other durable materials, they offer superior shear and tensile strength, resisting deformation and wear over repeated cycles. Their defining characteristic is the positive locking mechanism: spring-loaded balls protrude from the pin body, snapping securely into a mating hole's groove or recess upon insertion, creating a vibration-resistant, fail-safe hold.

Heavy-Duty Ball Lock Pins Explained: Master their function! See how spring-loaded balls create fail-safe, precision locking for machinery, construction, and transport. Durable, fast, and utterly dependable.

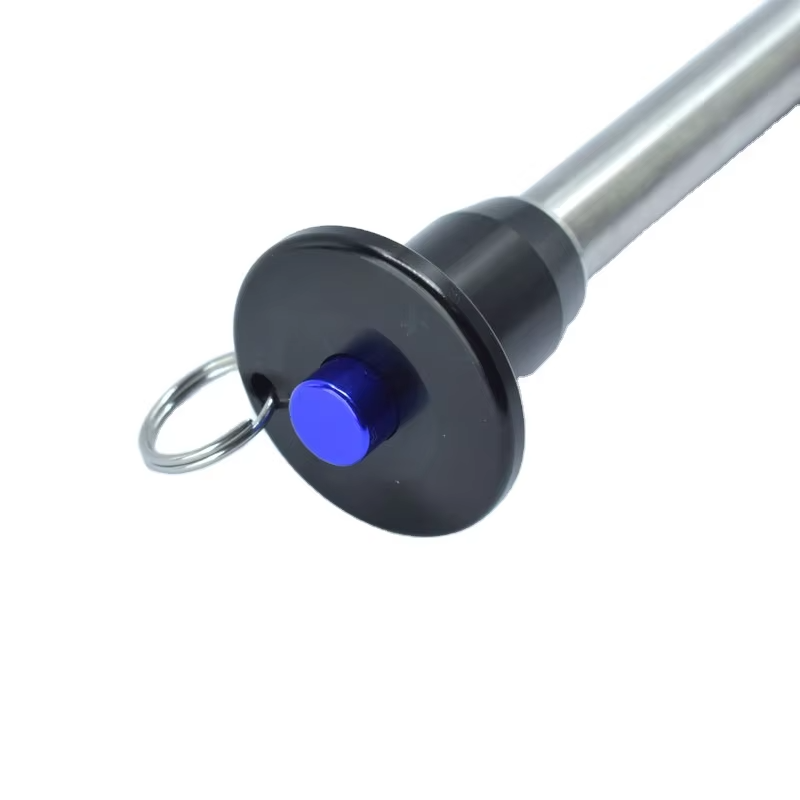

Ball Lock Quick Release Pin

The true power of these ball lock pins lies in their combination of brute strength and operational simplicity. Despite their rugged build, they maintain the core benefit: rapid, one-handed engagement and release. Pulling the knurled ring retracts the balls, allowing instant pin removal. This makes them ideal for critical applications requiring both unwavering security and frequent access – think securing heavy machinery guards, locking large jigs and fixtures, connecting structural components in material handling, or pinning attachments on earthmoving equipment. Their reliability stems from proven mechanical design, not complexity.

Unlock the power of heavy-duty ball lock pins! Explained simply: their rugged design ensures rapid, secure connections in tough environments. Trusted for high-stakes industrial & equipment use.

L-Handle Quick Release Pin

Selecting the right heavy-duty pin involves considering load requirements, environmental factors (corrosion resistance), required pin diameter and length, and the specific groove engagement needed. Leading manufacturers offer these pins compliant with stringent standards like DIN 6325 or ANSI, ensuring consistent quality and performance. When failure isn't an option under heavy stress, heavy-duty ball lock pins deliver the secure, quick-connect solution trusted by industry.
