How to Cut Stainless Steel – Mocayo Indexing Plunger Mechanism

Key Process Insights for Cutting Stainless Steel

Stainless steel is widely known as a difficult material to machine, requiring precise control and professional technique. With years of experience, Mocayo has developed advanced solutions and refined strategies on how to cut stainless steel efficiently and precisely. Learn how to cut stainless steel effectively using the right tools. Discover tips for precision machining and explore the role of an indexing plunger.

Material Challenges in Stainless Steel Cutting

• High hardness (HRC 20–45) leads to rapid tool wear.

• Severe work hardening — hardened layers can reach up to 0.1mm deep.

• Poor thermal conductivity, only one-third that of carbon steel, causes heat distortion.

• Built-up edge formation affects surface finish and tool life.

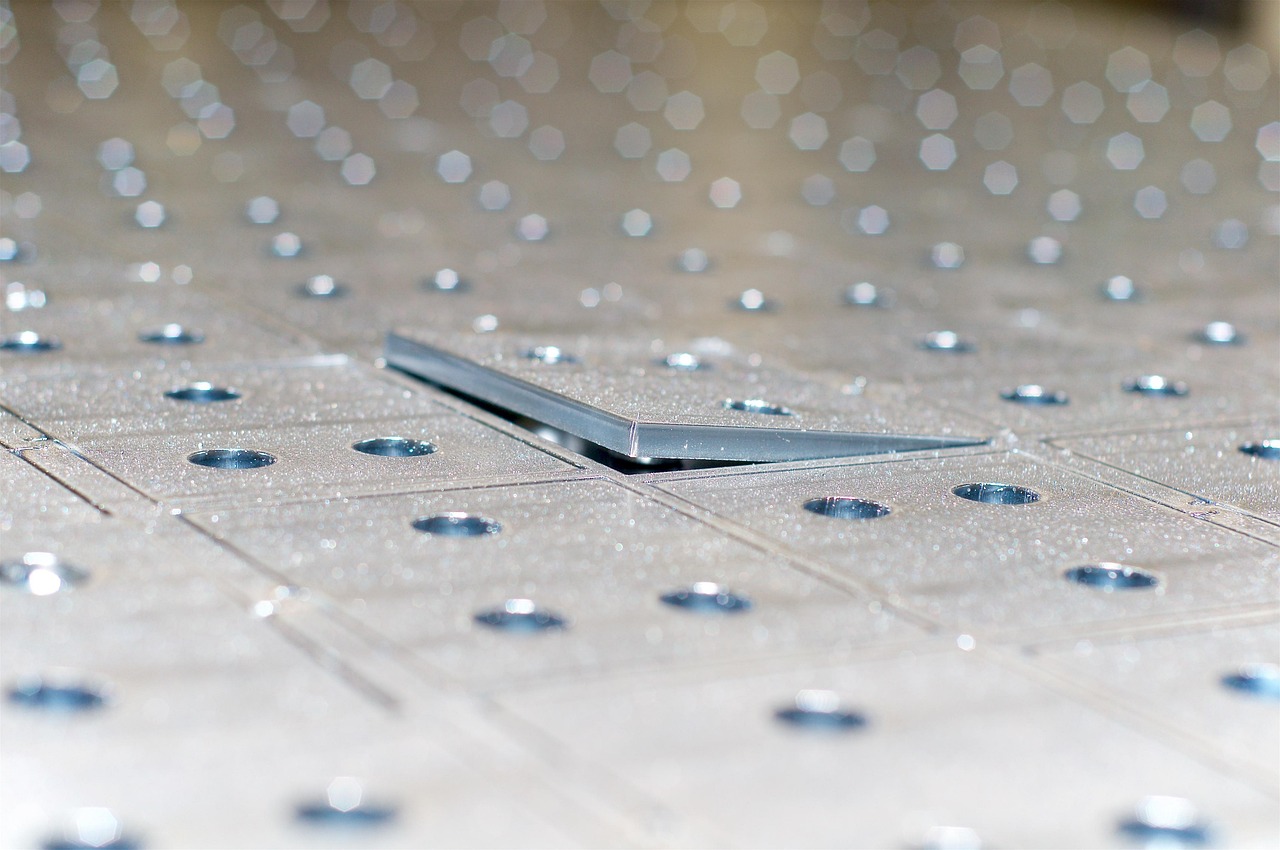

Process Method Comparison for Cutting Stainless Steel

• CNC Cutting: Highest precision (±0.02mm); ideal for intricate CNC parts.

• Laser Cutting: High speed (1.2m/min for 8mm sheets), but large heat-affected zones.

• Waterjet Cutting: No thermal distortion, but higher operating costs.

To master how to cut stainless steel, selecting the right method based on part geometry and surface requirements is crucial.

Optimized Cutting Parameters for Stainless Steel

• Spindle speed: 800–1200 rpm for 304 stainless steel

• Feed rate: 0.05–0.15 mm/tooth

• Cutting depth: 0.1–0.3 mm for finishing

• Coolant pressure: ≥50 bar for heat management and chip evacuation

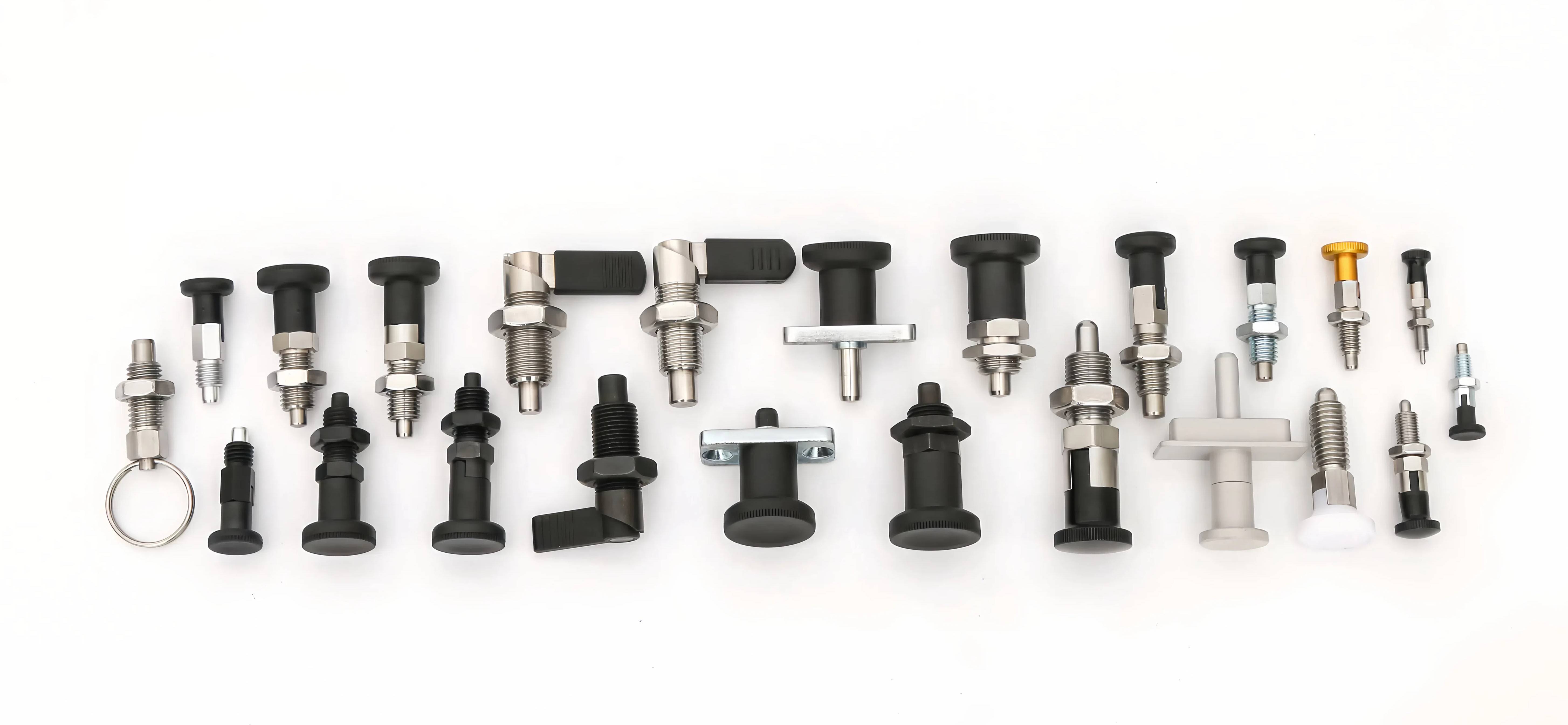

Mocayo’s Precision Indexing Plunger Solution

Positioning stainless steel parts accurately during machining can be difficult. Mocayo’s custom-engineered indexing plunger series provides high-performance solutions to this challenge.

Core Technologies of Mocayo Indexing Plunger

• Positioning accuracy: ±0.01mm (repeatability ±0.005mm)

• Load capacity: Static 3000N / Dynamic 1500N

• Material: SCM440 heat-treated alloy steel (HRC 58–62)

• Surface finish: Hard chrome plating (15–20μm) or TiN coating

These indexing plungers are ideal for stainless steel applications, providing repeatable positioning even under harsh coolant conditions.

Click Here See The Product

Advantages of Using Mocayo Indexing Plungers for Stainless Steel CNC Parts

• High rigidity design: Reduces vibration during cutting

• Precision tapered fit: Ensures consistent alignment

• Corrosion-resistant materials: Suitable for aggressive environments

• Quick-change capability: Boosts productivity during production shifts

Custom Options Available

• Special sizes from Φ3–Φ25mm

• Heavy-duty designs up to 5000N load

• High-temperature versions (up to 200°C)

• Corrosion-resistant coatings for acidic applications

Core Machining Techniques for Stainless Steel

Mocayo engineers have distilled four key techniques on how to cut stainless steel effectively in CNC environments:

Tooling Strategy

• Roughing: TiAlN-coated carbide tools

• Finishing: CBN or ceramic tools

• Deep holes: Internal coolant drills

Cooling & Lubrication System

• High-pressure coolant (70–100 bar): Prevents overheating and aids chip removal

• Mist cooling: Minimizes thermal distortion

• Stainless steel-specific cutting fluids: Helps suppress work hardening

Process Control

• Use shallow cuts with higher feeds to minimize tool pressure

• Avoid cutting into work-hardened areas

• Optimize tool paths to reduce air-cutting and idle movement

Inspection Standards

• Dimensional tolerances: Verified with coordinate measuring machines (CMM)

• Surface roughness: Measured to achieve Ra 0.8 or better

• Metallurgical analysis: Ensures no overheating or structural compromise

Choosing the Right Stainless Steel CNC Machining Partner

To ensure success in stainless steel machining and positioning, consider these four aspects:

1. Equipment Capability

• Spindle power ≥15kW

• Positioning accuracy ≤0.01mm over 300mm

• Equipped with high-pressure coolant systems

2. Process Expertise

• Access to a stainless steel machining database

• Tool wear tracking systems

• Thermal distortion management

3. Indexing System Requirements

• Rigidity: To withstand cutting forces

• Accuracy: Ensures precise repositioning

• Durability: Long-term operational stability

• Ease of use: Facilitates quick tool changes and setup

4. Cost Control

• Optimized process routes reduce per-part costs

• Extended tool life with correct parameters

• Competitive pricing for batch production

Why Choose Mocayo

With over 10 years of experience in stainless steel part manufacturing, Mocayo offers full-process services from prototyping to mass production. Our high-performance indexing plungers have been successfully applied in medical devices, food machinery, and chemical equipment industries.
