How To Find Out Thread Size – Different Thread Size of Indexing Plunger
Accurate Thread Sizing and Indexing Plunger Selection Guide

1. Thread Size Measurement Techniques and Standard Systems

In the field of precision mechanical assembly, how to find out thread size accurately is essential to ensuring both the positioning accuracy of the indexing plunger and the reliability of the equipment. According to ISO 68-1 standards, a complete thread specification should consist of three core parameters: nominal diameter, thread pitch, and tolerance class.

Data from the Mocayo Quality Center reveals that scientific measurement methods can improve thread fit precision by over 35%. For routine inspections, the combined use of thread ring gauges and plug gauges is highly recommended, with measurement errors controlled within 0.01mm.

Additionally, it's critical to consider the thermal expansion coefficients of various materials when determining thread size. For example, steel threads have a coefficient of 11.5×10⁻⁶/°C. A 10°C temperature fluctuation can lead to dimensional deviations of 0.015mm per 100mm of thread length.

For high-precision applications, coordinate measuring machines (CMM) are ideal. Our internal tests show that a CMM can achieve repeatability within ±0.002mm when measuring pitch diameter. This allows for accurate assessment of:

• Major and minor diameter tolerances (ISO 724)

• Accumulated pitch error (≤0.02mm/25mm)

• Thread angle deviation (within ±30′)

To meet demands for on-site identification, Mocayo developed a portable thread tester that determines how to find out thread size within 30 seconds. After implementation by an automotive parts supplier, their inspection efficiency improved by 300%, and the defect outflow rate dropped below 0.1%.

2. Mocayo’s Precision Threaded Indexing Plunger Solutions

Standard Threaded Indexing Plunger Series

MS2171 Metric High-Precision Type (M4–M20):

• SCM435 alloy steel, vacuum heat-treated (HRC58–62)

• Thread tolerance: ISO 965-1 class 4h, fit clearance ≤ 0.015mm

• Surface: hard chrome plated (0.015–0.025mm)

Case study: A CNC rotary table using the M12 indexing plunger achieved repeatable positioning accuracy of ±0.008mm.

MS1171 Inch Heavy-Duty Type (1/4"–3/4" UNC):

• Compliant with ASME B1.1 (thread class 2A/2B)

• Dual locking system (metal lock ring + threadlocker)

• Dynamic load capacity: 1000N, vibration-resistant for over 300 hours

Special Environment Series

MS1120 316L Stainless Corrosion-Resistant Type:

• Passed 96-hour salt spray test (ASTM B117)

• Medical-grade electropolished finish (Ra ≤ 0.4μm)

Case study: Installed in sterile pharmaceutical lines requiring precise and corrosion-resistant positioning.

3. Scientific Selection and Installation Guidelines

Selection Decision Matrix

• Load Type:

  • Static: standard thread

  • Dynamic: fine pitch thread

  • Impact: reinforced thread design

• Environment:

  • Corrosive: 316L stainless steel

  • High temperature: heat-resistant alloys

  • Cleanroom: electropolished finishes

Installation Technical Norms

• Torque Specifications:

  • M6: 5–7 N·m

  • M8: 12–15 N·m

  • M10: 24–28 N·m

• Installation Requirements:

  • Use alignment fixtures

  • Do not hammer directly

  • Ensure clean and dry mating surfaces

Maintenance Standards

• Weekly: check thread engagement and fit clearance

• Monthly: evaluate locking strength and thread wear

• Replacement intervals:

  • Normal use: 12 months or 50,000 cycles

  • Heavy duty: 6 months or 20,000 cycles

4. Quality Assurance and Technical Support

Comprehensive Quality System

• Raw material sourcing: Baosteel / POSCO

• In-process inspection: 100% thread GO/NO-GO gauges

• Final inspection per ISO 4759 Class A

• Certified to ISO 9001 and AS9100 standards

Technical Services

Mocayo provides full technical support including:

• Free training sessions on how to find out thread size

• On-site installation and troubleshooting guidance

• Custom failure analysis and engineering solutions

• Lifecycle management advice for threaded components

Engineering Service Commitment:

• 2-hour response to technical queries

• 24-hour emergency sample delivery

• 72-hour on-site service within mainland China

Through accurate measurement, proper selection, and standardized installation, Mocayo indexing plungers can help your operations achieve:

• 30–50% improvement in positioning accuracy

• 40–60% reduction in maintenance costs

• 25–35% increase in equipment uptime and efficiency

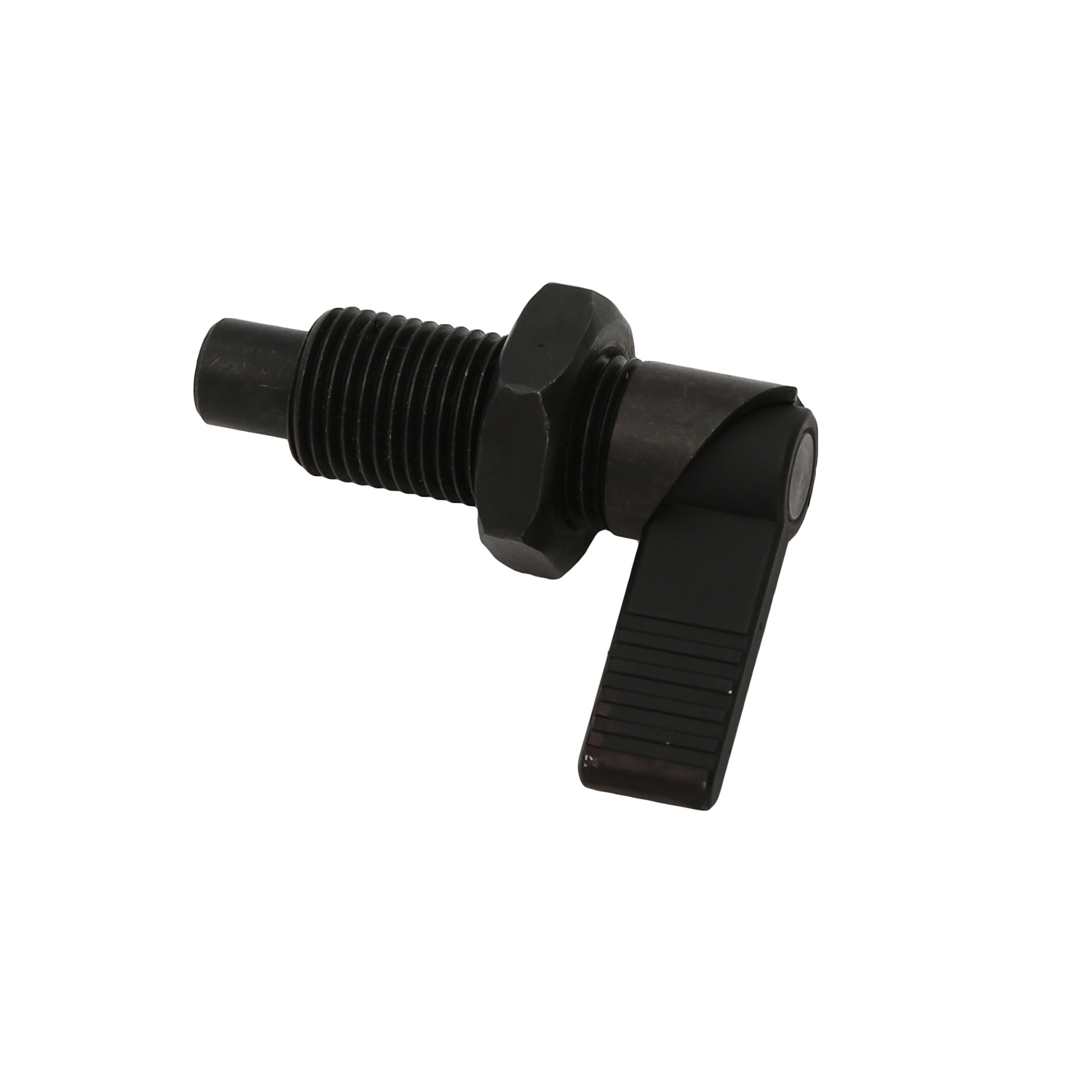

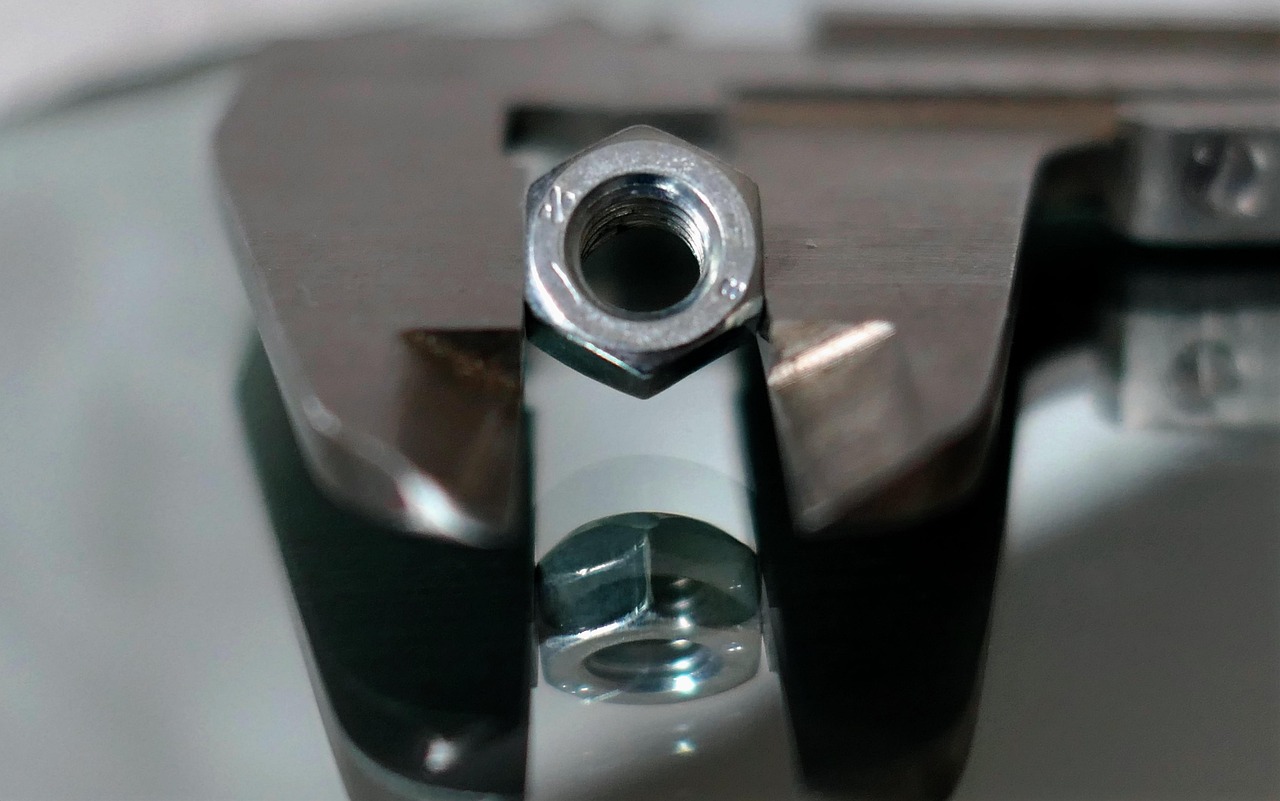

How to Find Out Thread Size for Indexing Plungers？Measure diameter and pitch with calipers or thread gauges to ensure compatibility with indexing plungers.
