Plate Mount Retractable Spring Plungers: Precision and Versatility in Motion Control

Introduction
In the world of mechanical engineering, precision and ease of use are critical for ensuring efficient and reliable operations. Plate Mount Retractable Spring Plungers have emerged as a versatile solution, offering a unique combination of functionality and user-friendly design. These devices are widely used in industries ranging from manufacturing to consumer electronics, providing secure positioning and controlled motion. But what exactly are Plate Mount Retractable Spring Plungers, how are they used, and what are their standard sizes? This article explores their design, functionality, applications, and standard dimensions.

What Are Plate Mount Retractable Spring Plungers?
Plate Mount Retractable Spring Plungers are mechanical devices that combine a spring-loaded plunger with a plate mount for easy installation. The plunger, typically featuring a ball or pin tip, engages with a detent (a recess or hole) to lock or position components. The plate mount allows for secure attachment to flat surfaces, making these plungers ideal for applications requiring precise positioning and frequent adjustments. They are commonly used in industries such as manufacturing, automotive, and aerospace.

Key Features and Benefits

1. Precision Positioning: Ensures accurate alignment and repeatable positioning of components.

2. Ease of Installation: The plate mount design allows for quick and secure attachment to flat surfaces.

3. Durability: Made from high-strength materials like stainless steel or aluminum, ensuring long-lasting performance.

4. Versatility: Available in various sizes, spring strengths, and tip configurations to suit different applications.

5. Secure Locking: Provides a firm hold, preventing accidental movement or disengagement.

How Are Plate Mount Retractable Spring Plungers Used?
The operation of Plate Mount Retractable Spring Plungers is simple and efficient:

1. Installation: The plate mount is securely attached to a flat surface using screws or bolts.

2. Engagement: The spring-loaded plunger is pushed into a detent (recess or hole), locking the component in position.

3. Retraction: When an external force is applied, the plunger retracts, allowing the component to move or release.

4. Re-engagement: Once the force is removed, the spring pushes the plunger back into the detent, securing the component in its new position.

This cycle of engagement and retraction ensures controlled motion and reliable locking, making these plungers indispensable in many applications.

Applications of Plate Mount Retractable Spring Plungers
Plate Mount Retractable Spring Plungers are used in a wide range of industries and applications, including:

• Industrial Machinery: Securing tooling, fixtures, and machine parts for precise alignment.

• Automotive: Adjusting and locking components like seats, panels, and control mechanisms.

• Aerospace: Ensuring secure positioning of access panels, cargo systems, and control surfaces.

• Consumer Electronics: Providing smooth and secure adjustments in devices like monitors, cameras, and foldable gadgets.

• Medical Devices: Enabling precise control in surgical instruments and diagnostic equipment.

• Furniture: Allowing for easy adjustments in chairs, tables, and modular furniture.

Standard Sizes of Plate Mount Retractable Spring Plungers
Plate Mount Retractable Spring Plungers are available in a variety of standard sizes to meet different application requirements. Common dimensions include:

• Plunger Diameter: Ranging from 3 mm to 12 mm, depending on the application.

• Spring Forces: Available in various spring strengths to provide the desired tension and holding power.

• Plate Dimensions: Typically ranging from 20 mm x 20 mm to 50 mm x 50 mm, with thicknesses of 3 mm to 10 mm.

• Overall Length: Varies based on the specific model and application, typically ranging from 20 mm to 100 mm.

Advantages Over Traditional Plungers

1. User-Friendly Design: The plate mount allows for easy installation and secure attachment.

2. Enhanced Control: Provides precise adjustments and secure locking, even in high-vibration environments.

3. Durability: Built to withstand heavy use and harsh conditions, ensuring long-term reliability.

4. Customizability: Available in various configurations to meet specific application requirements.

Challenges in Using Plate Mount Retractable Spring Plungers
While these plungers offer many benefits, there are some challenges to consider:

• Precision Requirements: Requires precise alignment and hole sizing for proper operation.

• Load Capacity: May not be suitable for extremely high-load applications.

• Cost: Can be more expensive than traditional plungers due to their advanced design.

Innovations in Plate Mount Retractable Spring Plungers
As technology advances, these plungers are being enhanced with new features:

• Corrosion-Resistant Coatings: Improving durability in harsh environments.

• Ergonomic Designs: Adding features like textured grips for easier operation.

• Smart Plungers: Integrating sensors to monitor tension and wear in real time.

Expert Insights
Dr. Emily Carter, a mechanical engineering expert, explains, "Plate Mount Retractable Spring Plungers are a perfect example of how thoughtful design can simplify complex tasks. Their combination of precision, ease of use, and durability makes them indispensable in modern engineering."

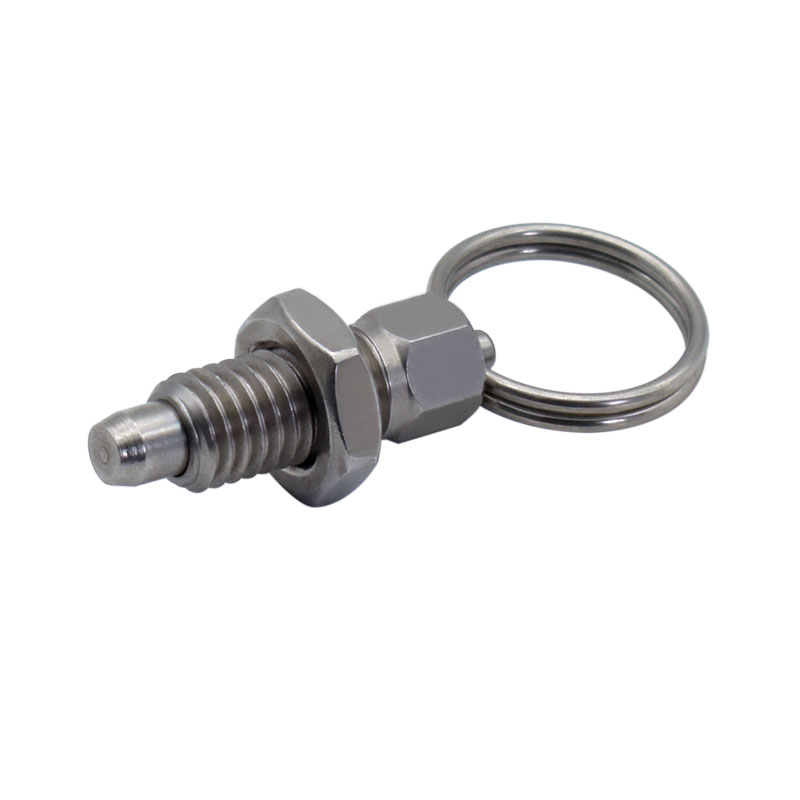

Discover our plate mount retractable spring plungers for precise positioning and reliable performance in industrial applications. Durable and efficient, they ensure smooth operation. Contact us for custom solutions tailored to your needs.
