Quick Release Ball Lock Dowel Pins: The Future of Precision Alignment and Rapid Disassembly

Introduction

In modern manufacturing, automation, and machinery maintenance, the need for fast, precise, and reliable component alignment has never been greater. Quick Release Ball Lock Dowel Pins have emerged as a revolutionary solution, combining the positioning accuracy of traditional dowel pins with the convenience of instant release mechanisms. These innovative fasteners are transforming industries ranging from aerospace assembly to industrial robotics, offering unparalleled efficiency in applications requiring frequent disassembly without sacrificing precision.

This in-depth article explores the engineering principles, material advantages, technical specifications, and real-world applications of Quick Release Ball Lock Dowel Pins, providing valuable insights for design engineers and maintenance professionals.

What Are Quick Release Ball Lock Dowel Pins?

Quick Release Ball Lock Dowel Pins are hybrid fastening devices that merge three critical functions:

1. Precision Alignment – Like traditional dowels, they ensure micron-level accuracy

2. Positive Locking – Spring-loaded balls provide secure engagement

3. Instant Release – Simple mechanism allows tool-free disassembly

Key Components:

• Hardened steel body with precision-ground diameter

• Recirculating ball bearing system (typically 3-6 balls)

• Spring-loaded release mechanism

• Ergonomic actuation collar

Technical Specifications & Standards

How They Work: The Engineering Behind the Innovation

Three-Phase Operation:

1. Insertion & Alignment

   • Precision-ground shank guides components into perfect alignment

   • Chamfered entry ensures smooth engagement

2. Positive Locking

   • Spring forces balls outward into mating detents

   • Audible click confirms secure engagement

3. Quick Release

   • Pull collar retracts balls into pin body

   • Frictionless extraction even after prolonged use

Safety Features:

• Visual indicators show locked/unlocked status

• Secondary retention prevents accidental release

• Shear protection balls retract before damage occurs

Material Science: Built for Performance

1. Standard Construction

• Body: 4140 alloy steel, hardened to 58-62 HRC

• Balls: 52100 bearing steel, precision graded

• Spring: 302 stainless steel, 100,000+ cycle life

2. Corrosion-Resistant Options

• 17-4PH Stainless Steel: For marine/chemical environments

• Titanium Alloy: Aerospace-grade strength/weight ratio

• Ceramic-Coated: Extreme wear applications

3. Special Surface Treatments

• Black Oxide: Additional corrosion protection

• PTFE Impregnation: Self-lubricating for dry environments

• Electropolishing: For cleanroom applications

Industry Applications

1. Aerospace Tooling

• Use: Wing jig alignment pins

• Benefit: 75% faster tooling changes

• Special Requirement: Conductive variants for ESD protection

2. Automotive Fixturing

• Application: Robotic welding cell tooling

• Challenge: Vibration resistance at 15G+

• Solution: Dual-lock heavy-duty models

3. Medical Equipment

• Implementation: MRI machine service panels

• Critical Need: Non-magnetic materials

• Option: Titanium construction

4. Industrial Automation

• Function: Robotic end effector quick-change

• Advantage: <0.01mm repeatability

• Feature: RFID-enabled smart pins

Selection Guide

Step 1: Load Requirements

• Light Duty (Under 500N): 3-6mm diameter

• Medium Duty (500-2,000N): 8-12mm

• Heavy Duty (2,000N+): 15mm+ with dual-ball systems

Step 2: Environmental Factors

• Standard: Hardened steel with oil film

• Wet: Stainless steel with marine grease

• Cleanroom: Electropolished 316SS

Step 3: Precision Needs

• Commercial Grade: ±0.02mm

• Precision Grade: ±0.005mm

• Ultra-Precision: ±0.001mm (lap-finished)

Installation Best Practices

1. Hole Preparation

   • Ream to H7/h6 tolerance

   • Surface finish <1.6μm Ra

2. Mounting Procedure

   • Clean mating surfaces

   • Lightly lubricate (except dry environments)

   • Engage until positive click

3. Verification

   • Check visual indicator

   • Confirm zero play

Maintenance & Inspection

Preventative Schedule:

• Monthly: Check ball protrusion

• Quarterly: Clean and relubricate

• Annually: Spring force testing

Failure Signs:

• Incomplete ball extension

• Rough operation

• Visible wear tracks

Future Innovations

1. Smart Connected Pins

   • Bluetooth load monitoring

   • Predictive maintenance alerts

2. Advanced Materials

   • Graphene-coated balls

   • Shape-memory alloy springs

3. Self-Locking Technology

   • Automatic tension adjustment

   • Anti-vibration algorithms

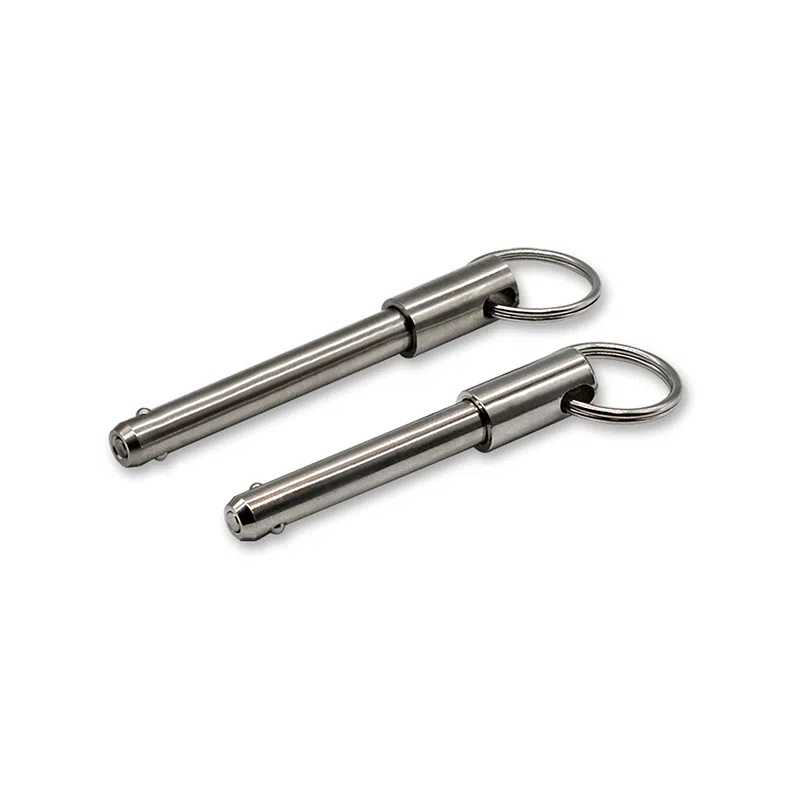

Explore our quick release ball lock dowel pins for secure and efficient fastening in industrial applications. Durable and reliable, they ensure smooth operation. Contact us for custom solutions tailored to your needs.

Quick Release Ball Lock Dowel Pins represent a quantum leap in fastening technology, bridging the gap between permanent precision alignment and rapid disassembly. As Industry 4.0 drives demand for faster changeovers and smarter tooling, these innovative components are poised to become the new standard across manufacturing sectors.
