Quick Release Pins For Medical Equipment
author: Lucia Liu
2025-09-26
Contents
Table of Contents
Quick Release Pins For Medical Equipment
- Tool-Free Operation: Medical personnel can quickly adjust or replace components.
- Corrosion-Resistant Materials: Constructed from stainless steel or anodized aluminum, meeting medical-grade cleaning and sterilization standards.
- High Reliability: Ensures stability and safety even under high-frequency use.

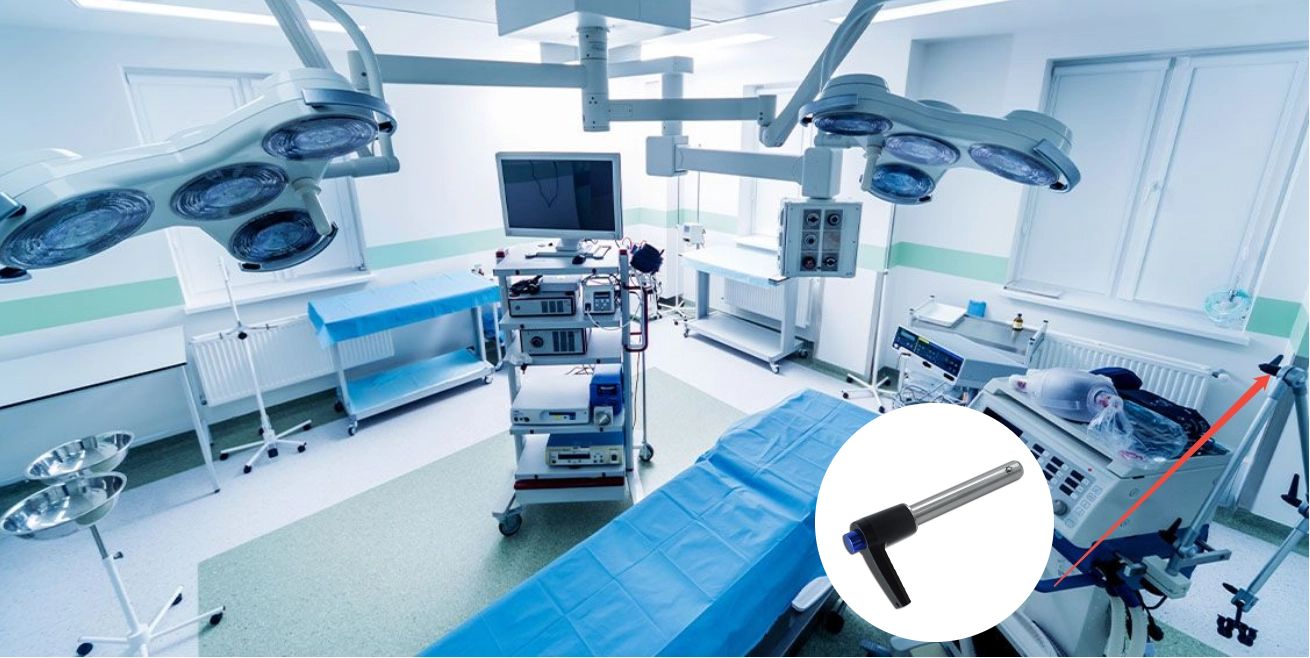

In the design and manufacture of modern medical devices, the quick release pin has become an important element in improving efficiency and safety. Not only does it simplify the assembly and disassembly of equipment, but it also meets strict hygiene standards and plays an irreplaceable role in critical scenarios such as operating theatres, diagnostic imaging areas and laboratories.
quick release pin is a fastening element that can be inserted and removed quickly and relies on an internal spring and locking ball structure to provide a secure and stable connection. In contrast to conventional screws or bolts, it is easy to use and allows for quick fixing and removal of equipment components without the need for any tools. This is especially important for medical equipment that requires frequent adjustments or maintenance, such as height adjustments on operating tables and module changes on laboratory instruments.
To meet stringent medical environment standards, quick release pins are typically made from 304 or 316 stainless steel and undergo electropolishing to enhance corrosion resistance and antimicrobial properties. For equipment requiring weight reduction, anodized aluminum is an ideal choice, offering both lightweight construction and excellent durability.
The quick release pin consists of the following key components:
- Handle or pull ring: facilitates one-handed quick release by the healthcare worker.
- The pin body: connects and carries the main load, and is the core of the device's fixation.
- Internal spring and locking ball: automatically extends the locking ball after insertion to provide a secure lock.
This compact and efficient structural design allows the quick release pin to provide a reliable connection in a limited space, meeting the complex needs of a wide range of medical devices.
The quick release pin works in a simple and efficient manner:
- When the operator pulls or presses the handle, the internal spring is compressed and the locking ball retracts, allowing the pin to be inserted or withdrawn.
- When the handle is released, the spring is released and the locking ball automatically snaps into the wall of the device, providing a solid and secure lock.
This design not only saves operating time, but also reduces the reliance on tools, which is very much in line with the requirements of "fast, safe and simple" in medical scenarios.
- One touch release: no tools such as screwdrivers are required to operate the pin.
- Safe and secure: the internal ball locking structure ensures a reliable connection and prevents the device from loosening.
- Easy to clean and sterilise: suitable for aseptic environments with frequent cleaning.
