Quick Release Pins Spring Loaded

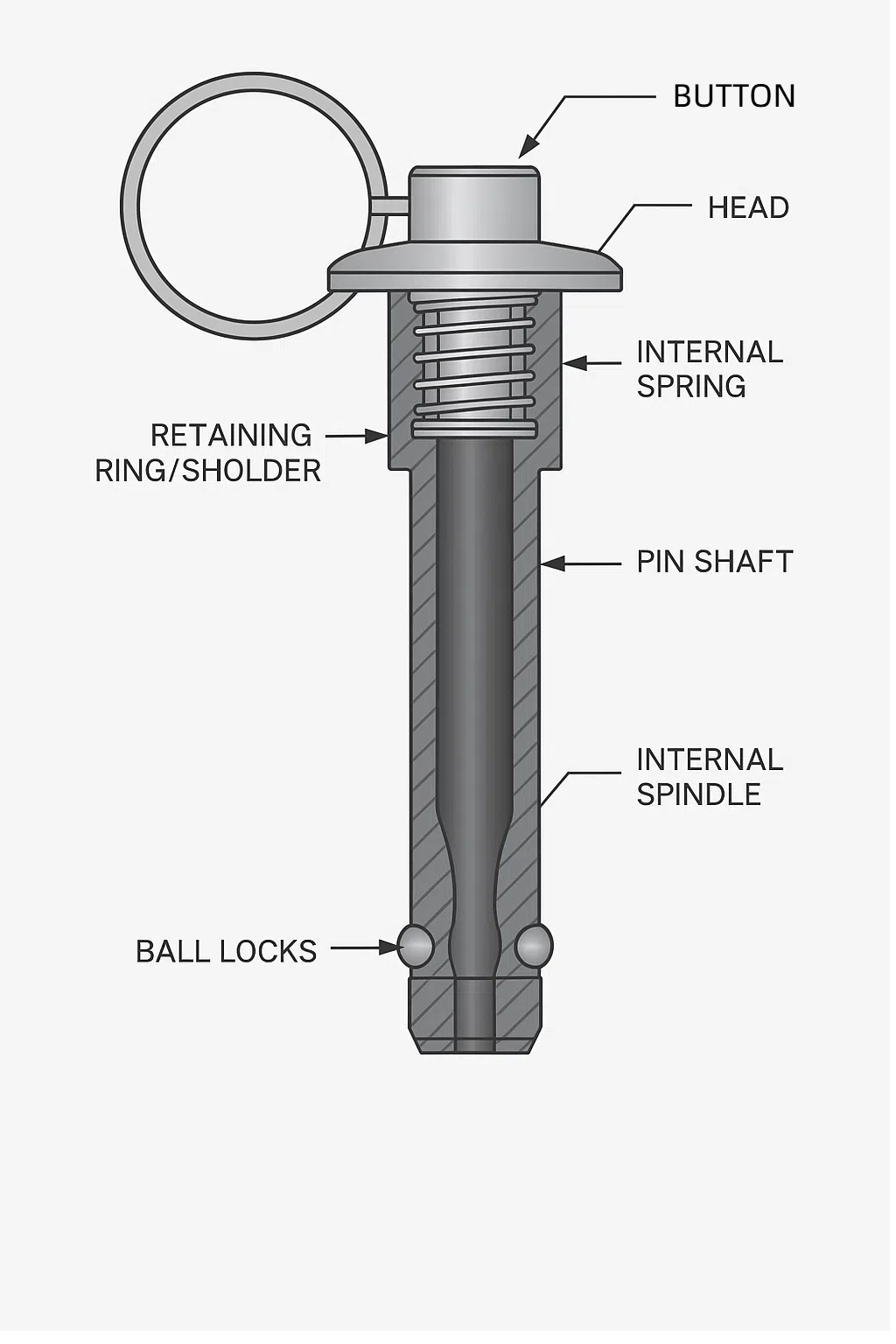

A spring loaded quick release pin contains cylindrical pin body, stainless steel spring, steel ball, button or pull ring, retaining groove/stop.
Quick Release Pins Spring Loaded Machining Process Flow
1. Turning (CNC Lathe)
Shape machining of the shaft body, such as: Precision cylindrical turning, Slotting; chamfering, drilling, etc. Ensuring dimensional accuracy and concentricity.
Shape machining of the shaft body, such as: Precision cylindrical turning, Slotting; chamfering, drilling, etc. Ensuring dimensional accuracy and concentricity.
2. Grinding and Polishing
Grinding of high-precision areas such as the shaft surface to ensure surface finish and fitting accuracy. Stainless steel components are often polished or brushed.
Grinding of high-precision areas such as the shaft surface to ensure surface finish and fitting accuracy. Stainless steel components are often polished or brushed.
3. Drilling and Milling
Drilling holes or milling slots on the shaft head for installing pull rings or buttons. Milling of the shaft head limiting slots.
Drilling holes or milling slots on the shaft head for installing pull rings or buttons. Milling of the shaft head limiting slots.
4. Spring Manufacturing
Springs are made from high-carbon steel or stainless steel wire, formed through cold or hot rolling, and then heat-treated to ensure spring force and fatigue life.
Springs are made from high-carbon steel or stainless steel wire, formed through cold or hot rolling, and then heat-treated to ensure spring force and fatigue life.
5. Lock Ball Assembly Hole Processing
Precision drilling or milling is performed to ensure the lock ball can move freely.
Precision drilling or milling is performed to ensure the lock ball can move freely.
Quick release pins spring loaded – your solution for fast, secure connections. Built tough for manufacturing, aerospace, marine, and more.
Explanation of Ball Locking Pins Types
MS Standard
