Rapid Release Pins: The Future of Efficient and Reliable Fastening

Introduction

In the dynamic world of engineering and manufacturing, the demand for quick, reliable, and user-friendly fastening solutions has never been higher. Whether in aerospace, automotive, marine, or heavy machinery industries, the ability to swiftly connect and disconnect components without compromising safety or performance is critical. This is where rapid release pins come into play. These innovative mechanical fasteners have transformed assembly and disassembly processes, offering unmatched convenience and efficiency.

What Are Rapid Release Pins?

Rapid release pins, also known as quick release pins, are precision-engineered devices designed to quickly and securely lock components together. They feature a spring-loaded mechanism that allows for easy insertion and removal without the need for tools. The pin typically consists of a body, a locking mechanism such as a ball or plunger, and a handle or button for operation.

These pins are widely used in scenarios where frequent assembly and disassembly are required. Their design ensures that they can withstand substantial loads while allowing for repeated use over time. Their versatility and ease of operation have made them a staple in industries that prioritize speed, safety, and reliability.

Key Components and Mechanism

A typical rapid release pin is composed of several key elements:

• Pin Body: Usually cylindrical and made from materials like stainless steel, aluminum, or titanium, depending on the application's strength and corrosion resistance requirements.

• Locking Mechanism: Often consists of spring-loaded balls or plungers that expand or retract to engage or release the pin from a mating hole.

• Handle or Actuator: Comes in various styles including T-handle, ring handle, button head, and L-handle, each offering unique ergonomic advantages.

The spring-loaded mechanism is the core of the rapid release functionality. When the actuator is pressed or pulled, it compresses the internal spring, retracting the locking balls or plungers and allowing the pin to be inserted or withdrawn. Releasing the actuator causes the balls to expand, securely locking the pin in place.

Benefits of Using Rapid Release Pins

Rapid release pins offer numerous benefits that make them ideal for a wide range of applications:

• Speed and Efficiency: Eliminates the need for tools, significantly reducing assembly and disassembly time.

• Ease of Use: Simple operation makes them accessible even to untrained personnel.

• Reliability: Designed for high load-bearing capacity and repeated use without failure.

• Safety: Positive locking mechanisms prevent accidental disengagement, enhancing operational safety.

• Versatility: Suitable for a variety of environments and applications, from high-vibration settings to corrosive marine conditions.

Applications Across Industries

Rapid release pins are integral to many sectors due to their adaptability and robust performance:

• Aerospace: Used in aircraft interiors, landing gear, and maintenance equipment for quick component changes.

• Automotive: Facilitates the assembly of modular systems, test rigs, and motorsport applications.

• Marine: Offers corrosion resistance and secure locking for sail rigging, deck hardware, and removable fixtures.

• Defense: Deployed in military vehicles, field equipment, and tactical gear for fast deployment and reliability.

• Manufacturing: Streamlines tooling and fixture changeovers, improving overall productivity.

Types of Rapid Release Pins

Various types of rapid release pins cater to specific operational needs:

• Button Handle Pins: Ideal for one-handed operation in tight spaces.

• T-Handle Pins: Offers a strong grip for high-force insertion or removal.

• Ring Handle Pins: Provides tethering capability to prevent loss.

• L-Handle Pins: Useful in confined areas with limited access.

• Ball Lock Pins: High-security option using dual locking balls for maximum load distribution.

Material Considerations

Material selection is crucial for the performance and longevity of rapid release pins. Common materials include:

• Stainless Steel: Excellent corrosion resistance, ideal for marine and medical applications.

• Aluminum: Lightweight and suitable for applications where weight savings are essential.

• Titanium: High strength-to-weight ratio, non-magnetic, and corrosion-resistant.

• Alloy Steel: Heat-treated for enhanced strength, used in high-stress environments.

Design Innovations and Customization

Manufacturers offer custom solutions to meet unique operational requirements. These may include:

• Special Grip Lengths: Tailored to specific dimensional needs.

• Custom Handle Designs: For improved ergonomics or aesthetic appeal.

• Integrated Lanyards: To prevent pin loss and facilitate faster retrieval.

• Surface Treatments: Such as anodizing, passivation, or coating for enhanced durability and appearance.

Installation and Maintenance Best Practices

To maximize performance and lifespan, proper installation and maintenance are essential:

• Correct Sizing: Ensure the pin matches the diameter and grip length of the application.

• Regular Inspection: Check for wear, corrosion, or mechanical damage.

• Lubrication: Use appropriate lubricants to maintain smooth operation.

• Cleaning: Especially important in environments with dust, dirt, or corrosive elements.

Challenges and Limitations

While highly advantageous, rapid release pins are not without challenges:

• Cost: Higher upfront cost compared to standard fasteners.

• Complexity: May require precise manufacturing tolerances.

• Application Limits: Not suitable for all load or environmental conditions.

Trends and Future Outlook

The demand for rapid release pins is expected to grow as industries continue to prioritize efficiency and modularity. Future developments may include:

• Smart Pins: Integration with sensors for load monitoring and digital tracking.

• Sustainable Materials: Use of eco-friendly alloys and coatings.

• Additive Manufacturing: For rapid prototyping and low-volume custom parts.

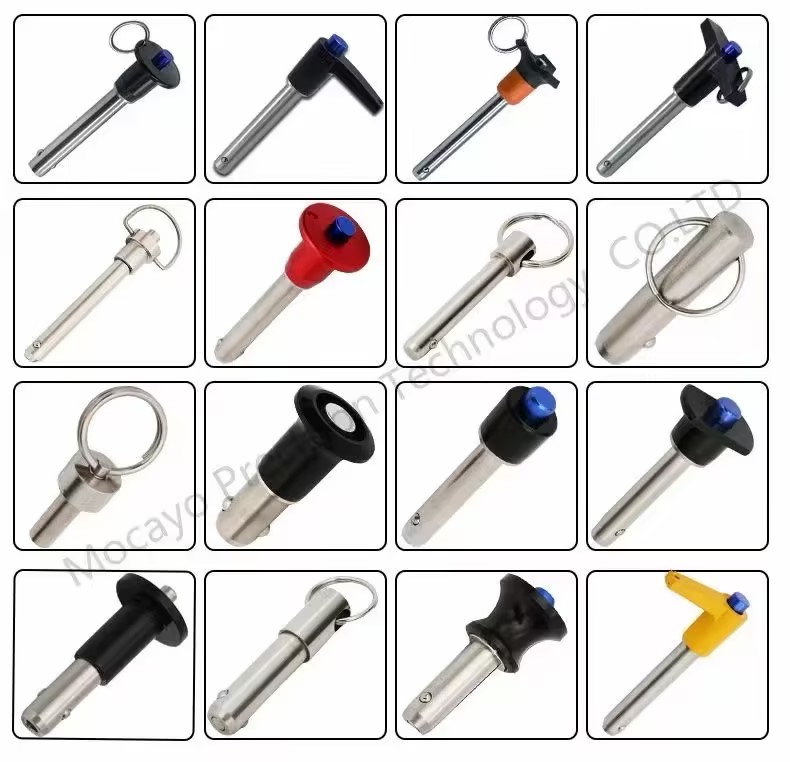

Explore our rapid release pins for secure and efficient fastening in industrial applications. Durable and reliable, they ensure smooth operation. Contact us for custom solutions tailored to your needs.

Rapid release pins represent a pinnacle of engineering simplicity and effectiveness. Their ability to streamline assembly processes, enhance safety, and provide reliable performance across diverse applications makes them an invaluable asset in modern industry. As technology continues to advance, rapid release pins will undoubtedly evolve, incorporating smarter designs and materials to meet the growing demands of high-performance engineering environments.

By understanding their construction, benefits, and applications, businesses can better leverage rapid release pins to improve productivity, reduce downtime, and maintain a competitive edge.
