Spring Loaded Fasteners: Revolutionizing Assembly and Engineering Efficiency

Introduction

As industries strive for faster, safer, and more reliable assembly processes, spring loaded fasteners have emerged as a cornerstone solution in mechanical engineering. These innovative components offer a dynamic alternative to traditional fastening methods by integrating spring mechanisms that ensure consistent pressure, quick engagement, and easy release. Found in everything from aerospace assemblies to consumer electronics, spring loaded fasteners support enhanced performance, reduce downtime, and increase productivity. This article explores their design, functionality, benefits, industry applications, and future trends.

What Are Spring Loaded Fasteners?

Spring loaded fasteners are mechanical devices that use internal springs to apply continuous force, ensuring reliable engagement between components. They often allow for quick installation and removal without the need for additional tools. These fasteners can vary in design, including plungers, pins, and studs, and are engineered to provide precise positioning and retention.

Key Components and Design

The basic structure of a spring loaded fastener typically includes:

• Housing or Body: The external structure that contains the internal components.

• Spring Mechanism: Provides the necessary force for engagement or retraction.

• Plunger or Pin: The moving component that locks into place or retracts.

• Retaining or Locking Element: Ensures the fastener stays in position.

Materials commonly used include stainless steel, carbon steel, brass, aluminum, and high-strength plastics, chosen based on application requirements such as strength, corrosion resistance, or weight.

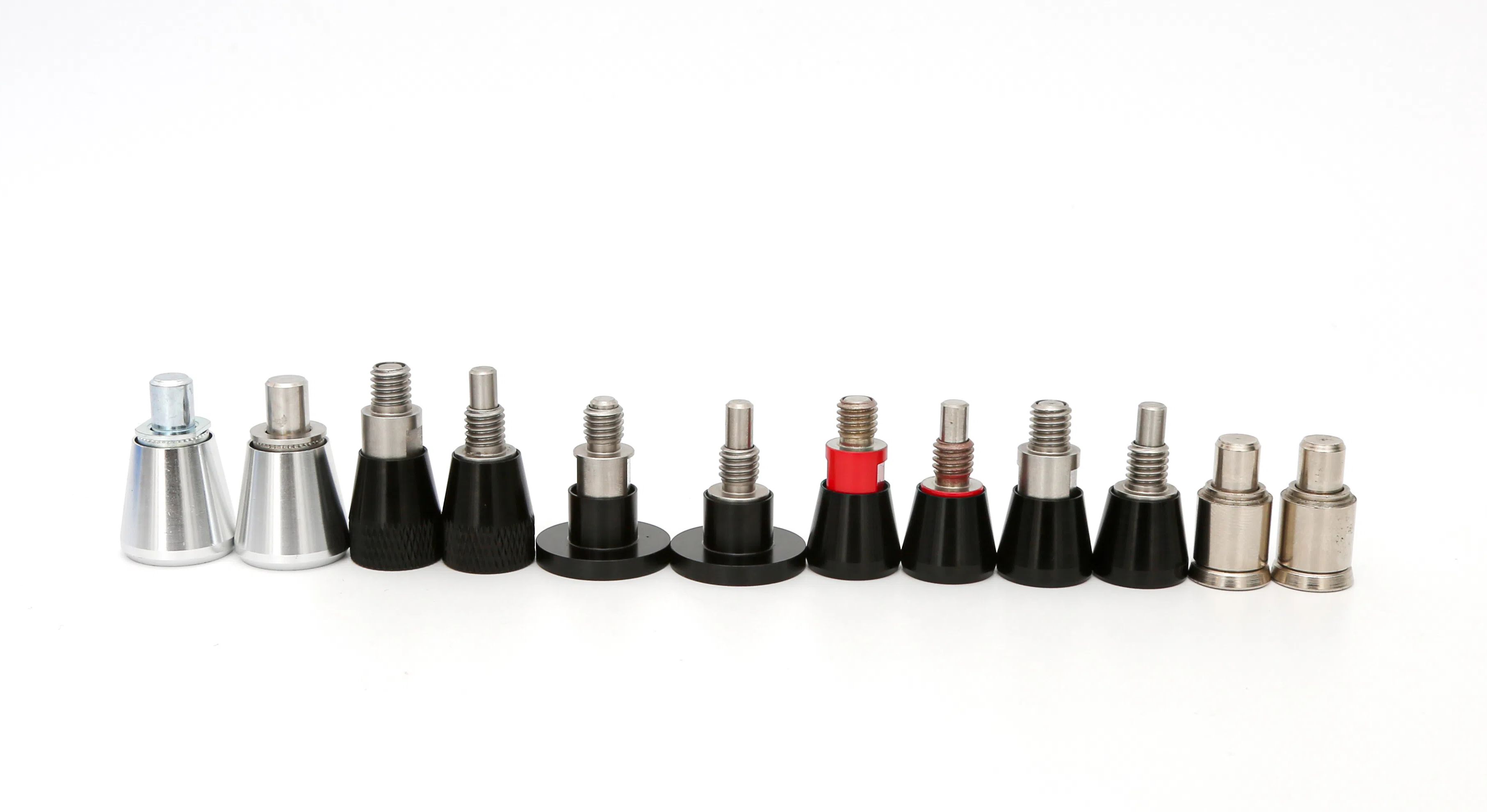

Types of Spring Loaded Fasteners

Spring loaded fasteners come in several types, each suited to specific applications:

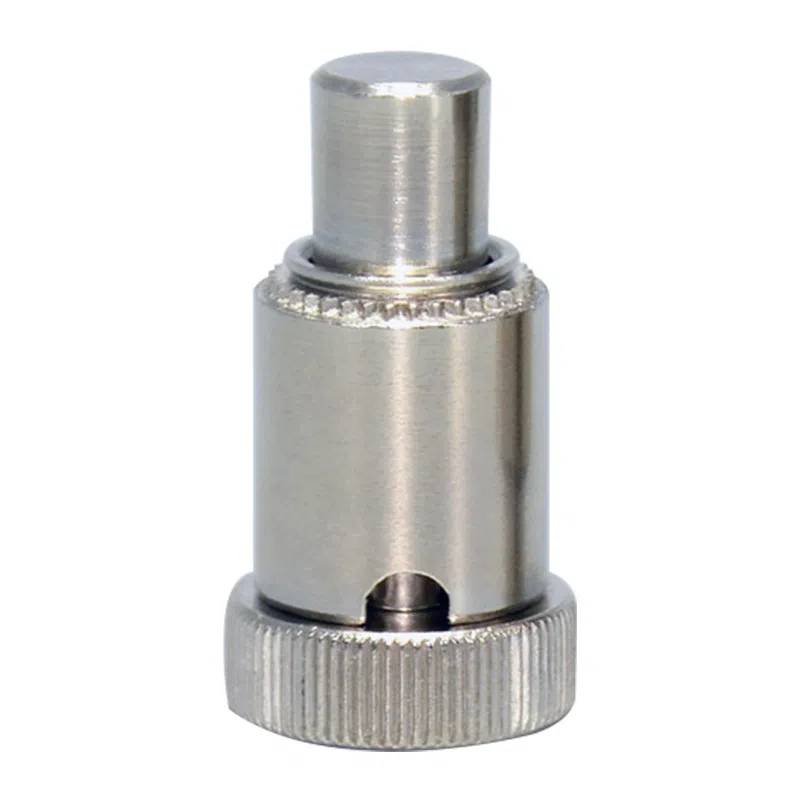

• Spring Plungers: Feature a ball or pin that protrudes and retracts under spring force.

• Quick Release Pins: Lock and unlock with a spring button or ball-lock mechanism.

• Indexing Plungers: Allow for precise locking and positioning, often with a knob or handle.

• Captive Fasteners: Remain attached to a panel or component even when disengaged.

• Ball Lock Pins: Use spring-loaded balls for secure, quick locking in assemblies.

Functional Advantages

Spring loaded fasteners are popular for a reason—they offer numerous functional benefits:

• Rapid Assembly and Disassembly

• Tool-Free Operation

• Consistent Force Application

• Enhanced Positioning Accuracy

• Vibration Resistance

• Compact and Lightweight Designs

These features make them ideal for applications where time, precision, and durability are critical.

Applications Across Industries

Spring loaded fasteners are versatile and used in a wide range of sectors:

• Aerospace: For securing access panels, seats, and equipment with minimal maintenance.

• Automotive: Utilized in seat mechanisms, removable panels, and modular components.

• Medical Devices: Enable sterile, tool-free assembly of diagnostic and surgical instruments.

• Electronics: Secure PCBs and components within enclosures.

• Industrial Automation: Used in jigs, fixtures, and robotic arms.

• Construction and Machinery: For heavy-duty locking and quick-adjust mechanisms.

Installation and Maintenance Considerations

While spring loaded fasteners simplify operations, proper installation ensures optimal performance:

• Ensure alignment of mating parts.

• Apply consistent insertion force.

• Lubricate moving parts where necessary.

• Perform periodic inspections to check for wear, corrosion, or spring fatigue.

Performance Characteristics

Performance is influenced by several parameters:

• Spring Force: Determines the holding power.

• Material Strength: Affects load capacity and fatigue resistance.

• Cycle Life: Number of locking/unlocking operations the fastener can endure.

• Environmental Resistance: Resistance to temperature, moisture, chemicals, and corrosion.

Standards and Specifications

Spring loaded fasteners are often manufactured to meet international standards such as:

• ISO 9001: Quality management.

• RoHS/REACH: Compliance with environmental regulations.

• MIL-SPEC: Military-grade requirements.

• DIN/ANSI/BS: Specific mechanical dimensions and tolerances.

Material Selection and Finishes

Choosing the right material ensures longevity and performance:

• Stainless Steel: Ideal for corrosion resistance.

• Carbon Steel: High strength at a lower cost.

• Brass: For electrical conductivity and aesthetics.

• Plastics (e.g., Nylon): Lightweight and non-conductive.

Common finishes include:

• Zinc Plating

• Anodizing

• Passivation

• Black Oxide

Customization Capabilities

Many manufacturers offer tailored solutions:

• Specific dimensions, thread types, or force ratings

• Custom knobs or handles for ergonomic design

• Color coding for easy identification

• Integrated safety features

Challenges and Solutions

Despite their benefits, spring loaded fasteners face challenges:

• Spring Fatigue: Can lead to reduced force. Solution: Use high-quality spring materials and design for longevity.

• Corrosion in Harsh Environments: Solution: Use treated stainless steel or sealed mechanisms.

• Mechanical Failure: Often due to overloading. Solution: Select appropriate fastener for application load.

Case Study 1: Aerospace Access Panels

A leading aerospace manufacturer needed a solution for access panels that would reduce maintenance time. Traditional screws were time-consuming and prone to wear. Replacing them with spring loaded quick release pins resulted in a 40% reduction in servicing time and improved reliability.

Case Study 2: Medical Imaging Devices

Medical equipment requires tool-free access to ensure cleanliness and speed. A custom spring plunger design allowed technicians to quickly disassemble imaging panels for inspection and cleaning, enhancing device uptime and hygiene compliance.

Market Trends and Future Outlook

• Miniaturization: As electronics shrink, fasteners must become more compact without losing strength.

• Smart Fasteners: Integration of sensors to detect lock status.

• Sustainable Manufacturing: Greater demand for recyclable materials and eco-friendly production.

• 3D Printing: Custom fastener prototypes and small-batch runs.

Comparison With Traditional Fasteners

Industry Certifications

When choosing a manufacturer, check for:

• ISO certifications

• Compliance with relevant mechanical and environmental standards

• Proven supply record in your industry

Spring loaded fasteners represent a significant advancement in fastening technology. Their combination of speed, precision, and reliability makes them an essential component in modern engineering applications. As industries continue to demand greater efficiency and smarter solutions, these fasteners will evolve further to meet increasingly complex challenges. Whether in aerospace, medical, industrial, or consumer markets, investing in high-quality spring loaded fasteners is a step toward improved operational performance and long-term value.
