Spring Loaded Pins: A Key Element in Precision Fastening Systems

Introduction: The Versatility and Utility of Spring Loaded Pins

In the world of industrial design and mechanical systems, securing and connecting components with precision is critical. One of the most versatile and widely used components in achieving this are spring loaded pins. These small but essential fasteners provide an effective and reliable solution for applications ranging from automotive assembly to medical equipment. This article will explore the design, benefits, applications, and various types of spring loaded pins in-depth, while highlighting their importance in modern engineering.

What is a Spring Loaded Pin?

Understanding the Mechanism

A spring loaded pin is a mechanical fastening device that consists of a pin or shaft, typically made of stainless steel, which is housed in a body containing a spring. The pin is designed to be inserted into a hole, groove, or cavity and secured under tension from the spring. When pressure is applied, the pin retracts, and when released, the spring returns it to its original extended position. This mechanism allows the pin to lock components in place securely.

The simplicity of the design—comprising a pin, spring, and housing—belies the pin's versatility and effectiveness in a wide array of industrial and commercial applications.

Types of Spring Loaded Pins

Spring loaded pins come in several types, each serving different mechanical functions. These include:

1. Standard Spring Loaded Pin

The most common type, this pin is used to secure two components together by inserting the pin into corresponding holes. The spring helps hold the pin in place, preventing accidental disassembly or detachment.

2. Ball Lock Spring Loaded Pin

This type of pin features a ball mechanism that locks into place when the pin is inserted. The ball bearings provide added security, ensuring the pin stays firmly in position even under heavy stress.

3. Plunger Pin

Often used in jigs and fixtures, plunger pins have a retractable mechanism that allows easy insertion or removal. The spring-loaded plunger action ensures fast and secure locking.

4. Latch Pins

These are spring loaded pins that incorporate a latch mechanism, allowing them to lock or unlock with a simple pull. Latch pins are commonly used in applications where quick release and re-engagement are required.

5. Push Pins

A push pin is a type of spring-loaded pin that is manually pushed into place to secure components. The spring-loaded design ensures that the pin remains securely in position until it is manually removed.

Each type is designed to offer ease of use and reliable performance across various mechanical and industrial applications.

Materials Used in Spring Loaded Pins

The materials used in the construction of spring loaded pins are crucial to their performance, especially when the pins are exposed to demanding conditions such as high stress, moisture, or extreme temperatures. Common materials include:

1. Stainless Steel

Stainless steel is the most common material used in spring loaded pins due to its corrosion resistance, strength, and durability. It is ideal for both indoor and outdoor applications, including those in harsh environments like marine or chemical settings.

2. Carbon Steel

Carbon steel provides higher strength and is often used in heavy-duty applications. However, it requires additional coating or treatment to prevent rusting.

3. Aluminum

Aluminum spring loaded pins are lighter than steel versions, making them ideal for applications where weight is a concern, such as in aerospace or automotive industries.

4. Brass and Bronze

Brass and bronze are used for applications requiring non-corrosive materials and a certain aesthetic appeal, such as in decorative hardware or marine environments.

Each material is selected based on factors such as load-bearing capacity, resistance to corrosion, and environmental considerations.

Benefits of Spring Loaded Pins

1. Quick and Easy Assembly

One of the key benefits of spring loaded pins is that they allow for rapid assembly and disassembly of components. The spring mechanism ensures that the pins can be easily inserted and locked into place without the need for additional tools or complex procedures. This is especially useful in production environments where time is critical.

2. Secure Fastening

Spring loaded pins offer a high level of security when fastening components together. The spring tension ensures that the pin stays securely in place even under significant force or vibration, preventing parts from loosening or detaching during operation.

3. Versatility

Spring loaded pins can be used in a variety of applications, from automotive manufacturing to aerospace engineering, medical devices, and consumer products. Their versatility makes them an essential part of many industries.

4. Durability

Due to their robust design and high-quality materials, spring loaded pins are built to last. They can withstand exposure to moisture, chemicals, high temperatures, and mechanical stresses, making them ideal for use in challenging environments.

5. Safety

The self-locking nature of spring loaded pins reduces the risk of accidental disengagement, ensuring that components remain in place and reducing the likelihood of equipment failure. This safety feature is particularly important in high-stakes industries like aerospace, automotive, and medical equipment.

Applications of Spring Loaded Pins

1. Automotive Industry

In the automotive sector, spring loaded pins are often used in vehicle assembly lines for quick and secure fastening of components such as doors, seats, and panels. They are also commonly found in suspension systems, engine components, and locking mechanisms.

2. Aerospace Industry

In aerospace engineering, where precision and reliability are critical, spring loaded pins are used to fasten components in aircraft, rockets, and satellites. The ability to securely lock components in place ensures the safety and integrity of the entire system.

3. Industrial Machinery

Spring loaded pins are commonly used in industrial machinery, including equipment that requires frequent setup or maintenance, such as conveyor belts, assembly fixtures, and industrial robots. Their quick-release mechanism allows for efficient changes in tooling and component configurations.

4. Medical Devices

Spring loaded pins are found in medical equipment, including surgical tools and diagnostic instruments, where quick adjustments and secure locking are essential. The pins ensure precision and ease of use in critical applications where safety is paramount.

5. Consumer Products

In consumer goods, spring loaded pins are used in a variety of products, such as folding furniture, portable equipment, and sporting goods. Their compact size and reliability make them an ideal choice for products that require quick and easy adjustment.

Choosing the Right Spring Loaded Pin for Your Application

Selecting the right spring loaded pin for a specific application involves considering factors such as:

• Load Capacity: Ensure the pin can withstand the forces it will encounter in operation.

• Size and Fit: Choose a pin with the appropriate diameter, length, and mounting style for your system.

• Material: Select a material that offers the right balance of strength, corrosion resistance, and weight for your application.

• Environmental Conditions: Consider factors such as temperature, moisture, and exposure to chemicals.

• Release Mechanism: Determine whether a standard, ball lock, or latch mechanism is best suited for your needs.

By carefully evaluating these factors, you can select the ideal spring loaded pin for your specific application.

The Essential Role of Spring Loaded Pins in Modern Engineering

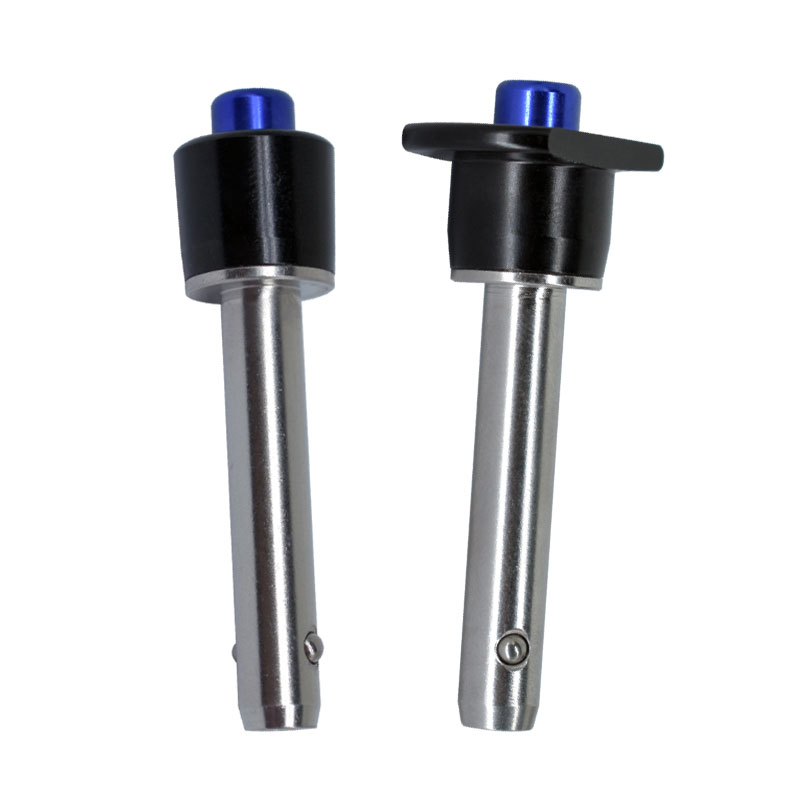

Spring loaded pins offer reliable, quick-release fastening solutions for various industries. With their durable design and secure locking mechanism, they are ideal for applications in automotive, aerospace, medical, and industrial machinery, providing efficiency and precision in assembly processes.

Spring loaded pins are an indispensable part of modern mechanical systems, offering quick, secure, and reliable fastening solutions for a wide range of industries. From automotive manufacturing to aerospace, medical devices, and beyond, these pins play a critical role in ensuring the safety, durability, and efficiency of products. With various types and materials available, spring loaded pins can be tailored to meet the demands of any application, making them a versatile and essential component in today's engineering world.
