Spring Plungers for Machinery

author: Fioan Yang

2025-07-18

Spring Plungers for Machinery

In the world of industrial machinery, consistent performance hinges on components that deliver precision, durability, and simplicity. Among these, spring plungers stand out as fundamental elements for mechanical positioning and safety. Designed to absorb shock, align parts, and maintain tension, these compact devices are critical to minimizing downtime and optimizing machine functionality.

Core Functions in Machinery

Spring plungers (also called spring-loaded devices) utilize internal compression springs to exert controlled force. When integrated into machinery, they perform three key roles:

1. Positioning: Locking components like jigs, fixtures, or guards into exact locations.

2. Vibration Damping: Absorbing shocks in high-motion systems (e.g., conveyors or presses).

3. Overload Protection: Safely retracting when excessive force is applied, preventing damage.

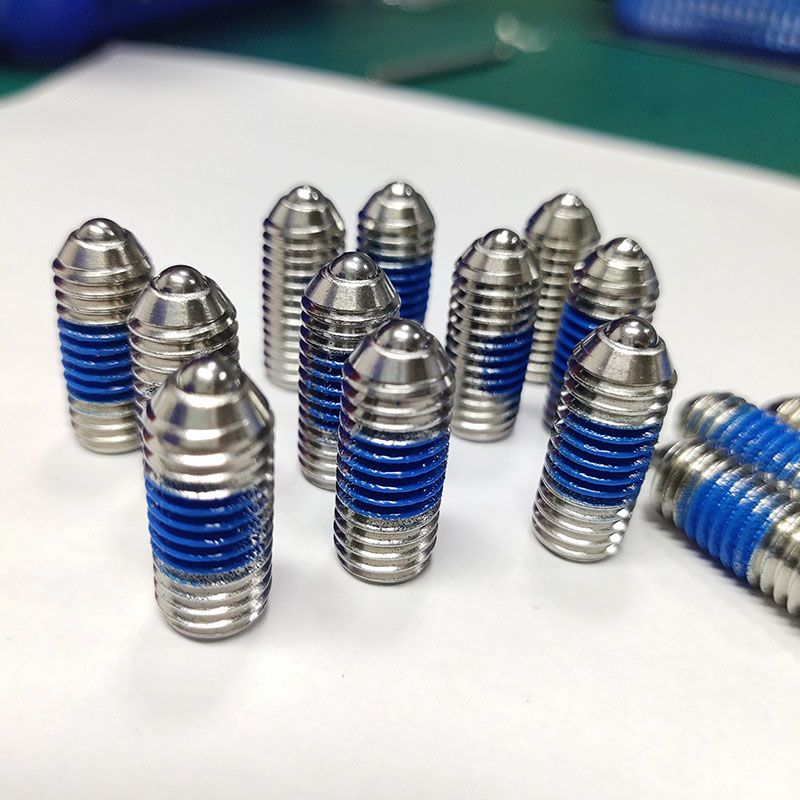

Spring Plunger

Technical Specifications

Industrial-grade spring plungers are engineered for resilience:

- Materials: Stainless steel bodies with hardened steel tips (e.g., ball or flat-nose designs).

- Load Capacity: 20–800 N, suitable for light alignment to heavy clamping.

- Environmental Resistance: IP-rated variants for dust, moisture, and chemical exposure.

- Mounting: Standard threaded bases (M4–M12) for seamless integration.

Applications Across Machinery

These components are ubiquitous in sectors demanding repeatable accuracy:

- Machine Tools: Securing tooling plates in CNC mills/lathes.

- Packaging Systems: Guiding cartons on filling lines.

- Agricultural Equipment: Maintaining tension in harvesting mechanisms.

- Assembly Automation: Aligning robotic arm end-effectors.

Optimize machinery function with spring-loaded plungers. Key for controlled part movement, detents, and indexing mechanisms requiring dependable force and reset.

Ball Spring Plunger

Why Spring Plungers Matter

Unlike complex electronic systems, spring plungers offer purely mechanical reliability. Their maintenance-free operation reduces lifecycle costs, while their fail-safe design ensures operational continuity. For engineers, selecting the right spring force and tip style (e.g., nylon for non-marring, carbide for wear resistance) is key to maximizing machinery uptime.

Availability

Leading manufacturers offer standardized and customizable spring plungers in metric/imperial sizes. Options include adjustable spring tension, locking rings, and corrosion-resistant coatings—ensuring compatibility with diverse industrial requirements.
