The "Invisible Assistant" of Precision Medical Instruments — Usage Methods and Selection Guide for Indexing Pins

Introduction

In the field of medical device manufacturing, the precision of every tiny component directly affects the reliability and safety of the equipment. Indexing Pins serve as high-precision positioning elements that play a critical role in advanced medical devices such as CT scanners, surgical robots, and in vitro diagnostic equipment.

1. What is an Indexing Pin? — The Core Precision Positioning Component in Medical Devices

An Indexing Pin is a high-precision mechanical positioning element primarily used to ensure accurate alignment between two or more components during assembly. Compared to standard locating pins, Indexing Pins are manufactured using higher-grade materials (such as stainless steel, ceramics, or special alloys) and subjected to tighter tolerance controls (typically within ±0.005mm) to meet the stringent stability and durability requirements of medical devices.

Key advantages of Indexing Pins in medical applications include:

• High-Precision Positioning: Ensures seamless alignment between device modules, avoiding performance issues caused by minor deviations.

• Anti-Loosening Design: Some Indexing Pins feature spring-loaded or tapered structures to prevent displacement over long-term use.

• Corrosion Resistance: Given the frequent exposure to disinfectants, body fluids, and other corrosive media, Indexing Pins must exhibit excellent corrosion resistance.

Mocayo’s Indexing Pins are crafted from medical-grade stainless steel (such as 316L) and precision-ground to ensure long-term stable performance, making them ideal for a wide range of high-end medical equipment.

2. Key Application Scenarios for Indexing Pins in Medical Devices

2.1 Modular Assembly of Imaging Equipment (CT, MRI, etc.)

In large-scale medical imaging equipment, Indexing Pins are essential for the precise positioning of critical components such as detectors and gantries, thereby preventing imaging deviations.
Mocayo’s Indexing Pins have been successfully integrated into CT equipment from several leading brands, significantly enhancing assembly efficiency.

2.2 Joint Positioning in Surgical Robots

Surgical robots demand extremely high motion precision. Indexing Pins provide stable angular locking at the joints of robotic arms, ensuring surgical accuracy.

2.3 Quick Module Changes in In Vitro Diagnostic Equipment

Devices such as biochemical analyzers and PCR machines require frequent replacement of testing modules. Indexing Pins enable rapid, repeatable positioning, greatly reducing manual adjustment time.

2.4 High-Precision Needs in Dental Equipment and Patient Monitors

Precision components such as dental drill heads and monitor probes rely on Indexing Pins to maintain stability over long-term use, preventing errors caused by loosening.

3. How to Choose High-Quality Indexing Pins — Professional Product Recommendations from Mocayo

The quality of Indexing Pins directly impacts the overall performance of medical equipment. Leveraging 8 years of experience in precision component manufacturing, Mocayo offers a comprehensive range of high-performance Indexing Pins tailored to diverse application needs.

3.1 Core Advantages of Mocayo's Indexing Pins

• Ultra-High Precision: Tolerance control within ±0.003mm, exceeding industry standards.

• Medical-Grade Materials: Options include 316L stainless steel and ceramics, compliant with ISO 13485 medical certification.

• Customization Services: Support for non-standard dimensions and surface treatments (such as nickel plating, passivation), tailored to your specific requirements.

3.2 Star Product Recommendations

• MS1171/MS1170 Series: Ideal for high-load applications, such as CT gantry positioning.

• MS1070/MS1071 Series: Miniature Indexing Pins, specially designed for surgical robots.

• MS1121 Series: Cam Action Indexing Pins that enhance efficiency in in vitro diagnostic equipment.

3.3 Success Stories

A leading global top-3 medical imaging manufacturer adopted Mocayo’s Indexing Pins, resulting in a 15% reduction in assembly time and an increase in product yield rate to 99.8%.

3.4 Custom Solutions

We offer free sample testing and technical consultation services to ensure perfect compatibility between our Indexing Pins and your equipment.

4. Proper Use and Maintenance of Indexing Pins

4.1 Installation Guidelines

• Clean mounting holes thoroughly to avoid debris affecting precision.

• Use dedicated tools to press-fit the pins, preventing tilt or damage.

4.2 Inspection and Replacement Cycle

• Regularly inspect for wear; replacement is recommended every 12 months (shorter intervals for high-frequency usage scenarios).

4.3 Long-Term Maintenance Tips

• Avoid exposure to strong acids or alkalis.

• Apply regular lubrication using medical-grade silicone grease.

4.4 Frequently Asked Questions

• Q: What should I do if the Indexing Pin becomes loose?
  A: It is recommended to replace it with a spring-loaded or tapered locking structure Indexing Pin.

• Q: How can I determine if an Indexing Pin has failed?
  A: If positioning deviations or visible wear marks are detected, the pin should be replaced immediately.

Enhance Medical Equipment Quality Starting with Mocayo Indexing Pins

Though small in size, Indexing Pins are the "guardians" of precision in medical devices.
Mocayo is committed to providing global medical device manufacturers with high-precision, high-reliability Indexing Pin solutions.
For samples or technical consultation, please contact our engineering team today to receive dedicated support!

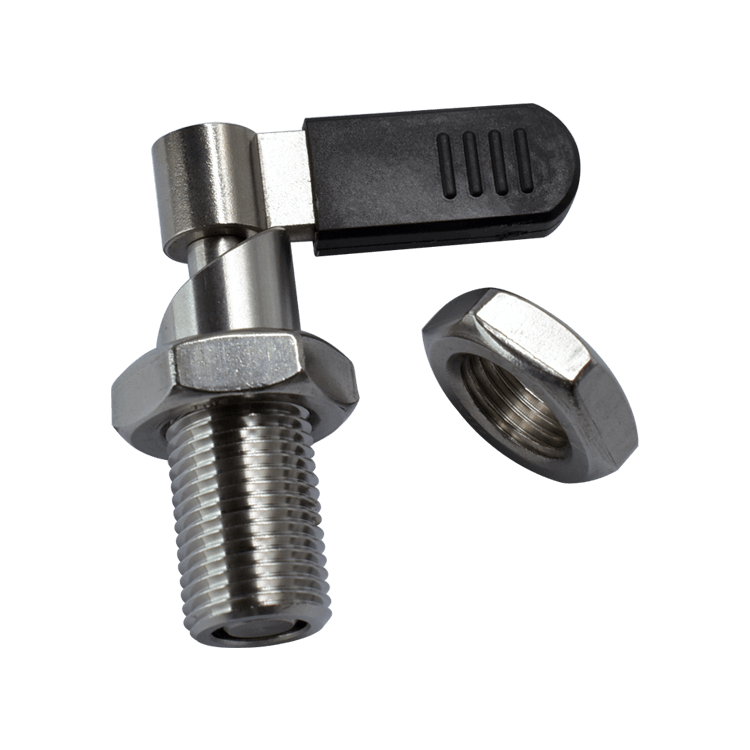

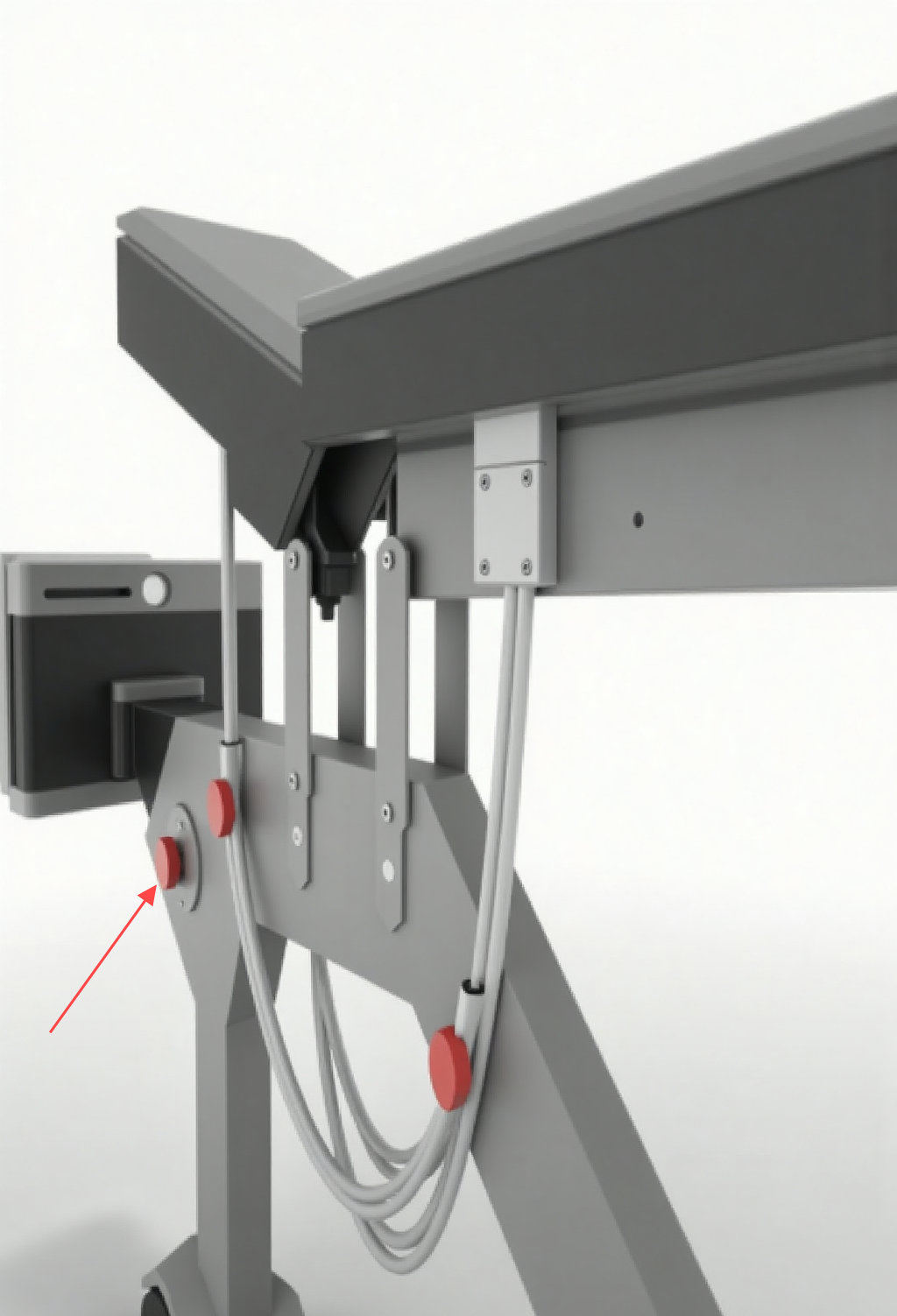

High-precision indexing pins for medical devices. Mocayo offers durable, corrosion-resistant indexing pins ideal for CT machines, surgical robots, and diagnostic equipment. Improve assembly accuracy and product reliability with our indexing pins.
