Understanding Ball Lock Pin Mechanisms
author: Fiona Yang
2025-07-10
Understanding Ball Lock Pin Mechanisms
Ball lock pins are ingenious mechanical solutions for fast, secure connections in industrial applications. Their clever design enables tool-free operation and fail-safe locking—ideal for scenarios demanding speed and precision. Here’s how they work and why Mocayo’s engineered versions excel where generic pins fall short.
The Core Mechanism: Elegant Efficiency

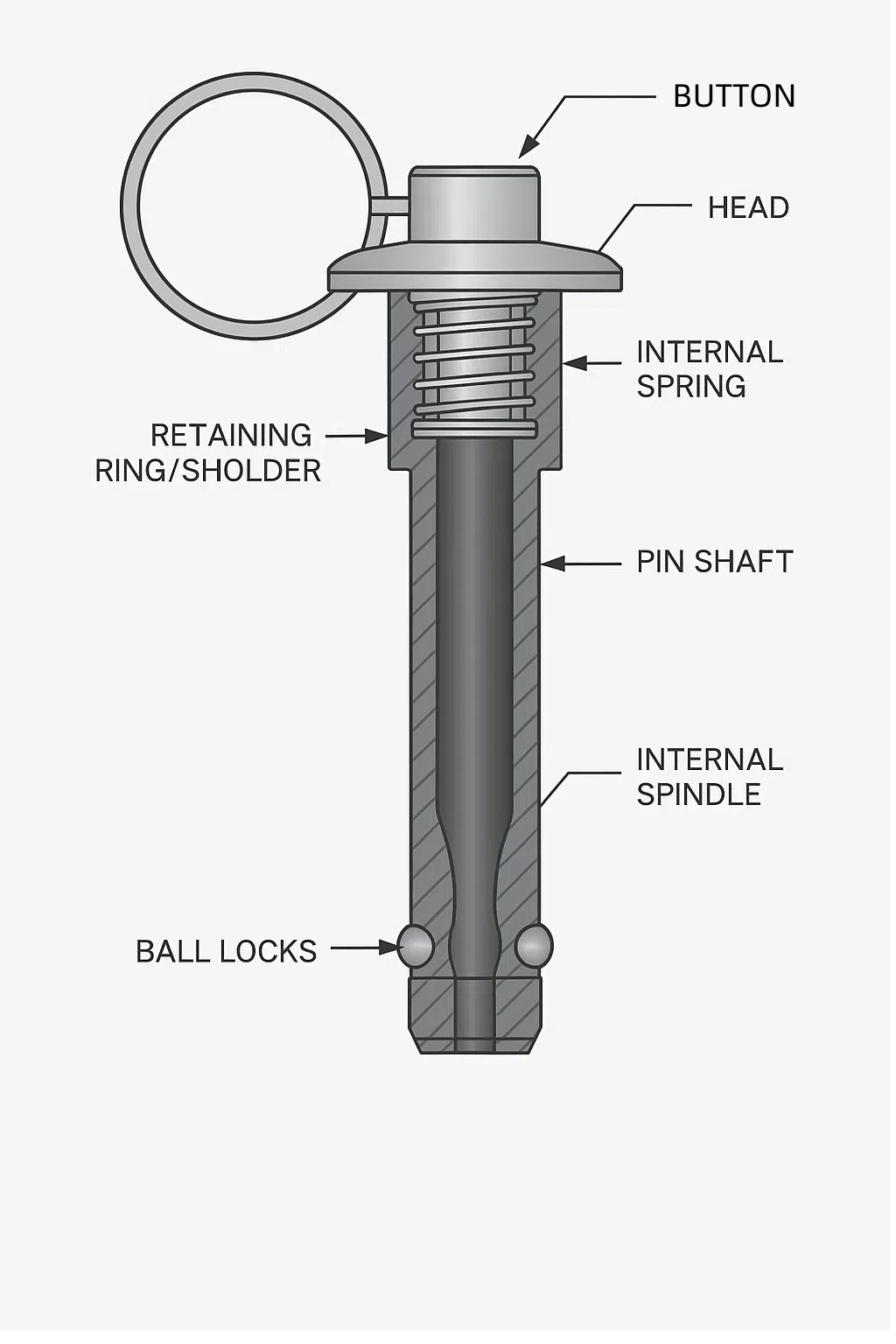

Locking Action:When inserted into a hole, spring-loaded balls inside the pin’s shaft pop outward, gripping the hole’s walls securely. This creates instant rigid alignment.
Instant Release:Pulling the collar or button retracts the balls, freeing the pin instantly. No tools, no twisting.
Vibration Resistance:The locked balls distribute pressure evenly, preventing loosening even in high-shock environments.
Where Ball Lock Pins Shine
Tooling & Fixtures: Quick mold/die swaps.
Robotics: Rapid end-effector changes.
Maintenance Access: Securing panels or covers.
Precision Alignment: Holding jigs or measurement tools.
Mocayo’s Advantage: Engineered for Trust
While basic pins wear unpredictably, Mocayo’s ball lock pins focus on enduring performance:
Premium Materials: Hardened steel or corrosion-resistant stainless variants.
Refined Mechanics: Smoother ball action and consistent engagement.
Safety-First Options: Locking collars to prevent accidental release.
Ergonomic Designs: Push-button, L-handle, or low-profile styles for any workspace.
Choosing Wisely
Consider:
Load Needs: Light duty vs. heavy industrial use.
Environment: Standard workshop or harsh/outdoor conditions.
Operation Style: One-handed speed VS anti-vibration security.
Mocayo’s Tip: Always pair pins with clean, properly sized holes.
Why Mocayo Stands Out
We craft pins for real-world reliability:
Rigorous Testing: For consistent performance cycle after cycle.
Adaptability: Custom configurations for unique challenges.
Engineering Support: Guidance for optimal application fit.
“Mocayo’s pins became our go-to for robotic arms. They simply… work.”
— Automation Team Lead, Industrial Systems Integrator
— Automation Team Lead, Industrial Systems Integrator
