What Are CNC Machines – Indexing Plunger Options for CNC

1. What Are CNC Machines: The Core Equipment of Modern Manufacturing

In today’s digital manufacturing era, CNC machines—Computer Numerical Control machines—have become the cornerstone of intelligent industrial transformation. These precision devices, powered by digital control systems, offer revolutionary advantages over traditional machine tools:

• Breakthrough Precision: CNC machines can achieve positioning accuracy up to ±0.002mm, enabling ultra-fine manufacturing.

• Remarkable Efficiency: Automated operations reduce human intervention by over 90%, significantly enhancing production throughput.

• Superior Complex Part Machining: With 5-axis linkage technology, CNC machines perform intricate spatial surface processing that was once impossible with conventional methods.

But what are CNC machines without the precise internal components that make such performance possible? Among them, the indexing plunger plays a pivotal role in ensuring accurate positioning and operational stability. As a core element within rotary indexing mechanisms, the quality of the indexing plunger directly influences the repeatability and vibration control of CNC machinery.

According to testing data from the Mocayo Engineering Lab, high-grade indexing plungers can improve a CNC rotary table's repeat positioning accuracy by up to 40% and reduce equipment vibration by 30%. Compared with traditional mechanical positioning solutions, modern indexing plungers offer key advantages such as easy adjustability, reliable locking, and long operational life. They are now a standard configuration in high-end CNC machines.

2. Mocayo’s Professional Indexing Plunger Solutions for CNC Machines

As a specialist in precision locating solutions, Mocayo offers a complete lineup of indexing plungers tailored for various CNC applications. Let’s explore our featured models:

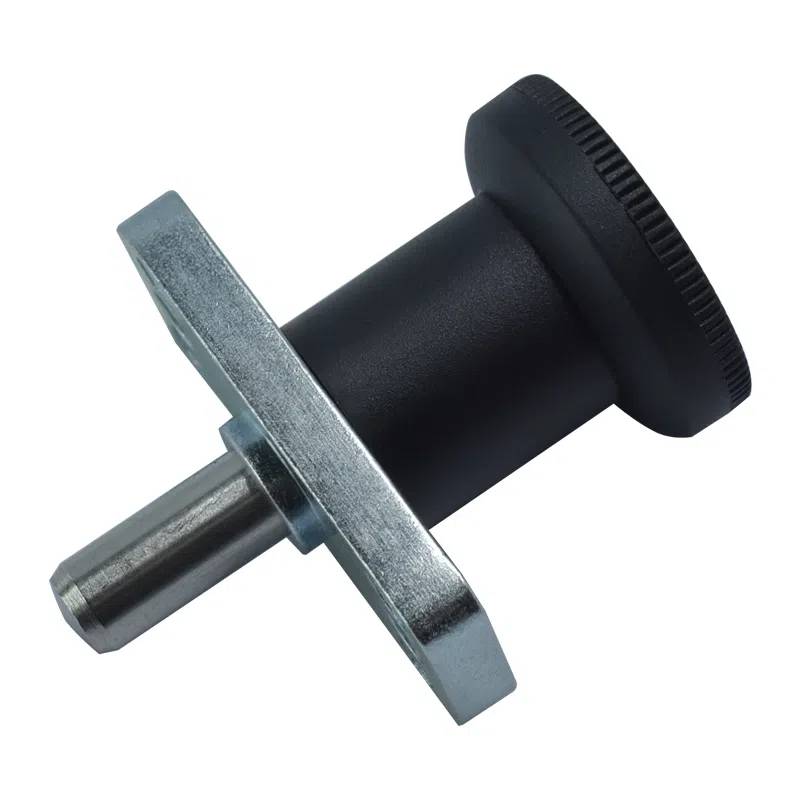

High-Precision Indexing Plunger – MS1170

Crafted from specialty alloy steel and processed through vacuum heat treatment and fine grinding, the MS1170 delivers repeatability of ±0.005mm with a hardness rating above HRC60. Its unique tapered locking structure ensures gap-free positioning. This plunger has been successfully integrated into several 5-axis machining centers, helping customers control indexing angle errors within 0.01°.

Heavy-Duty Indexing Plunger – MS2171

Featuring a multi-layer buffering design, this model offers a torque resistance of up to 300 N·m, 50% higher than conventional products. A major gantry milling machine manufacturer reported a 60% increase in positioning stability under heavy-cutting operations and a service life exceeding 1 million cycles.

Quick-Change Indexing Plunger – MS1120

Equipped with a patented quick-lock mechanism, the MS1120 enables tool changes in under 10 seconds. It supports both manual and pneumatic operation, making it ideal for high-mix low-volume production environments. One automotive component supplier achieved a 70% increase in changeover efficiency after deployment.

Corrosion-Resistant Indexing Plunger – MS1080

Manufactured with 316L medical-grade stainless steel and passivated for enhanced protection, this plunger withstands salt spray tests over 500 hours. With a surface roughness below Ra0.4μm, it fully meets the hygiene standards of the food and medical industries.

Custom Engineering Services

For extreme or unique CNC machining environments, we offer bespoke solutions—ranging from non-standard shapes to advanced surface treatments. A recent example includes a high-temperature indexing plunger designed for an aerospace project, capable of operating steadily at 400°C.

3. The Value of Indexing Plunger in CNC Applications

In the world of CNC machining, high-performance indexing plungers contribute significantly to productivity and quality:

Precision Positioning

An aerospace firm using the MS1080 indexing plunger reduced turbine disc dovetail angle errors from ±0.03° to ±0.01°, raising product pass rates to 99.5%. Its preloaded locking mechanism eliminates traditional mechanical backlash.

Enhanced Machining Stability

The HD series indexing plungers, used in large mold machining, reduced vibration by 40%, leading to a one-grade improvement in surface finish. Their integrated damping system absorbs impact loads effectively.

Improved Production Efficiency

QR series quick-change plungers enabled one precision component maker to perform 15 mold changes per hour, cutting changeover time from 20 minutes to 5 minutes. As a result, equipment utilization rose by 35%.

Lower Maintenance Costs

Long-term tracking indicates that CNC machines equipped with Mocayo indexing plungers show only one-third the precision degradation of conventional systems after two years. Annual maintenance costs were reduced by 45%.

4. Real-World Success Stories: Indexing Plunger for CNC Machines

Aerospace Industry

A leading jet engine blade manufacturer achieved angular indexing precision of 0.008° with Mocayo HP series plungers combined with a 5-axis rotary table. Blade surface errors were kept under 0.015mm, fully meeting aerospace quality standards.

Automotive Mold Sector

After implementing the MS1080 in large sheet metal mold manufacturing, positioning stability under continuous heavy-duty cuts increased by 60%. Surface finish met Class A quality, helping the client secure high-end vehicle contracts.

Electronics Assembly

On a connector production line, the QR series quick-change indexing plungers supported 20 changeovers per hour, perfectly adapting to multi-variety, small-batch production models.

Food & Beverage Machinery

In beverage filling systems, the MS1170 corrosion-resistant indexing plungers operated continuously for 2 years with no corrosion issues. Equipment uptime reached 99.8%, and annual maintenance savings exceeded ¥500,000.

Learn what are CNC machines and indexing plungers, essential components for precision and efficiency in modern automated manufacturing systems.

What Are CNC Machines With Precision Indexing Plungers?

At the heart of every precision CNC machine lies a series of silent but critical components. Among them, the indexing plunger stands out as a key to unlocking high accuracy, efficiency, and durability. At Mocayo, we’re committed to delivering reliable, high-performance indexing plunger options for CNC machines across industries.

Whether you need high-precision, heavy-duty, or corrosion-resistant solutions, our engineering team is ready to provide expert recommendations, product samples, and custom services tailored to your machining needs. Contact your Mocayo sales representative today and discover how our indexing plungers can elevate your CNC operations.
