What Is 316L Stainless Steel – Material Selection for Detent Pins


1. Understanding the Core Properties of 316L Stainless Steel

What is 316L stainless steel, and why is it so widely favored for manufacturing detent pins? As a premium austenitic stainless steel, 316L stands out due to its exceptional material composition. Its low carbon content (≤0.03%) effectively mitigates welding sensitization issues, while the addition of 2–3% molybdenum significantly boosts resistance to pitting corrosion.

According to Mocayo lab testing, 316L stainless steel demonstrates over three times the corrosion resistance of 304 stainless steel in a 5% NaCl solution—making it particularly suitable for detent pins used in environments exposed to coolants or chemical agents over time.

In terms of mechanical performance, 316L delivers a well-balanced profile:

• Tensile Strength: ≥ 485 MPa (per ASTM A240)

• Yield Strength: ≥ 170 MPa

• Elongation: ≥ 40%

These values ensure dimensional stability in repeated-use applications. For instance, 316L detent pins used in medical devices have shown less than 0.003 mm diameter variation after 5,000 cycles of insertion and withdrawal.

2. Engineering Criteria for Selecting Detent Pin Materials

When selecting the right material for detent pins, a multidimensional evaluation system is essential. The Mocayo engineering team has developed the “EPC” model (Environment – Performance – Cost), which is now adopted by multiple Fortune 500 companies:

Environmental Compatibility

• General industrial settings: 304 stainless steel is sufficient

• Chloride-rich environments (e.g., coastal areas): 316L is mandatory

• Ultra-clean environments: Recommend electrolytic-polished 316L

Performance Matching

• Light-duty applications: Standard 316L

• Heavy-load scenarios: Cold-worked 316L (up to HRC35)

• High-frequency use: Hard chrome-plated surface treatments

Cost-Benefit Considerations

While 316L has an upfront cost 30–40% higher than 304, long-term data from a chemical plant show that in corrosive environments, 316L detent pins actually reduce lifecycle cost by up to 60%, thanks to:

✓ Tripled maintenance intervals
✓ Lower replacement rates
✓ Reduced failure rate

3. Mocayo’s 316L Stainless Steel Detent Pin Product Line

Standard Precision Series

MLPS Series

• Material: ASTM F138 certified 316L stainless steel

• Surface: Electrolytic polish (Ra ≤ 0.2μm)

• Typical Use: Surgical robot guidance components

MXS Series

• Material: Cold-worked 316L

• Hardness: HRC32–35

• Load Capacity: Radial 3T / Axial 5T

• Use Case: Molding systems in injection machines

• Surface Finish: Passivation + Hard chrome plating

• Salt Spray Resistance: 2000 hours with no visible rust

• Recommended for: Desalination and marine equipment

Customization Services

Mocayo also provides comprehensive technical solutions, including:

✓ Non-standard size machining (min. Φ1mm)
✓ Special guide structures
✓ Modular detent pin systems
✓ Rapid prototyping within 5 business days

A semiconductor equipment manufacturer reported a significant drop in particulate contamination after switching to the MXS series, with product yield increasing to 99.9%.

4. Professional Selection & Technical Support

Systematic Selection Process

1. Fill in operating condition assessment form (template provided)

2. Perform load calculations (Mocayo software available free)

3. Determine optimal surface treatment

4. Validate with accelerated lab testing

Installation Guidelines

• Press-fitting
  Recommended pressure: 20–30 MPa
  Chamfer angle: 15–30°

• Lubrication Management
  Food-grade environments: NSF H1-certified grease
  High-temperature applications: Molybdenum disulfide lubricants

Quality Assurance System

• Full traceability with steel mill certificates

• 100% dimensional verification (CMM reports available)

• Industry certifications: ISO 13485 for medical devices

Mocayo’s technical support includes:

★ Free material analysis
★ Application-specific simulation
★ 3D modeling support
★ Total lifecycle cost analysis

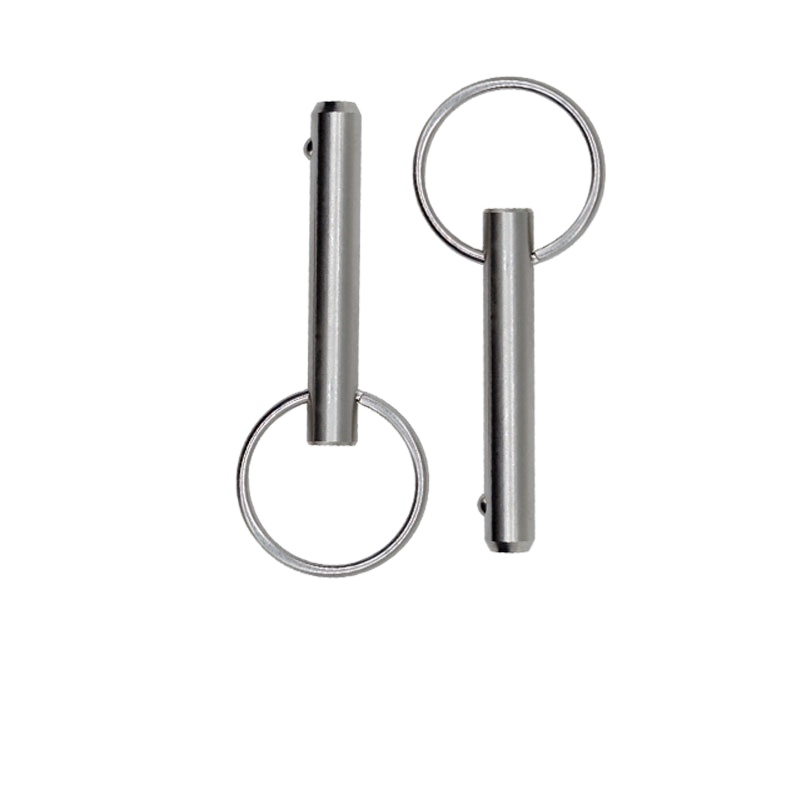

What Is 316L Stainless Steel & Detent Pins? 316L stainless steel offers superior corrosion resistance, ideal for durable detent pins in marine and industrial applications. Discover high-performance stainless steel components today!

By combining smart material selection with professional engineering support, our 316L detent pins help customers achieve:

→ 25% improvement in positioning accuracy
→ 40% reduction in maintenance costs
→ 30% increase in overall equipment efficiency

Visit the Mocayo official website for the complete product catalog or contact your local sales representative to request samples. Our engineering support team is available 24/7 to provide expert technical consultation.
