What Is A CNC Machine - Indexing Plunger Application in CNC

The Synergy Between CNC Machines and Indexing Plungers

What is a CNC machine? A CNC (Computer Numerical Control) machine is regarded as the "mother machine" of modern manufacturing. Its core value lies in achieving micron-level machining accuracy (±0.001mm) through digital computer control systems. In achieving such precision, the indexing plunger plays an irreplaceable role.

According to Mocayo engineering research data, high-quality indexing plungers can improve the repeat positioning accuracy of CNC rotary tables by 40% and reduce equipment vibration by 30%. Compared with traditional mechanical positioning methods, modern indexing plungers offer three significant advantages: first, easy adjustability, enabling precise positioning through simple locking mechanisms; second, reliability, with anti-loosening structures capable of withstanding dynamic loads up to 300N·m; and most importantly, smart adaptability to automated production. In a 5-axis CNC machining center case study, our indexing plungers helped customers reduce impeller angle deviation to within 0.01° and improved product yield to 99.5%.

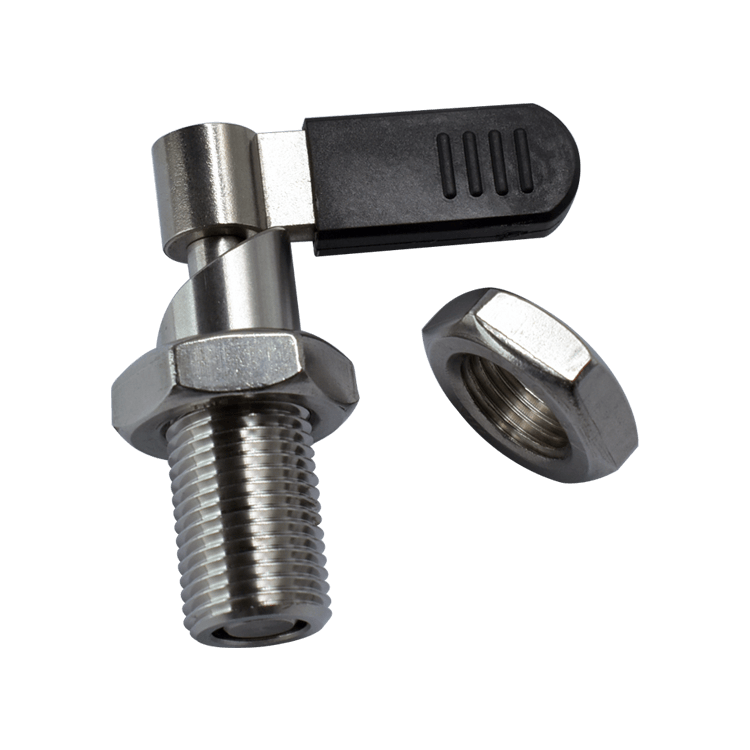

Mocayo Indexing Plungers: A Benchmark in Precision Positioning

With 10 years of dedication to precision positioning, Mocayo has developed a comprehensive range of indexing plungers:

• MS1170 High-Precision Indexing Plunger is made from special alloy steel, treated with vacuum heat treatment and precision grinding. It achieves repeat positioning accuracy of ±0.005mm. Its unique titanium nitride coating (HRC65) provides eight times the wear resistance of standard products. A jet engine blade project using this series successfully reduced tenon angle errors from ±0.03° to ±0.01°.

• MS1171 Heavy-Duty Indexing Plunger features an innovative multi-layer buffer design, delivering dynamic load capacity up to 300N·m. In large gantry milling machines under heavy cutting conditions, the plunger exhibits excellent shock resistance and helps reduce equipment failure rates to below 0.5%.

• MS1121 Quick-Change Indexing Plunger was developed for flexible manufacturing needs. It enables mold switching in under 10 seconds through its locking mechanism. Stable performance in dusty and oily environments makes it ideal for multi-variety auto parts production.

• MS1130 Medical-Grade Indexing Plunger uses 316L stainless steel with electrolytic polishing down to Ra0.4μm. FDA-certified for clean design, it's perfectly suited for surgical robots and other medical equipment.

We also provide full customization services, including non-standard size designs and compatibility with extreme temperatures (-50℃ to 400℃). Our vacuum-environment indexing plunger, recently developed for a space project, has passed a 1000-hour space simulation test.

Four Core Values Delivered by Indexing Plungers

• Precision Positioning: In a turbine disc project, the MS1171 indexing plunger enhanced tenon angle accuracy to 0.008° and increased assembly efficiency by 50%. The unique pre-tightening structure eliminated gaps found in traditional positioning.

• Machining Stability: The damping characteristics of the MS1170 indexing plunger reduced cutting vibrations by 50%, improving surface roughness by one grade. Its built-in buffer mechanism effectively absorbs high-frequency shocks, protecting machine guides and spindles.

• Production Efficiency: The MS1130 helped a precision parts manufacturer achieve 15 quick mold changes per hour, increasing equipment utilization by 35%. Automated indexing reduced manual intervention time by 90%.

• Maintenance Cost Control: Long-term tracking shows that CNC machines using Mocayo indexing plungers experience only one-third the precision degradation of standard products over two years, cutting annual maintenance costs by 45%.

Success Stories Across Industries

In the aerospace sector, a commercial aircraft using our MS1120 indexing plunger maintained 0.01mm fit precision after 50,000 cabin door opening/closing tests, performing reliably across extreme temperatures from -55℃ to 80℃.

In automotive manufacturing, the MS1170 set a record on large stamping lines for exterior panels: it operated continuously for 8,000 hours under 30-ton impact loads without abnormal wear, extending die replacement cycles from 2 weeks to 6 months and saving over 2 million RMB annually in maintenance. Discover what is a CNC machine and how an indexing plunger enhances precision, repeatability, and efficiency in automated machining, ideal for aerospace, automotive, and medical industries seeking high-performance solutions.

Mocayo continues to push the boundaries of precision positioning technology. With a 2000-square-meter temperature-controlled clean workshop, over 50 precision machines, and 20 years of industry experience, we invite you to contact our technical consultants for a customized indexing plunger solution and unlock new levels of precision for your CNC equipment.

What is a CNC machine? It's the foundation of modern manufacturing. And indexing plungers are the key to unlocking its full potential.
