What Is a Detent Pin?

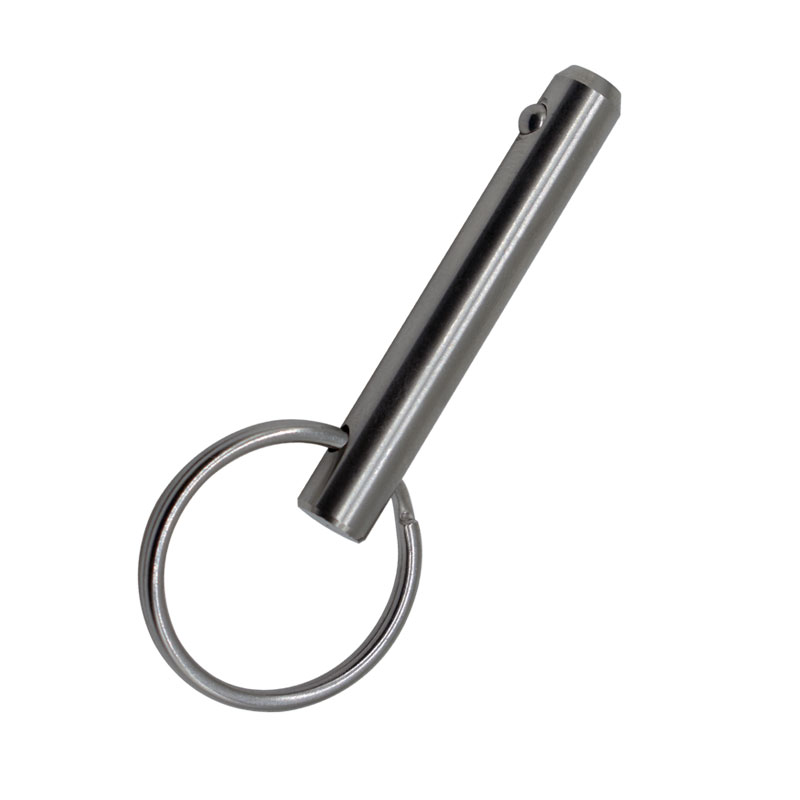

A detent pin, also known as a quick-release pin, is a fastening device designed for rapid and secure connections in various applications. It features a solid shank with spring-loaded locking balls that protrude to hold the pin in place and retract when the pin is removed. This mechanism allows for easy insertion and removal without the need for additional tools.

Design and Functionality

The primary components of a detent pin include:

• Shank: The main body of the pin, typically cylindrical, that fits into the corresponding hole of the components being joined.

• Spring-Loaded Balls: Located near the end of the shank, these balls extend outward due to an internal spring mechanism. When inserted into a hole, the balls compress and then expand to secure the pin in place.

• Pull Ring or Handle: Attached to the opposite end of the shank, this feature facilitates easy manual removal of the pin.

The detent mechanism ensures that the pin remains securely in place during operation but can be quickly removed when necessary, making it ideal for applications requiring frequent assembly and disassembly.

Common Applications

Detent pins are utilized across various industries due to their versatility and ease of use:

• Construction and Scaffolding: Used to assemble and adjust scaffolding components swiftly, ensuring both stability and flexibility.

• Automotive and Machinery: Employed in securing adjustable parts or accessories that require periodic removal or repositioning.

• Agricultural Equipment: Facilitate the attachment and detachment of implements, allowing for efficient equipment changes in the field.

• Sports Equipment: Found in gear like adjustable basketball hoops or exercise machines, enabling quick height or position adjustments.

Material Considerations

Detent pins are manufactured from various materials to suit different environmental conditions and strength requirements:

• Stainless Steel: Offers excellent corrosion resistance, making it suitable for marine or outdoor applications.

• Carbon Steel: Provides high strength and is often used in heavy-duty applications where corrosion is less of a concern.

• Aluminum: Chosen for its lightweight properties, ideal for applications where weight reduction is crucial.

Advantages

The use of detent pins offers several benefits:

• Quick Installation and Removal: The spring-loaded mechanism allows for fast and tool-free operation, enhancing efficiency.

• Secure Holding: The protruding balls ensure a firm hold, reducing the risk of accidental disengagement.

• Versatility: Available in various sizes and materials, detent pins can be tailored to specific application needs.
