What is Anodized Aluminum-Quick Release Pin

Exceptional Properties of Anodized Aluminum Materials

What is Anodized Aluminum? It is a high-performance surface treatment process that forms a dense oxide layer on aluminum through electrolytic oxidation. Mocayo utilizes advanced hard anodizing technology to generate an oxide film of 50±5μm thickness on 6061-T6 aluminum alloy, achieving a surface hardness of over HV800, which is 5 to 8 times harder than the base material. The resulting oxide layer features a unique porous honeycomb structure that, once sealed, provides a robust protective barrier.

Explore what is anodized aluminum, a surface treatment that strengthens the quick release pin and resists wear, moisture, and extreme use.

According to tests conducted in the Mocayo laboratory, Quick Release Pins treated with anodized aluminum display three major advantages: outstanding wear resistance, excellent corrosion resistance, and a stable surface friction coefficient ranging from 0.15 to 0.25, ensuring smooth and reliable insertion and removal. These benefits make anodized aluminum an ideal material for manufacturing Quick Release Pins.

Superior Strength-to-Weight Ratio

It is particularly noteworthy that anodized aluminum Quick Release Pins weigh only 35% of their steel counterparts, while offering comparable strength. Our comparative testing indicates that a 10mm diameter anodized aluminum Quick Release Pin can reach a tensile strength of 310MPa, which is fully capable of supporting demanding industrial applications.

Key Technical Features of Quick Release Pins

As a critical component for rapid assembly and disassembly, the performance of a Quick Release Pin directly impacts equipment maintenance efficiency and operational safety. Mocayo provides two anodizing options:

• Standard Grade: 25μm anodized film, suitable for general industrial use;

• Enhanced Grade: 50μm hard anodized finish, ideal for harsh working conditions.

Field data shows that the enhanced version delivers three times the lifespan of standard pins when exposed to cutting fluids and humid environments.

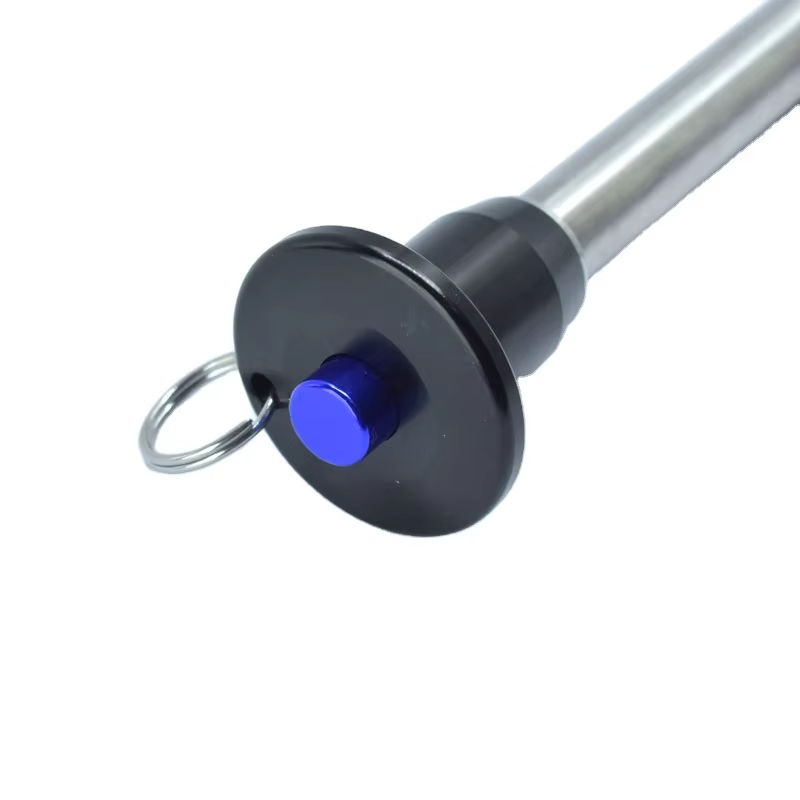

Recessed Button Quick Release Pin

Ball Lock Quick Release Pin

Mocayo's Quick Release Pins are manufactured to exacting international standards:

• Dimensional Accuracy: Diameter tolerance within ±0.01mm

• Mechanical Strength: Tensile strength ≥ 310MPa

• Durability: Exceeds 50,000 insertion/extraction cycles

• Environmental Resistance: Stable operation between -40°C to +120°C

Mocayo’s Anodized Aluminum Quick Release Pin Solutions

Engineered to military-grade manufacturing standards, Mocayo’s Quick Release Pin product line offers reliable and precise fast connection solutions across multiple industries. We provide a full size range from 3mm to 20mm, with customizable 2–6 locking balls, tailored to various load-bearing needs.

All products undergo rigorous triple testing:

• 500,000 fatigue test cycles

• 1000-hour salt spray test

• Extreme load-bearing performance evaluations

We also offer comprehensive customization services:

• Size Customization: Non-standard diameters and lengths available

• Surface Treatment: Oxide film thickness from 20μm to 100μm

• Special Applications: Medical-grade low-particle options

• Branding: Laser engraving of logos or serial numbers
