What Is Indexing Plunger Latch Mechanisms

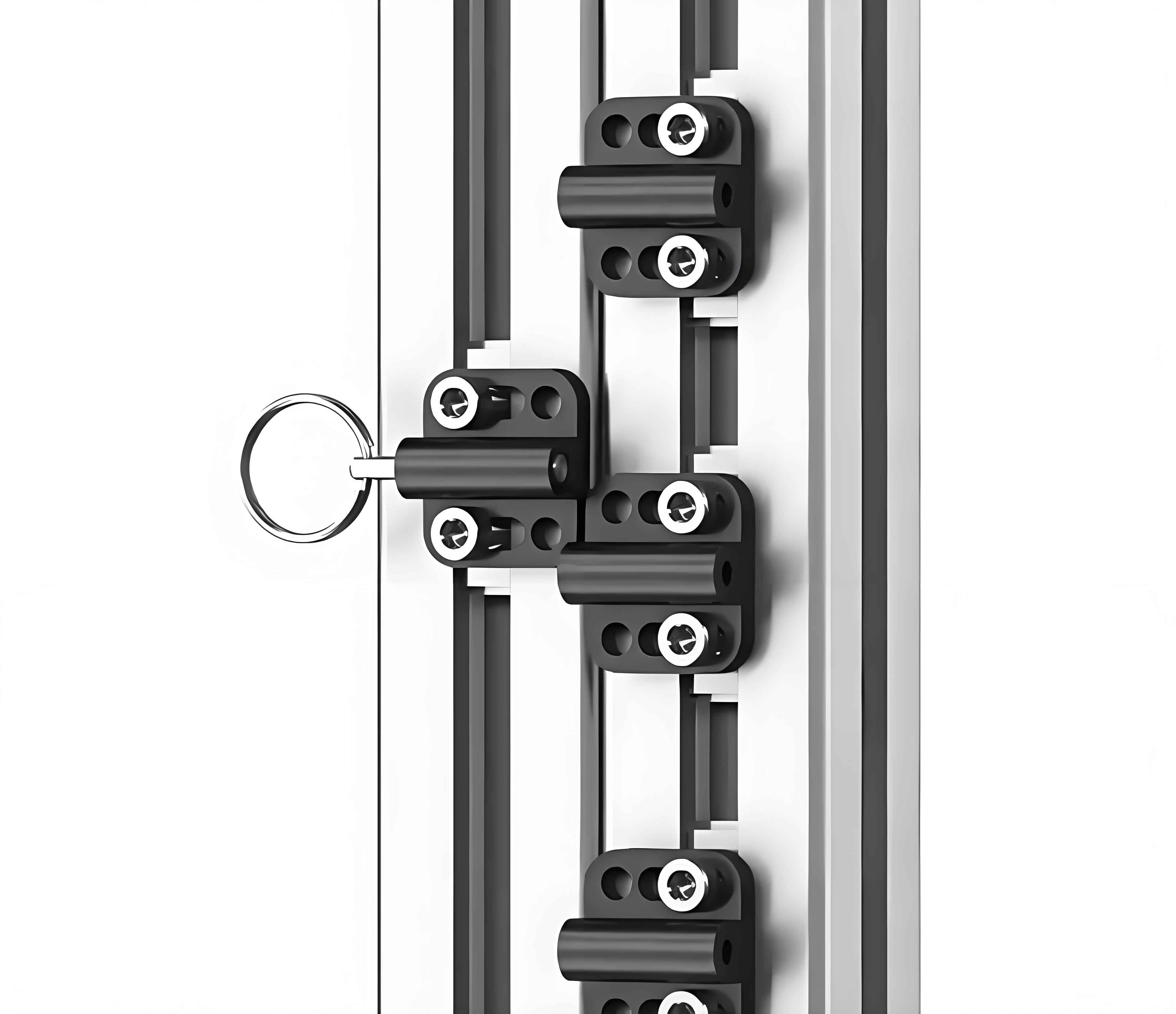

Indexing Plungers are the indispensable components for positioning and locating in wide range industries such as jigs and fixture, medical equipments, furniture and clamping mold. Indexing Plungers are usually considered as a hand retractable locking device. It consist of a index pin tip, threaded plunger body internal spring and a knob. Mocayo Index plungers have various styles and designs. Such as cam action indexing plungers, plate mount retractable spring plunger, mini indexing plunger and t handle spring plunger. There's another special type of spring loaded index plunger, which is designed with horizontal-mount plate known as indexing plunger latch mechanisms. The horizontal-mount can be applied horizontally, which means parallel to the platform.
Working Principle
Use tools for installing the plate mount on the platform of your project while the workpieces need to travel an axis horizontally.
When the user pulls or rotates the compact round knob grip, the plunger pin retract into the positioning hole, allowing the mechanical component to insert or adjust its position.
After adjustment is complete, releasing the handle allows the spring to push the plunger back into the positioning hole automatically, achieving precise locking.
The Indexing Plunger Latch Mechanisms allow the locking pin remain retracted until releasing the knob returning to the original position.
When the user pulls or rotates the compact round knob grip, the plunger pin retract into the positioning hole, allowing the mechanical component to insert or adjust its position.
After adjustment is complete, releasing the handle allows the spring to push the plunger back into the positioning hole automatically, achieving precise locking.
The Indexing Plunger Latch Mechanisms allow the locking pin remain retracted until releasing the knob returning to the original position.
Key Features
1. Indexing: Determines the precise position or angle of components.
2. Locking: Secures components in place to prevent movement.
3. Quick Release: Easily disengages by pulling the knob.
4. Safety Latching: Prevents accidental loosening or vibration-induced detachment.
1. Indexing: Determines the precise position or angle of components.
2. Locking: Secures components in place to prevent movement.
3. Quick Release: Easily disengages by pulling the knob.
4. Safety Latching: Prevents accidental loosening or vibration-induced detachment.
Applications In Various Industries
Mechanical Equipment and Industrial Automation Sector
This represents the primary application areas for the Indexing Plunger Latch Mechanism.
1. Mechanical Positioning Systems: Enables precise, repeatable positioning for moving components in equipment such as slides, fixtures, and brackets.
2. Adjustment and Calibration Devices: On automated production lines, operators can easily adjust positions by pulling out the plunger, then re-locking it to ensure consistent positioning each time.
3. Quick Change Systems: Facilitates rapid replacement of molds, fixtures, or tooling to enhance production efficiency.
4. Safety Guards and Access Doors: Latch plungers secure door panels, ensuring secure closure during equipment operation.
Typical Scenario: CNC machinery, assembly lines, packaging equipment, printing machinery, textile machinery, automatic feeders, etc.
This represents the primary application areas for the Indexing Plunger Latch Mechanism.
1. Mechanical Positioning Systems: Enables precise, repeatable positioning for moving components in equipment such as slides, fixtures, and brackets.
2. Adjustment and Calibration Devices: On automated production lines, operators can easily adjust positions by pulling out the plunger, then re-locking it to ensure consistent positioning each time.
3. Quick Change Systems: Facilitates rapid replacement of molds, fixtures, or tooling to enhance production efficiency.
4. Safety Guards and Access Doors: Latch plungers secure door panels, ensuring secure closure during equipment operation.
Typical Scenario: CNC machinery, assembly lines, packaging equipment, printing machinery, textile machinery, automatic feeders, etc.
Fixtures & Jigs
In tooling manufacturing, Indexing Plunger Latch Mechanisms serve as indispensable positioning components.
1. Precision fixture positioning: Ensures repeatable positioning accuracy for workpieces or jigs.
2. Modular tooling: Enables rapid release and locking via latch structures during module replacement.
3. Adjustable Clamping: Movable components in adjustable fixtures are positioned via plungers to prevent misalignment.
In tooling manufacturing, Indexing Plunger Latch Mechanisms serve as indispensable positioning components.
1. Precision fixture positioning: Ensures repeatable positioning accuracy for workpieces or jigs.
2. Modular tooling: Enables rapid release and locking via latch structures during module replacement.
3. Adjustable Clamping: Movable components in adjustable fixtures are positioned via plungers to prevent misalignment.
FAQ
Q: What's the difference between plate mount retractable spring plunger and Indexing Plunger Latch Mechanism?
A: Both are used to lock and positioning. Plate mount retractable spring plunger features a flanged structure that allows mounting on a flat surface, the pin will be retracted until realeasing the knob while the Indexing Plunger Latch Mechanisms is mounting where the parts need to operate in a horizontal axis.
Q: What material do you make for the indexing plunger latch mechanisms?
A: We have stainless steel and black oxided steel options for you.
Q: What's the MOQ for ordering index plunger?
A: 100-200
Durable Indexing Plunger Latch Mechanisms and plate mount indexing plungers ideal for mechanical positioning, automation, and quick release systems.
