What's The Fuction Of Flange Ball Plunger
author: Lucia Liu
2025-11-07
Table of Contents
What's The Fuction Of Flange Ball Plunger
In modern industrial manufacturing, precise positioning and reliable fixation are critical to ensuring stable equipment operation. As a compact yet high-performance positioning component, the Flange Ball Plunger plays an irreplaceable role in mechanical equipment, automated production systems, and precision assembly applications. Its steel ball positioning and spring-supported design achieves a perfect balance between flexibility and stability, making it the preferred choice for engineers worldwide.
What is a Flange Ball Plunger?
A Flange Ball Plunger is a spring loaded positioning component featuring a flange structure, composed of a steel ball, spring, and extension assembly. Its primary function is to enable workpieces to rapidly, accurately, and repetitively return to a designated position, ensuring consistent and reliable equipment operation.
Compared to standard ball plungers, its flange design offers superior mounting stability and anti-loosening properties, making it particularly effective in vibrating environments or high-speed machinery.
A Flange Ball Plunger is a spring loaded positioning component featuring a flange structure, composed of a steel ball, spring, and extension assembly. Its primary function is to enable workpieces to rapidly, accurately, and repetitively return to a designated position, ensuring consistent and reliable equipment operation.
Compared to standard ball plungers, its flange design offers superior mounting stability and anti-loosening properties, making it particularly effective in vibrating environments or high-speed machinery.
Structural Composition and Functional Analysis of the Flange Ball Plunger
1.Flange
Enhances mounting surface stability
Prevents axial movement or rotation during tightening
Ensures long-term positioning performance
2.Ball
Directly contacts the positioned component
Smooth spherical surface ensures precise positioning with minimal wear
3.Spring
Provides continuous elastic thrust
Maintains flexible rebound capability for positioning
4.Body Structure
Connects and supports internal mechanisms
Working Principle of the Flange Ball Plunger
Its spring loaded mechanism is remarkably intuitive and efficient:
- A spring pushes the steel ball outward
- The steel ball enters the device's positioning hole or groove
- Achieving precise positioning and retention
- The steel ball retracts when subjected to external force
- The device completes rapid loading/unloading or reset
Why Choose Mocayo's Flange Ball Plunger?
As a professional provider of industrial positioning solutions, Mocayo rigorously selects raw materials and manufacturing processes:
Materials available upon request:Stainless steel,plastic,brass
- Precision manufacturing processes
- Customizable specifications and diverse designs
- Stable delivery schedules and global supply services
- Passed corrosion resistance and fatigue life testing
- Supports sample testing and technical selection

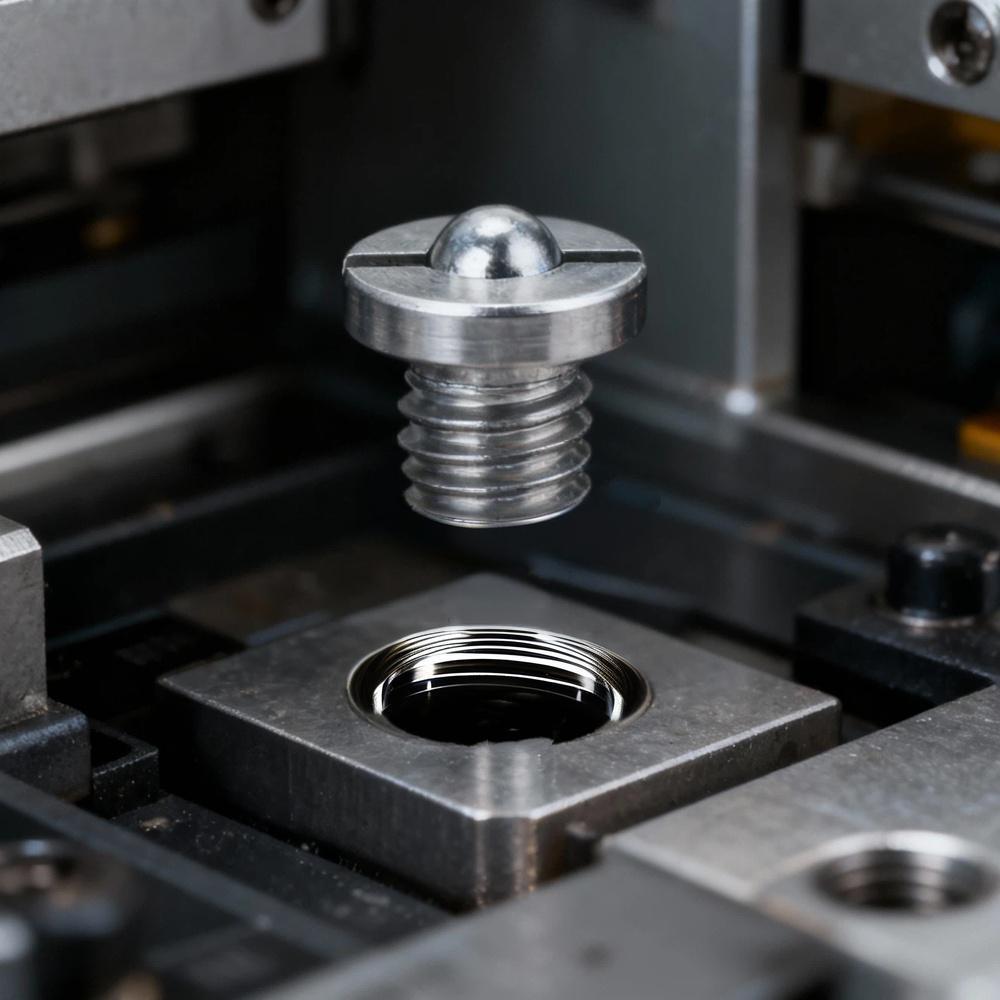

Durable flange ball plunger made of stainless steel, plastic, and brass ensures smooth locking and long service life.
FAQ
Q: What is the best material for flange ball plunger?
A: For Flange Ball Plungers, the optimal material depends on the operating environment and performance requirements: Stainless steel is the ideal choice when high strength and corrosion resistance are needed; brass is suitable for applications requiring good rust resistance and lubrication properties; while plastic offers advantages in equipment demanding lightweight construction, insulation, or low noise levels. Selecting the appropriate material ensures the Flange Ball Plunger delivers optimal stability and service life across diverse industrial environments.
Q: When is the lead time for flanged ball plunger?
A: 100-200
Q: Do you offer custom design service?
A: We provide free custom design for you and our professionals won't tailor it for you until you satisfied.
