Understanding the Mechanism of Spring-Loaded Plungers

Spring-loaded plungers are essential components in various mechanical applications, providing controlled movement, positioning, and locking functions. These small yet powerful devices use a built-in spring mechanism to apply consistent force, ensuring secure engagement and reliable performance. This article explores the working mechanism, key components, and applications of spring-loaded plungers.

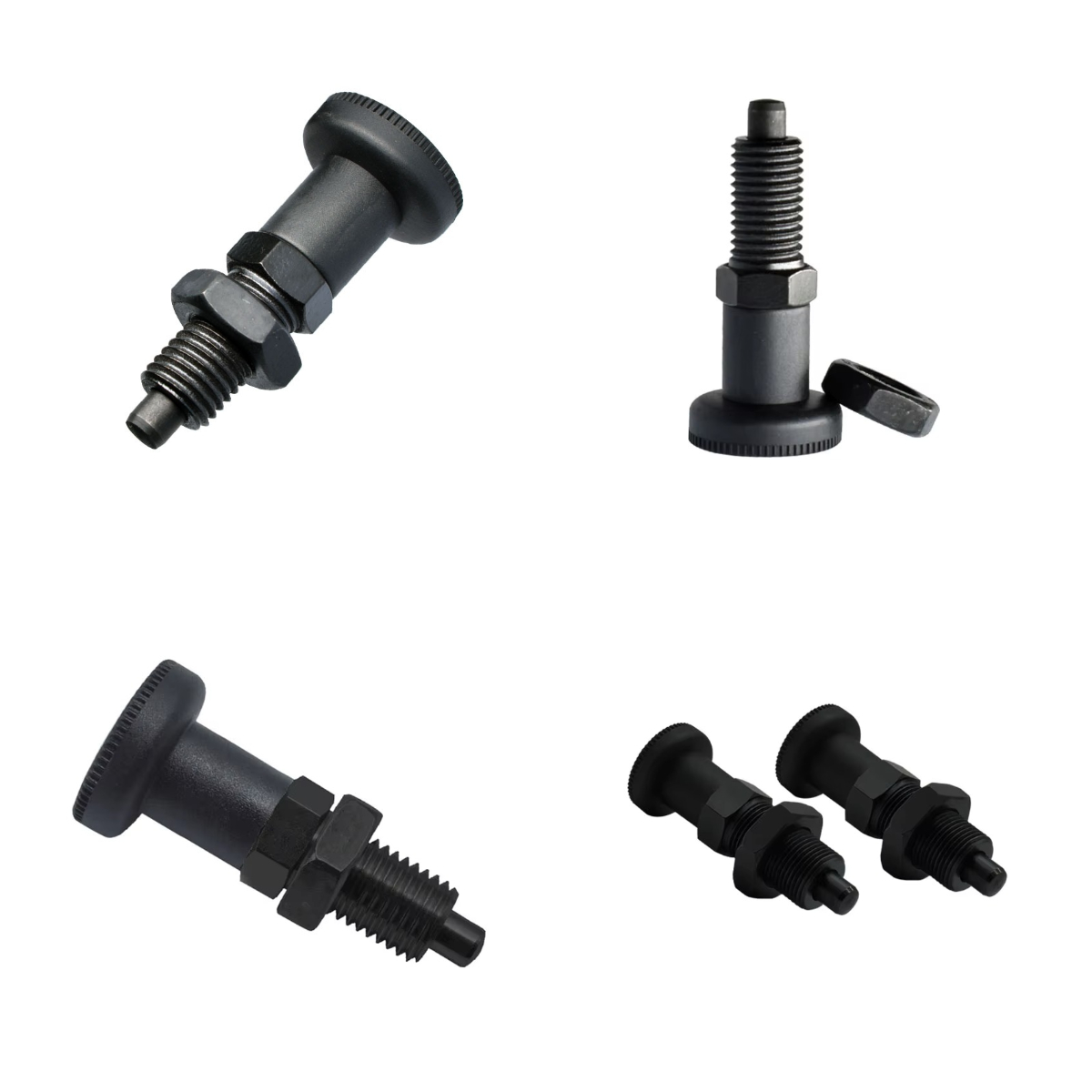

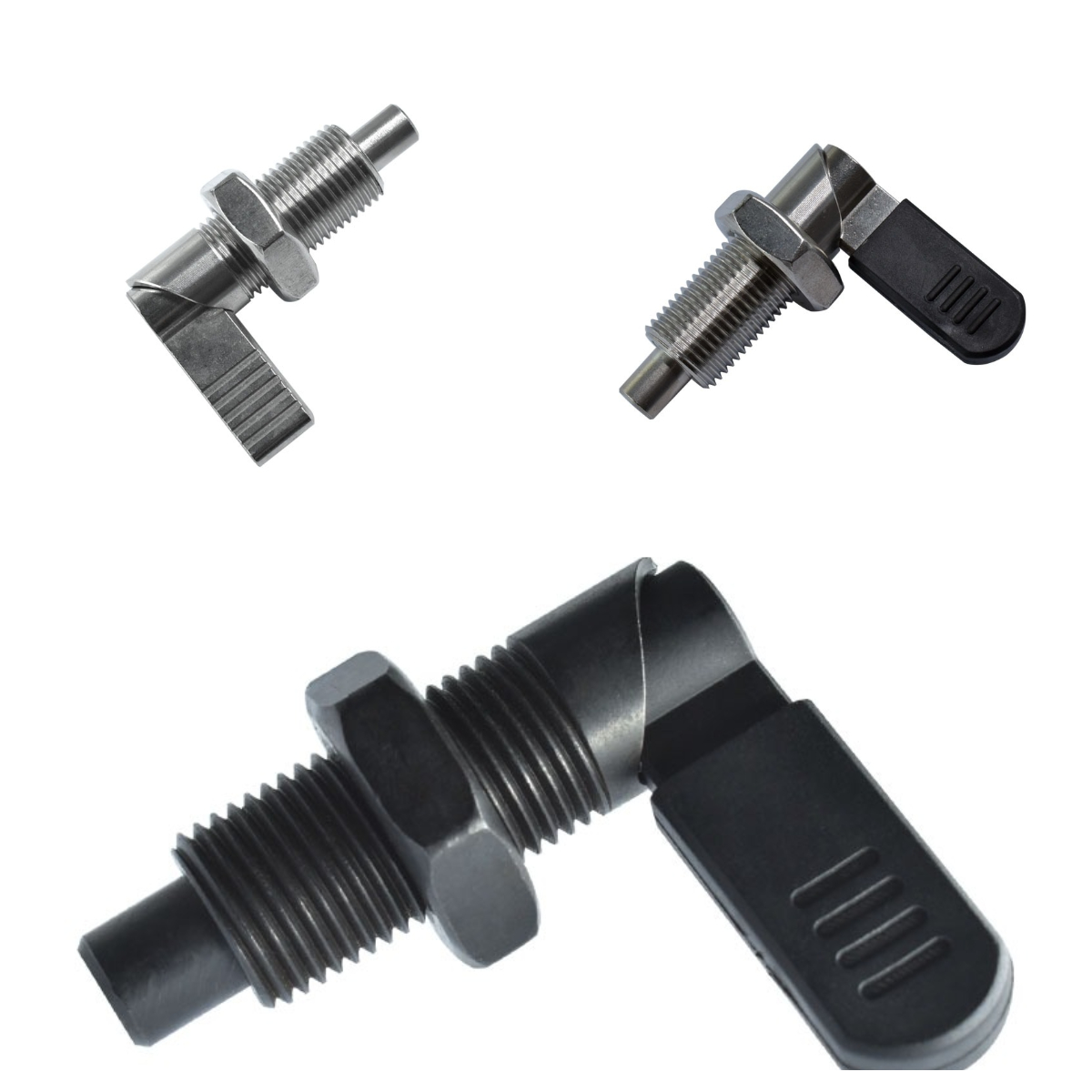

Types of Spring-loaded plungers From Mocayo

How Do Spring-Loaded Plungers Work?

The fundamental mechanism of a spring-loaded plunger involves three main parts: the plunger body, internal spring, and nose (or tip). The internal spring provides tension, allowing the plunger to extend or retract based on applied force. When engaged, the plunger exerts pressure on a surface or locks into a hole, securing parts in place. Once the force is removed, the spring automatically returns the plunger to its original position.

Key Components of a Spring-Loaded Plunger

1. Plunger Body – The housing that contains the internal components, usually made of metal or plastic for durability.
2. Internal Spring – The core element providing the force required for retraction and engagement.
3. Plunger Nose (Tip) – The contact point that interacts with surfaces, available in various shapes (ball, pin, or rounded) depending on the application.
4. Threaded or Press-Fit Design – Some plungers have external threads for easy installation, while others use a press-fit design for secure placement.

Applications of Spring-Loaded Plungers

Spring-loaded plungers are used in a wide range of industries, including:

• Machinery & Automation – Used for positioning, indexing, and locking mechanical parts.
• Fixtures & Workholding – Ensures secure clamping and quick adjustments in manufacturing setups.
• Electronics & Consumer Products – Found in devices requiring controlled movement or detent positioning.
• Aerospace & Automotive – Utilized for securing panels, doors, and adjustable components.

Advantages of Spring-Loaded Plungers

• Self-Returning Action – The built-in spring ensures automatic retraction.
• Reliable Positioning – Provides consistent engagement for secure locking.
• Compact & Versatile – Available in various sizes and materials to fit different applications.
• Easy Installation – Threaded designs allow quick assembly and replacement.

Explore our spring loaded plungers for precise positioning and smooth operation in industrial applications. Durable and reliable, they ensure optimal performance. Contact us for custom solutions today.
