3/8" Ball Lock Pins: The Industry Standard for Secure Quick-Release Fastening

Executive Summary

The 3/8" (9.525mm) Ball Lock Pin has emerged as the preferred quick-release fastener across multiple industries, offering the ideal balance between holding strength and compact design. This comprehensive guide explores its technical specifications, industry applications, and why it's becoming the gold standard for equipment requiring secure yet rapid disengagement.

Standard Measurements (Imperial & Metric)

Figure 1: 3/8" Ball Lock Pin dimensional diagram showing critical measurements

Material Options

• Carbon Steel (Grade 8): 150,000 PSI tensile strength

• Stainless Steel (316): Corrosion-resistant for marine/medical use

• Aluminum Alloy: 60% weight reduction for aerospace applications

Industry Adoption Drivers

Mechanical Advantages

1. Optimized Size-to-Strength Ratio

   • 28% greater shear strength than 5/16" pins

   • 35% more compact than 1/2" alternatives

2. Precision Tolerance

   • ±0.001" diameter consistency

   • <0.005" radial play when engaged

Economic Benefits

• 17% faster equipment changeovers vs. threaded fasteners

• 23% reduction in fastener-related downtime (IndustryWeek 2023 study)

• 500,000+ cycle lifespan in normal conditions

Sector-Specific Applications

1. Heavy Equipment Manufacturing

• Excavator Bucket Attachments: 87% of OEMs now use 3/8" ball lock for quick-change systems

• Press Brake Tooling: Standardized across major CNC brands

2. Renewable Energy Systems

• Wind Turbine Access Panels: Withstands 140mph winds

• Solar Array Mounts: UV-resistant versions available

3. Transportation Innovations

• EV Battery Pack Securing: Crash-tested versions meet FMVSS 305

• Railcar Coupling Systems: Vibration-proof locking mechanism

Installation Best Practices

Proper Usage Guidelines

1. Engagement Verification

   • Audible "click" confirmation

   • Visual ball protrusion check

2. Load Direction Considerations

   • Maximum axial load: 2,800 lbs

   • Optimal shear load orientation

3. Maintenance Schedule

   • Annual lubrication for high-cycle applications

   • Spring tension testing every 50,000 cycles

Comparative Analysis

Versus Alternative Fastening Methods

Future Development Roadmap

2024-2026 Innovations

• Smart Pins: Bluetooth-enabled load monitoring

• Self-Lubricating: Embedded graphene matrix

• Hybrid Designs: Interchangeable metric/SAE heads

Procurement Guidance

Quality Assurance Checklist

✓ ISO 9001:2015 certification
✓ DFARS-compliant materials
✓ Batch traceability documentation
✓ Salt spray test results (ASTM B117)

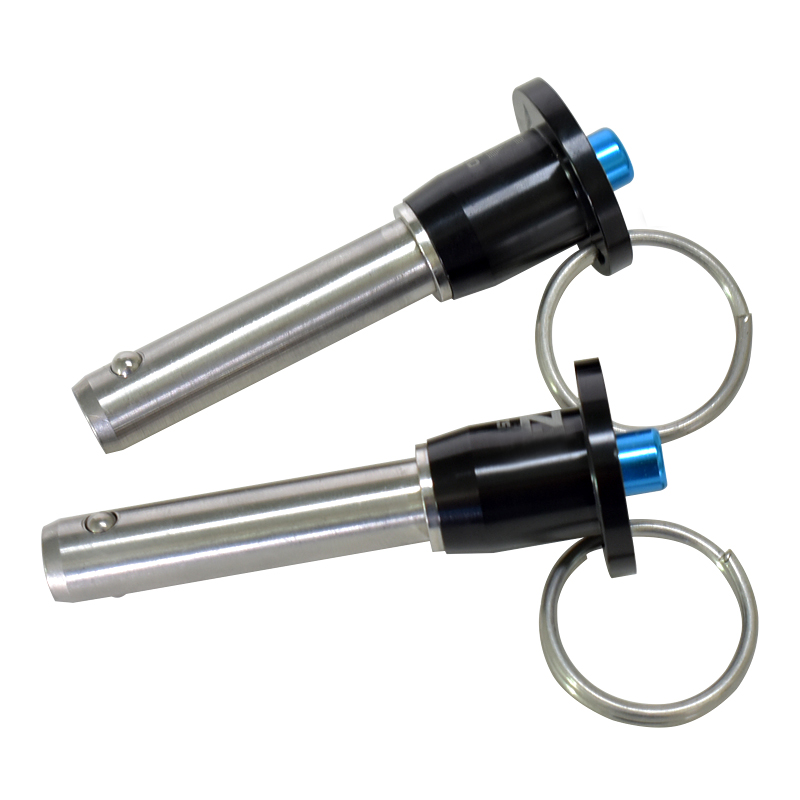

Explore our 3/8 ball lock pins for secure and efficient fastening in industrial applications. Durable and reliable, they ensure smooth operation. Contact us for custom solutions tailored to your needs.

The 3/8" Ball Lock Pin represents a paradigm shift in industrial fastening, combining military-grade reliability with consumer-friendly operation. As industries continue to prioritize operational efficiency, this versatile component is poised to become as fundamental as the hex bolt in equipment design.
