In today’s world of advanced manufacturing and rapid-assembly engineering, ball lock pins have become an essential fastening component. Known for their efficiency, strength, and speed of operation, they offer significant advantages over traditional locking systems. In this article, we will explore the working mechanism behind these innovative components, showcase Mocayo’s precision ball lock pin solutions, outline their key industry applications, and guide you on how to select the right model for your needs.

I. Understanding the Ball Lock Mechanism

The ball lock mechanism is engineered to provide secure, repeatable fastening with minimal effort. At its core is a spring-loaded button that controls a set of precision steel balls located at the end of the pin shaft. When the button is pressed, the balls retract into the shaft, allowing for easy insertion or removal. Once the button is released, the balls expand outward, locking the pin firmly in place inside the corresponding hole or component.

This design provides several key benefits:

• Tool-Free Operation: No wrenches or screws required — just a press and release.

• Quick Engagement and Release: Ideal for time-sensitive setups or frequent changeovers.

• High Shear Strength: Suitable for demanding load-bearing applications.

• Vibration Resistance: Maintains locking even under dynamic motion or stress.

This combination of simplicity and reliability makes ball lock pins a staple in modern mechanical assembly systems.

II. Mocayo Ball Lock Pins: Precision You Can Trust

For over a decade, Mocayo has specialized in precision components that push the boundaries of functionality and quality. Our ball lock pins are the result of meticulous engineering and field-tested performance. Here's what sets them apart:

• Premium Materials: Crafted from hardened stainless steel, alloy steel, or 316L medical-grade steel for optimal durability and corrosion resistance.

• Customizable Designs: Available in a wide range of handle styles including T-handle, L-handle, and button head, with optional lanyard holes or detent rings for added convenience.

• Tight Tolerances: Our pins are ground and polished for ultra-smooth insertion and consistent repeatability.

• Enhanced Locking Security: Each unit is tested to withstand high loads and maintain locking even under intense vibration or environmental stress.

We also offer custom manufacturing for non-standard dimensions, specific coatings, or extreme operating environments. Whether you're in need of a single prototype pin or high-volume production, Mocayo delivers with precision.

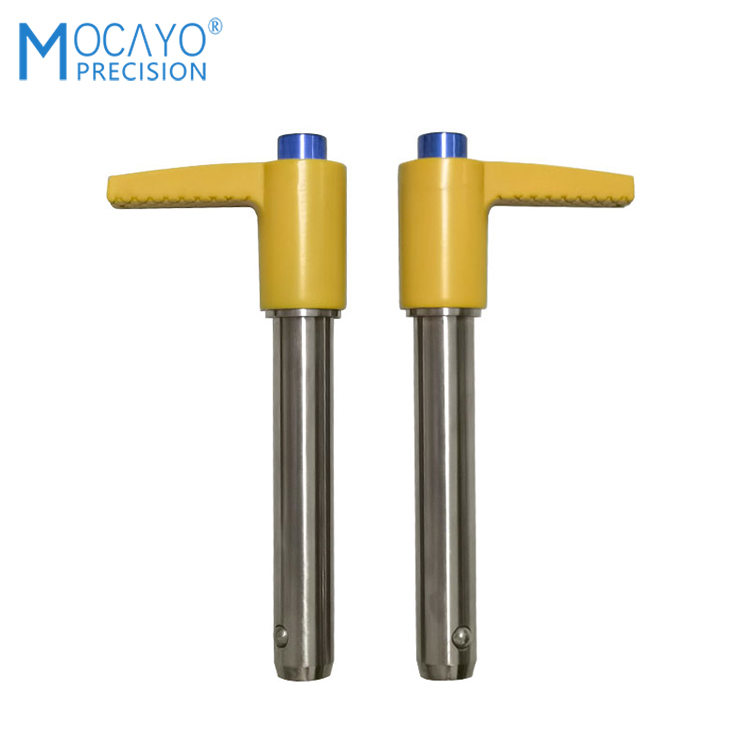

L-Handle Quick Release Pin

D-Ring Quick Release Pin



Push Botton Quick Release Pin

III. Versatile Applications Across Industries

Mocayo ball lock pins are a trusted solution across a diverse range of industries:

• Aerospace: For aircraft panel alignment, tool fixtures, and modular component setups where speed and safety are paramount.

• Automation & Robotics: Enables fast adjustments and reconfiguration in automated machinery and robotic end effectors.

• Automotive Manufacturing: Ideal for jig and fixture applications, part retention during welding, and assembly processes requiring frequent tool changes.

• Medical Equipment: With biocompatible and corrosion-resistant materials, our ball lock pins are ideal for surgical and diagnostic devices.

• Heavy Machinery: Used in equipment requiring high clamping force and secure locking under load.

Regardless of the industry, our pins enhance productivity by reducing downtime and ensuring stability in operation.

IV. Choosing the Right Ball Lock Pin

Selecting the right ball lock pin begins with understanding your application’s demands. Key factors to consider include:

• Load Capacity: What shear forces will the pin need to handle?

• Operating Environment: Is it corrosive, dusty, or exposed to extreme temperatures?

• Installation Frequency: Will the pin be removed and reinstalled frequently?

• Material Compatibility: Will the pin be in contact with soft metals or composites?

At Mocayo, we simplify this process with expert technical support and a product range that caters to both standard and complex requirements. Whether you're building high-precision aerospace tooling or customizing assembly jigs for high-volume production, we’ll help you find a solution that fits seamlessly into your workflow.
