Does Stainless Steel Have Nickel? A Material Selection Guide for Ball Lock Pins

1. Understanding the Nickel Content in Stainless Steel

Does stainless steel have nickel? This is a crucial question when selecting materials for precision fastening components like Ball Lock Pins. Nickel, as a key alloying element in stainless steel, directly affects the material’s corrosion resistance and mechanical properties.

Austenitic stainless steels (such as 304 and 316) typically contain between 8–12% nickel. This nickel content stabilizes the austenitic structure, significantly enhancing both corrosion resistance and ductility. For example, 316 stainless steel contains approximately 10–14% nickel, along with 2–3% molybdenum, making it ideal for harsh environments such as chemical processing and marine applications.

In contrast, the 400 series stainless steels (such as 410 and 430) generally contain little to no nickel. Instead, they rely primarily on chromium content (12–18%) for corrosion protection. Although these materials are more cost-effective, they exhibit notable limitations in acid and alkali resistance and formability.

Special attention must be paid to industries sensitive to nickel ions, such as food processing and medical devices. To meet these needs, we have developed low-nickel stainless steel solutions compliant with ISO 5832-1 standards. These materials balance corrosion resistance while minimizing the risk of nickel ion leaching.

When selecting the material for a Ball Lock Pin, it is critical to assess the corrosion level of the application environment. Our laboratory data reveals that in a 5% salt spray test, 304 stainless steel exhibited over five times the corrosion resistance compared to 430 stainless steel. In acidic media (pH<3), molybdenum-enriched 316 stainless steel performed even more impressively. These findings offer a solid scientific basis for material selection.

2. Applications of Ball Lock Pins and Key Material Selection Considerations

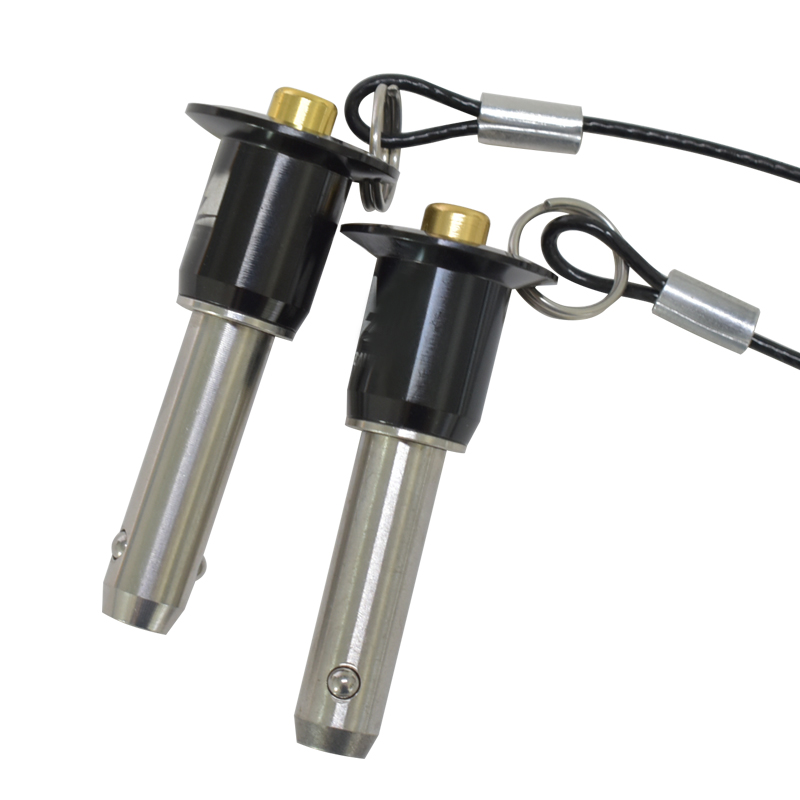

Ball Lock Pins, known for their rapid locking mechanism, are widely used in mold positioning, automation equipment, aerospace, and more. Their unique ball-locking design ensures secure connections while allowing for quick release. In such demanding applications, material selection directly impacts performance and service life.

Does stainless steel have nickel? When it comes to high-nickel stainless steel Ball Lock Pins, three major advantages stand out:

1. Superior Corrosion Resistance: Extends maintenance intervals. For example, in coastal power station equipment, 316 stainless steel Ball Lock Pins last up to eight times longer than carbon steel counterparts.

2. Excellent Ductility: Enhances the smooth operation of the locking mechanism. Tests show that high-nickel stainless steel Ball Lock Pins achieve over 500,000 operation cycles.

3. Stable Mechanical Properties: Maintain consistent preload force even under temperature variations.

Key factors to consider when choosing a Ball Lock Pin material include:

• Environmental Corrosiveness: For coastal or chemical environments, 316 stainless steel is highly recommended.

• Load Conditions: Heavy-load applications may require heat-treated 440C stainless steel.

• Usage Frequency: High-frequency assembly and disassembly benefit from models with special surface treatments.

• Cost Budget: For standard environments, the more economical 304 stainless steel is a viable choice.

3. Recommended High-Performance Stainless Steel Ball Lock Pins

As a precision fastening solutions expert, Mocayo offers a comprehensive range of stainless steel Ball Lock Pins designed to meet diverse industrial needs:

MOX Series:

• Manufactured from imported 316 stainless steel with 12.5% nickel and 2.5% molybdenum.

• Features precision surface finishing, keeping ball contact surface roughness below Ra0.2μm.

• Surpasses 1,000 hours in salt spray testing without red rust.

• Ideal for extreme environments such as offshore platforms and chemical plants. One offshore wind power customer reported maintenance intervals extended from 3 months to 2 years after switching to the MOX series.

MSX Series:

• Contains 8% nickel and offers standard sizes from Φ6 to Φ25mm.

• Advanced heat treatment process achieves tensile strengths up to 700MPa while maintaining excellent cost-efficiency.

• Equipped with a patented locking mechanism that resists loosening under vibration. Automotive production line users noted a 40% reduction in die-change times.

For a major international construction equipment manufacturer, we customized a 316L Ball Lock Pin solution that optimized ball quantity and distribution, improving load-bearing capacity by 30% while maintaining quick-release functionality. This innovation earned them a technology excellence award.

4. Ball Lock Pin Selection and Maintenance Guide

To ensure optimal performance of Ball Lock Pins, we recommend a systematic selection approach:

• Work Condition Analysis: Record environment temperature, medium exposure, and vibration frequency.

• Load Calculation: Precisely measure radial and axial forces.

• Material Matching: Refer to our material selection guide for the best options.

• Sample Testing: Validate with at least 3 months of real-environment testing.

Maintenance tips for Ball Lock Pins include:

• Use torque wrenches during installation to ensure proper preload force.

• Regularly check the mobility of the balls; apply specialized lubricants every 6 months.

• Store properly to prevent galvanic corrosion from dissimilar metal contact.

• When replacing, always replace the entire set to maintain mechanical consistency.

Does stainless steel have nickel? In conclusion, the presence of nickel in stainless steel plays a pivotal role in determining the corrosion resistance, durability, and mechanical performance of Ball Lock Pins. By understanding the nuances of nickel content across different stainless steel grades, customers can make informed choices that optimize both product longevity and cost-effectiveness.

For detailed technical data or customized solutions, feel free to contact our engineering team. We provide free sample testing and professional material selection consulting services to help you find the optimal Ball Lock Pin solution. Does Stainless Steel Have Nickel? Most stainless steel contains nickel (except 400 series), enhancing corrosion resistance and shine. Check grades like 304/316 for nickel content.
