How To Finish Metal — Indexing Plunger Pin Finishes

1. Metal Surface Finishing: The Key to Indexing Plunger Pin Performance

In the field of precision mechanical engineering, the indexing plunger pin serves as a vital positioning component. Its surface finish plays a decisive role in determining operational accuracy and service life. According to data from the Mocayo Engineering Lab, a properly finished indexing plunger pin can achieve 3 to 5 times greater wear resistance and over twice the precision retention period, clearly demonstrating the critical importance of how to finish metal surfaces effectively.

At present, four primary surface finishing methods are widely adopted in the industry:

• Electroplating, which creates a uniform and dense metallic coating that significantly enhances corrosion resistance.

• Heat treatment, which modifies the surface microstructure to greatly improve hardness and wear resistance.

• Chemical passivation, forming a stable oxide film that effectively prevents corrosive substances from penetrating.

• Mechanical finishing, which optimizes surface texture to reduce friction.

Mocayo’s performance testing reveals that composite finishing treatments can increase corrosion resistance in salt spray testing by 8–10 times compared to untreated materials.

When determining how to finish metal components such as indexing plunger pins, engineers must assess three core factors:

1. Base material properties – different steel grades react differently to surface processes.

2. Operating conditions – including load type and environmental corrosiveness.

3. Precision requirements – high-precision applications demand stricter dimensional control.

With advanced testing equipment and a comprehensive materials database, Mocayo offers tailored recommendations to help clients choose the optimal metal finishing solution for their indexing plunger pins.

2. Mocayo's Indexing Plunger Pin Series and Professional Surface Finishing Solutions

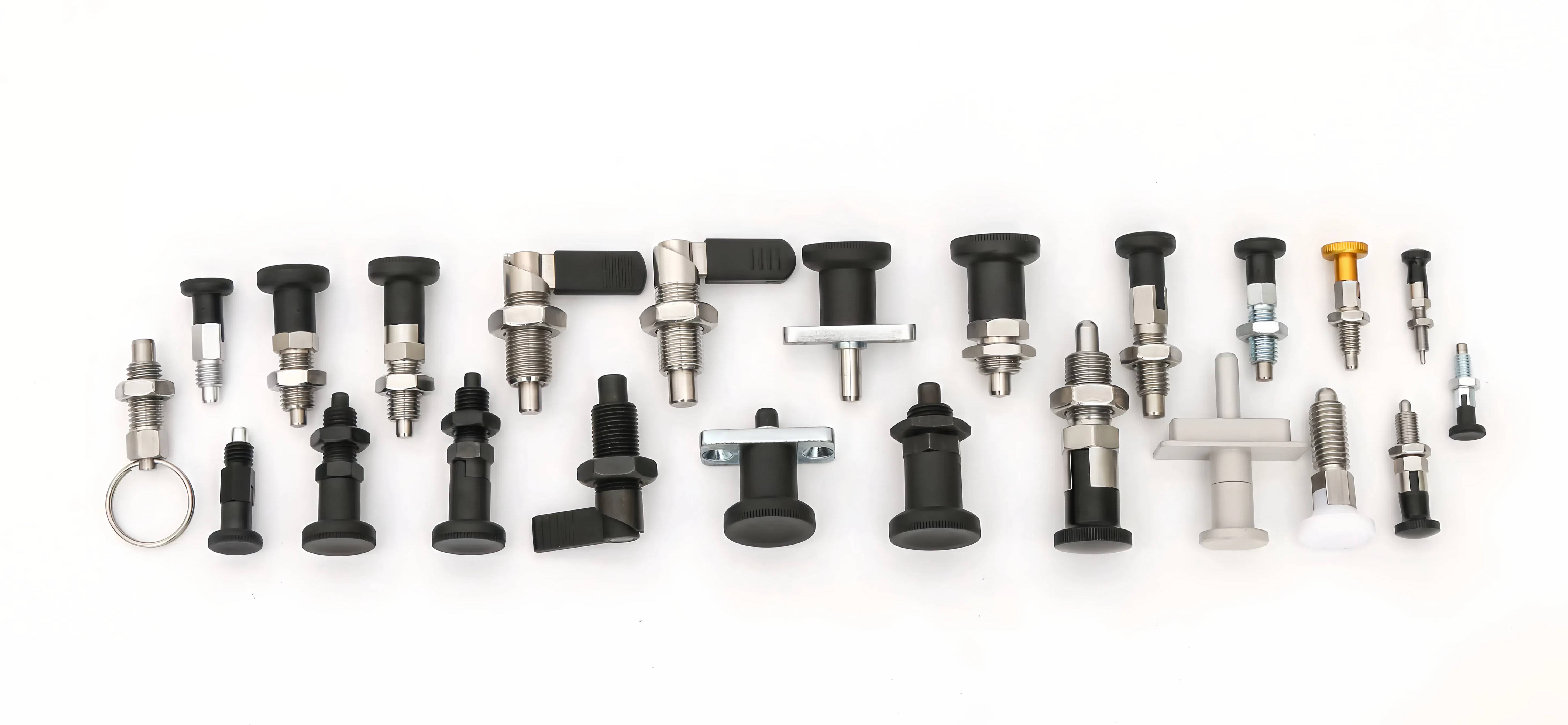

To meet diverse industrial needs, Mocayo has developed a comprehensive range of indexing plunger pins with specialized surface finishes:

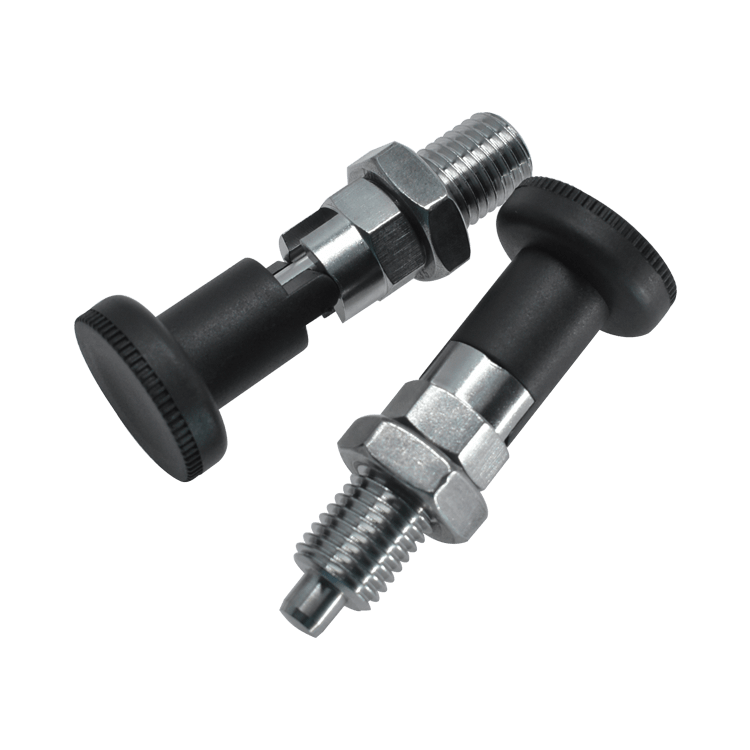

• MS1171 Indexing Plunger Pin: Utilizes a proprietary electroplating process with a uniform coating thickness of 15–20μm and a surface hardness exceeding HRC62. The unique micro-crack chromium layer ensures wear resistance without causing brittle fracture. A CNC rotary table manufacturer reported consistent positioning accuracy within ±0.003mm and a service life exceeding 2 million cycles after using this product.

• MS3170 Indexing Plunger Pin: Features precision-controlled nitriding to form a hardened layer of 0.2mm depth and a surface hardness of HV900–1100. Ideal for high-dynamic-load scenarios such as industrial robots. Testing shows that at 60 insertions per minute, this model offers 5 times the service life of standard pins.

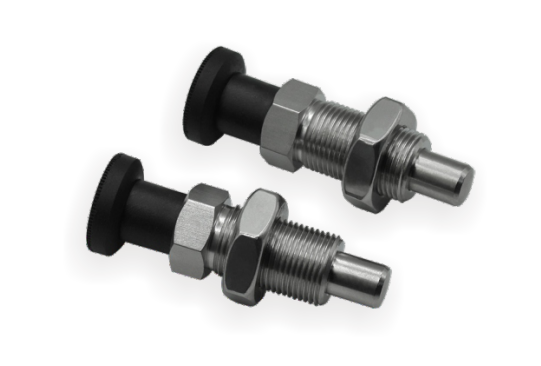

• MS2172 Stainless Steel Passivated Indexing Plunger Pin: Made from 316L medical-grade stainless steel and treated with eco-friendly citric acid passivation. Fully compliant with FDA standards, the surface roughness is kept below Ra0.4μm, reducing bacterial adhesion by 95%. Widely used in surgical navigation systems and other medical equipment.

Custom Solutions: For highly specific needs, Mocayo provides customized metal finishing solutions. A recent example involved developing a high-temperature-resistant indexing plunger pin for an aerospace project. Featuring a special alloy coating, the pin operates continuously at 400°C and has passed a 2000-hour endurance test.

3. Core Surface Finishing Technologies for Indexing Plunger Pins

When exploring how to finish metal components like indexing plunger pins, Mocayo’s technical advancements stand out:

• Chromium Plating Innovation: The "pulsed reverse electroplating" technique ensures denser crystal formation and reduces micro-cracks by 50%. Combined with proprietary additives, it boosts adhesion strength by 30%, meeting the rigorous demands of high-load applications. Chromium-plated pins have passed 2000-hour salt spray tests, exceeding industry standards.

• Advanced Nitriding Treatment: Computer-controlled ion nitriding systems utilize real-time spectral monitoring to ensure a depth variation of less than ±0.02mm. A unique post-oxidation treatment further enhances both wear and corrosion resistance. In sulfur-rich lubricants, treated indexing plunger pins extended service life by 8 times in automotive tests.

• High-Quality Stainless Steel Passivation: Mocayo ensures meticulous passivation to achieve superior quality and surface protection, making our stainless steel indexing plunger pins exceptionally reliable and durable.

4. Application Case Studies: How to Finish Metal for Maximum Impact

• Precision Machine Tools: A five-axis machining center manufacturer reported long-term positioning accuracy of within 0.002mm using Mocayo’s chromium-plated indexing plunger pins, completely eliminating wear-related accuracy degradation. Even after 2 years of continuous use, wear remained under 0.005mm—far exceeding client expectations.

• Food Packaging Industry: For a filling machine manufacturer, Mocayo’s 316L stainless steel passivated indexing plunger pins solved corrosion issues caused by acidic cleaning agents. Cleaning frequency dropped from weekly to monthly, cutting annual maintenance costs by 60%. The product also earned EHEDG certification.

• Semiconductor Manufacturing: In EUV lithography applications, our DLC-coated indexing plunger pins helped resolve micro-particle contamination issues during precision alignment. With a stable friction coefficient under 0.1, particle generation decreased by 99%, meeting the ultra-clean requirements of semiconductor fabrication.

• Construction Machinery: An excavator manufacturer using nitrided indexing plunger pins reported consistent positioning performance across extreme temperatures ranging from –30°C to 80°C. A specially engineered diffusion layer enhanced impact resistance by 3 times, making the product ideal for harsh field conditions.

How to Finish Metal for Better Indexing Plunger Pin Performance

Whether you're improving precision machinery, expanding into aerospace, or solving challenges in harsh environments, knowing how to finish metal properly is crucial. At Mocayo, we combine engineering expertise, cutting-edge technologies, and client-focused customization to deliver indexing plunger pins with outstanding performance and longevity.

From electroplating to nitriding, passivation to mechanical polishing, every detail matters when it comes to surface finishing. Partner with Mocayo to ensure your indexing plunger pins are ready for the toughest challenges.

Learn how to finish metal surfaces and choose the right index plunger pin for smooth, durable, and professional mechanical applications.
