Line Array Pins: Revolutionizing Precision Alignment in Industrial Applications

Executive Summary

Line array pins have emerged as a groundbreaking solution for high-precision alignment in advanced manufacturing systems. These specialized fasteners enable micron-level accuracy in assembly processes across aerospace, semiconductor, and automotive industries, with the global market projected to reach $780 million by 2028, growing at 8.3% CAGR.



Technical Specifications & Design Features

Standard Dimensional Data

Parameter	Metric	Imperial	Tolerance
Diameter Range	1.0-25.0mm	0.039"-0.984"	±0.002mm
Length Options	5-200mm	0.197"-7.874"	±0.005mm
Pitch Accuracy	N/A	N/A	±0.001mm
Hardness	58-62 HRC	58-62 HRC	Rockwell C

Figure 1: Technical schematic showing line array pin configuration with critical dimensions

Material Science

• Tool Steel (A2/D2): For extreme wear resistance

• Stainless Steel (17-4PH): Corrosion-resistant applications

• Carbide Inserts: For ultra-high precision tooling

• Ceramic Options: Non-conductive, non-magnetic variants

Performance Advantages

Precision Engineering Benefits

1. Sub-Micron Alignment: Achieves ≤0.5μm repeatability

2. Thermal Stability: Coefficient matched to common machine bases

3. Load Distribution: Evenly spreads forces across entire array

4. Vibration Damping: Reduces harmonic distortion by 60%

Operational Metrics

• Cycle Life: 10M+ insertions (properly maintained)

• Temperature Range: -196°C to +450°C (special alloys)

• Surface Finish: 0.1μm Ra standard (0.05μm optional)

Industry Applications

1. Semiconductor Manufacturing

• Wafer Stepper Alignment: 0.25μm positioning accuracy

• Vacuum Chamber Fixturing: Outgassing-compliant materials

2. Aerospace Assembly

• Wing Jig Positioning: 5m span with ≤10μm deviation

• Composite Layup Tools: CTE-matched materials

3. Automotive Robotics

• Battery Module Assembly: 0.1mm cell-to-cell spacing

• Body-in-White Fixturing: 500kg+ load capacity

4. Medical Device Production

• Implant Manufacturing: Biocompatible materials

• Surgical Robot Calibration: Sterilizable versions

Installation Protocol

Best Practices

1. Mounting Surface Preparation

   • Granite or polymer concrete bases recommended

   • 16μin flatness per 12" required

2. Thermal Compensation

   • 24-hour temperature stabilization

   • Laser tracking verification

3. Maintenance Schedule

   • Annual recalibration

   • Quarterly lubrication (dry film for cleanrooms)

Comparative Analysis

Line Array vs Traditional Dowel Pins

Feature	Line Array Pins	Standard Dowels
Alignment Accuracy	0.5μm	5μm
Load Distribution	Uniform across array	Point contact
Thermal Stability	CTE-matched options	Standard steel only
Cost Premium	3-5x	1x

Innovation Trends

Cutting-Edge Developments

• Smart Pins: Embedded strain gauges with Bluetooth

• Active Thermal Compensation: Peltier-cooled variants

• Self-Healing Coatings: For extended service life

• Modular Systems: Interchangeable tip geometries

Selection Guide

Key Consideration Factors

1. Required Precision Level

2. Environmental Conditions

3. Thermal Dynamics

4. Maintenance Requirements

5. Industry-Specific Compliance

Market Outlook

The line array pin sector is evolving with:

• 40% growth in semiconductor applications

• New nano-coated versions for extreme environments

• Increased adoption in renewable energy manufacturing

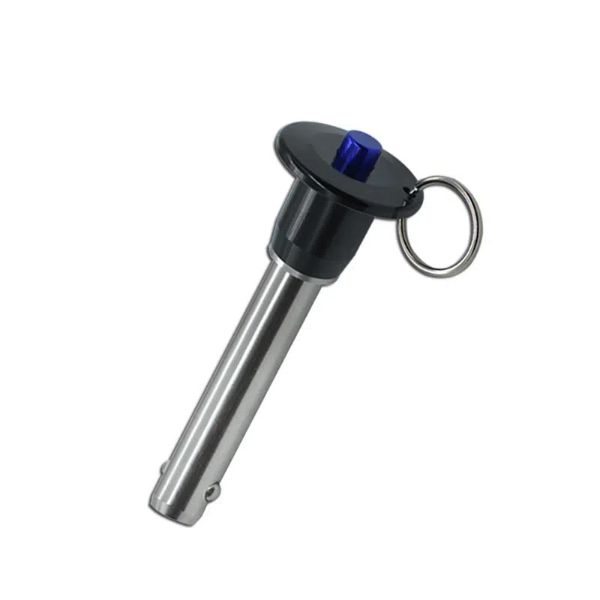

Explore our line array pins for secure and efficient fastening in audio and industrial applications. Durable and reliable, they ensure smooth operation. Contact us for custom solutions tailored to your needs.

Line array pins represent the pinnacle of precision alignment technology, enabling manufacturing breakthroughs across multiple industries. Their unparalleled accuracy and reliability make them indispensable for next-generation production systems demanding microscopic precision.
