Locking Spring Plungers: Essential Components for Secure Positioning

Introduction Locking spring plungers are crucial mechanical components used in various industrial applications to provide secure positioning, indexing, and quick locking. These small yet powerful devices help enhance operational efficiency by ensuring precise engagement and controlled movement of parts.

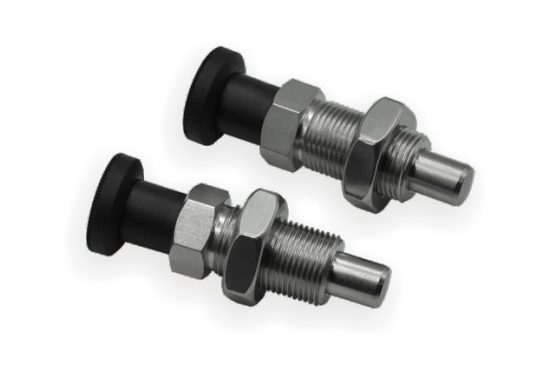

What is a Locking Spring Plunger? A locking spring plunger is a type of plunger mechanism designed with a spring-loaded pin that locks into place when engaged. Unlike standard spring plungers, locking versions feature a retractable locking pin that can be manually engaged or disengaged, ensuring stability in applications that require repeated positioning. These plungers are widely used in manufacturing, automation, and fixture applications.

How is a Locking Spring Plunger Used? Locking spring plungers are commonly utilized in machinery, assembly lines, and tooling fixtures. The plunger’s pin is inserted into a corresponding hole or notch to lock a part into position. When repositioning is required, the plunger can be manually pulled back or turned to release the lock. This functionality is essential for applications that demand frequent adjustments, such as work-holding devices, quick-change systems, and mechanical stops.

Standard Sizes and Specifications Locking spring plungers come in various sizes and specifications to meet diverse industrial needs. Common standard sizes include:

• Threaded Plungers: M4, M6, M8, M10, M12, M16, and M20

• Pin Diameters: Ranges from 2mm to 10mm, depending on the model

• Materials: Stainless steel, carbon steel, or nylon-tipped options for different environmental conditions

• Spring Force: Light, medium, or heavy-duty, depending on application requirements

• Locking Mechanism: Available with push-lock, pull-lock, or turn-lock mechanisms

Quality and Performance Requirements To ensure optimal performance and durability, locking spring plungers must meet high-quality standards. Key requirements include:

• High-precision machining: Ensuring smooth engagement and disengagement of the locking mechanism

• Corrosion resistance: Stainless steel variants for enhanced durability in harsh environments

• Reliable spring tension: Providing consistent force for secure locking

• Wear resistance: High-quality materials to withstand repeated use without deformation

 Locking spring plungers play an essential role in securing mechanical components and improving workflow efficiency across multiple industries. With various sizes, materials, and locking mechanisms available, they offer reliable and flexible solutions for different applications. Choosing high-quality plungers ensures better performance, longevity, and operational precision in industrial settings.

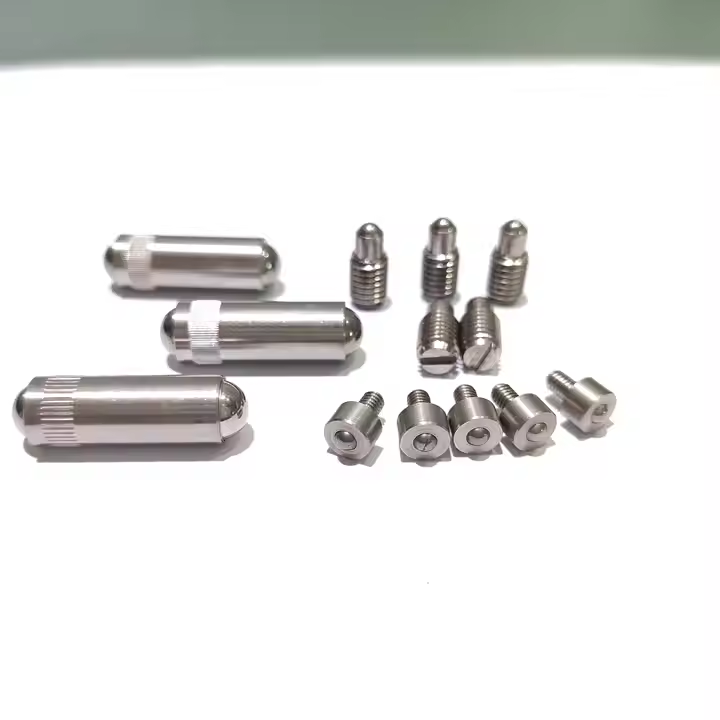

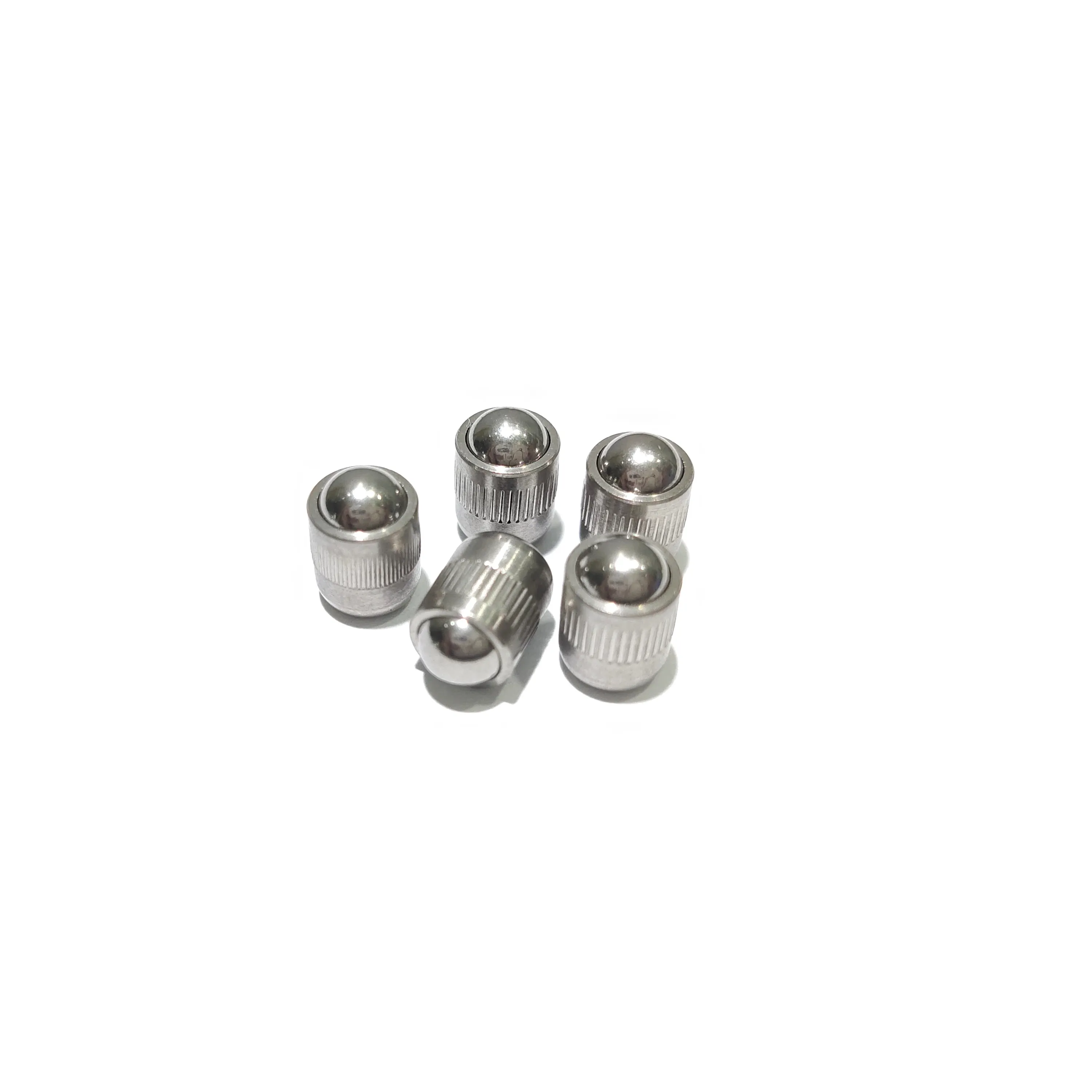

Explore our locking spring plungers for secure positioning and reliable performance in industrial applications. Featuring durable construction, they provide a locking mechanism that ensures stability. Contact us for high-quality, custom-engineered solutions today.
