M8 Spring Plungers: The Precision Positioning Solution Powering Modern Industry

Introduction
In the world of industrial fastening and precision positioning, M8 Spring Plungers have emerged as an indispensable component for engineers and manufacturers. These compact yet powerful devices combine spring-loaded force with precise mechanical engagement, offering reliable performance in applications ranging from CNC machining to aerospace assembly. With their standardized M8 x 1.25mm metric threading, these plungers provide global compatibility while delivering exceptional durability and repeatability.
This in-depth article explores the design, functionality, applications, and selection criteria for M8 Spring Plungers, providing valuable insights for procurement specialists and design engineers alike.
What Is an M8 Spring Plunger?
An M8 Spring Plunger is a mechanical device consisting of:
  • M8-threaded body (1.25mm pitch) for secure mounting
  • Internal spring mechanism providing constant outward force
  • Engagement tip (ball, pin, or flat nose) for positive positioning
  • Adjustment screw (on some models) for spring tension control
These plungers operate on a simple but effective principle: when compressed, the spring stores energy, allowing the tip to engage with mating holes or surfaces securely.

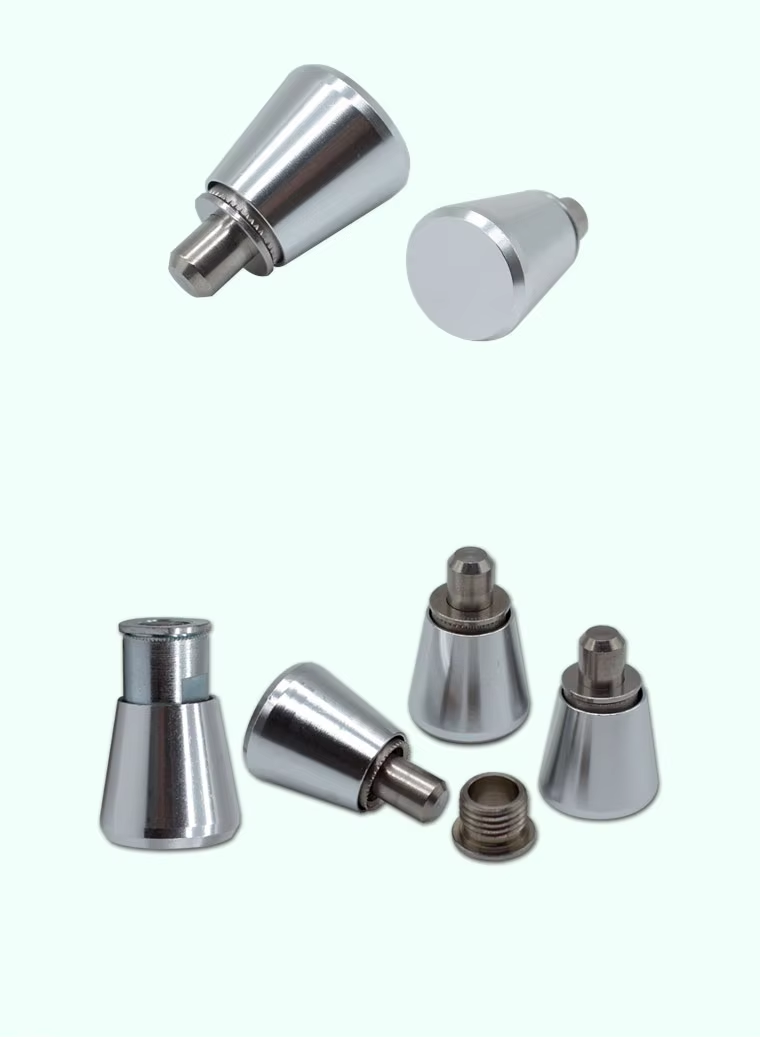

Explore our M8 spring plungers for precise positioning and reliable performance in industrial applications. Durable and efficient, they ensure smooth operation. Contact us for custom solutions tailored to your needs.
Explore our M8 spring plungers for precise positioning and reliable performance in industrial applications. Durable and efficient, they ensure smooth operation. Contact us for custom solutions tailored to your needs.
Key Features & Benefits
1. Precision Positioning
  • Maintains ±0.01mm repeatability in tooling applications
  • Available in ball tip (for detents), flat nose (for hard stops), and pin tip configurations
2. Robust Construction
  • Materials: Stainless steel (304/316), carbon steel (zinc-plated), or brass
  • Load Capacity: 20-150N (adjustable via spring preload)
  • Temperature Range: -30°C to +120°C (standard models)
3. Industry-Standard Sizing
  • Thread: M8 x 1.25mm (compatible with ISO metric tooling)
  • Body Lengths: 15mm to 60mm options
  • Ball Diameters: 4mm, 6mm, or 8mm variants
4. Operational Advantages
  • Tool-less adjustment on models with hex sockets
  • Self-cleaning action reduces debris buildup
  • 50,000+ cycle life with proper maintenance
Technical Specifications
Parameter
Standard Specification
High-Precision Option
Thread Size
M8 x 1.25mm
M8 x 1.25mm (ground)
Spring Force
30N (default)
10-100N (adjustable)
Tip Runout
<0.1mm
<0.02mm
Body Material
Carbon steel (Zn-plated)
316 Stainless Steel
Operating Temperature
-20°C to +100°C
-40°C to +200°C
How M8 Spring Plungers Work
Four-Stage Operation:
  1. Mounting: Threaded into pre-tapped M8 holes using hex key
  2. Engagement: Spring forces tip outward to locate in mating feature
  3. Positioning: Holds components in precise alignment during operation
  4. Reset: External force compresses plunger for repositioning
Pro Tip: For vibration-prone applications, models with locking collars prevent accidental disengagement.
Industry Applications
1. Machine Tool Industry
  • Use Case: Tool changer alignment in CNC mills
  • Benefit: Ensures ±0.005mm repeatability during automatic tool changes
  • Preferred Model: M8 ball plunger with 6mm carbide tip
2. Automotive Manufacturing
  • Use Case: Welding fixture locating pins
  • Critical Requirement: Vibration resistance up to 15G
  • Solution: 316 stainless steel models with extra-heavy springs
3. Aerospace Assembly
  • Use Case: Aircraft panel quick-release mechanisms
  • Special Need: Corrosion-resistant materials for harsh environments
  • Standard: NASM-compliant anodized aluminum variants
4. Industrial Automation
  • Use Case: Robotic end effector positioning
  • Key Feature: Self-aligning ball tip compensates for minor misalignment
Selection Guide
Step 1: Determine Application Requirements
  • Light Duty (positioning only): 4mm ball tip, 20N spring
  • Medium Duty (fixturing): 6mm ball/flat nose, 50N spring
  • Heavy Duty (vibration environments): 8mm tip, 100N+ spring
Step 2: Environmental Considerations
  • Standard workshop: Zinc-plated carbon steel
  • Corrosive areas: 316 stainless steel
  • Clean rooms: Anodized aluminum
Step 3: Motion Requirements
  • Rotational movement: Ball tip
  • Absolute positioning: Flat nose
  • Frequent engagement: Hardened steel tip
Installation & Maintenance
Best Practices:
  1. Use thread locker for permanent installations
  2. Verify hole depth ≥1.5x plunger stroke
  3. Lubricate with dry-film lubricant (e.g., PTFE)
Maintenance Schedule:
  • Monthly: Clean tip and check spring tension
  • Quarterly: Inspect threads for wear
  • Annually: Replace in critical applications
Innovations & Future Trends
  1. Smart Plungers
    • Embedded load sensors for condition monitoring
    • RFID tags for maintenance tracking
  2. Advanced Materials
    • Ceramic tips for wear-resistant applications
    • Composite springs for consistent force over temperature ranges
  3. Ergonomic Designs
    • Low-profile versions for compact spaces
    • Quick-disconnect variants

Explore our M8 spring plungers for precise positioning and reliable performance in industrial applications. Durable and efficient, they ensure smooth operation. Contact us for custom solutions tailored to your needs.

M8 Spring Plungers represent the perfect marriage of precision engineering and practical functionality. Their standardized metric threading, robust construction, and versatile configurations make them essential components across manufacturing sectors.
As industries continue pushing toward higher automation and tighter tolerances, these plungers will evolve with smart features and advanced materials to meet tomorrow's challenges.
