What Is A Ball Plunger Screw Used For? Exploring Its Applications and Benefits

Ball plunger screws are specialized fasteners that combine the functionality of a screw with the positioning capabilities of a ball plunger. These versatile components are used in a wide range of applications to provide secure fastening and precise positioning. This article explores the uses, benefits, and key features of ball plunger screws, highlighting their importance in various industries.

1. Understanding the Ball Plunger Screw

Components:
A ball plunger screw consists of a threaded body, a spring-loaded ball, and a screw head. The threaded body allows for easy installation into a pre-tapped hole, while the spring-loaded ball provides the necessary force to engage with detent holes or grooves. The screw head can be designed in various styles, such as hex, slotted, or Phillips, to accommodate different installation tools.

Mechanism:

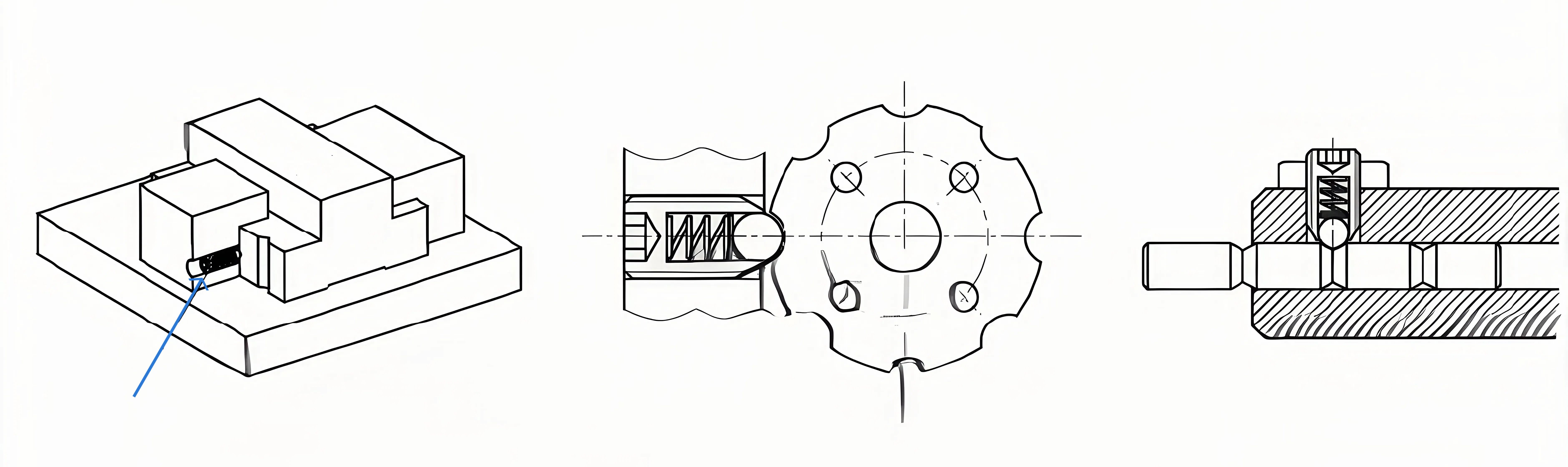

The spring-loaded ball at the end of the screw engages with detent holes or grooves, providing secure and repeatable positioning. When an external force is applied, the ball retracts into the body, allowing for easy adjustment or disengagement. Once the force is removed, the spring pushes the ball back out, securing the part in place.

2. Key Features and Benefits

Precise Positioning:
Ball plunger screws offer accurate and repeatable positioning, ensuring that parts are consistently aligned. This is particularly important in applications such as fixtures, jigs, and machinery, where precise alignment is crucial for optimal performance.

Secure Fastening:
The threaded body of the ball plunger screw provides a secure fastening solution, ensuring that parts remain firmly in place during operation. This combination of fastening and positioning makes ball plunger screws highly versatile.

Ease of Use:
The spring-loaded mechanism allows for easy engagement and disengagement, making ball plunger screws user-friendly and convenient for applications requiring frequent adjustments.

Durability:
Ball plunger screws are typically made from high-quality materials such as stainless steel, brass, or plastic, ensuring durability and long service life. Stainless steel screws offer excellent corrosion resistance, making them suitable for harsh environments.

3. Applications of Ball Plunger Screws

Machinery and Fixtures:
Ball plunger screws are widely used in machinery and fixtures to secure and position parts. They ensure that components are accurately aligned and remain in place during operation, reducing the risk of errors and improving overall efficiency.

Consumer Products:
In consumer products, ball plunger screws are often used in adjustable components such as folding tools, furniture, and sports equipment. They provide a secure and easy-to-use locking mechanism, enhancing the functionality and user experience of the product.

Automotive and Aerospace:
In the automotive and aerospace industries, ball plunger screws are used in various applications, including locking mechanisms for doors, hatches, and access panels. Their precise positioning and secure fastening capabilities make them ideal for safety-critical applications.

Electronics and Precision Instruments:
Ball plunger screws are also used in electronics and precision instruments, where accurate alignment and secure fastening are essential. Their ability to provide consistent and reliable positioning makes them valuable components in these high-precision fields.

4. Installation and Maintenance

Installation:
Installing a ball plunger screw is straightforward. The threaded body is screwed into a pre-tapped hole, and the screw is tightened to the desired torque. Ensure that the ball engages smoothly with the detent hole or groove for optimal performance.

Maintenance:
Ball plunger screws require minimal maintenance. Regular inspection for wear and tear, along with occasional lubrication, can help maintain their performance and extend their service life. Replace any damaged components to ensure continued reliable operation.

5. Advantages and Disadvantages

Advantages:

• Precise and repeatable positioning.

• Secure fastening.

• Easy to install and use.

• Durable and long-lasting.

• Suitable for a wide range of applications.

Disadvantages:

• May require regular maintenance in high-stress environments.

• Limited load capacity compared to other fastening methods.
