Stainless Steel Index Plungers: The Corrosion-Resistant Solution for Precision Positioning

Introduction

In industries where precision meets harsh environments, Stainless Steel Index Plungers have become the go-to solution for reliable, corrosion-resistant positioning. These robust mechanical components combine the accuracy of index plungers with the durability of stainless steel, making them ideal for applications in marine equipment, food processing, pharmaceutical manufacturing, and chemical processing plants. Unlike standard carbon steel plungers, stainless steel variants offer superior resistance to rust, chemicals, and extreme temperatures while maintaining precise repeatability.

This comprehensive guide explores the design features, material advantages, technical specifications, and industry applications of Stainless Steel Index Plungers, providing engineers and procurement specialists with essential selection criteria.

What Are Stainless Steel Index Plungers?

Stainless Steel Index Plungers are spring-loaded positioning devices featuring:

  • Stainless steel construction (typically 303, 304, or 316 grades)

  • Ball, pin, or flat nose engagement tips

  • Spring mechanisms with adjustable tension

  • Threaded bodies for secure mounting (metric and imperial options)

These plungers operate by spring-forcing a ball or pin into detents or against surfaces, then retracting via manual pull or push action. Their stainless construction ensures performance in environments where moisture, chemicals, or sterilization processes would degrade standard materials.

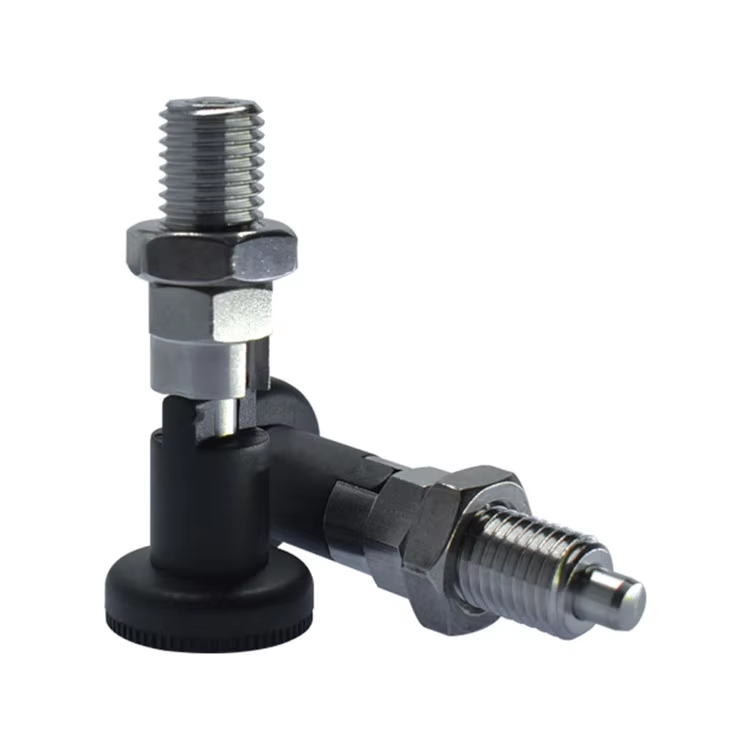

Discover our stainless steel index plungers for precise positioning and reliable performance in industrial applications. Durable and corrosion-resistant, they ensure smooth operation. Contact us for custom solutions tailored to your needs.

Key Features & Benefits

1. Superior Corrosion Resistance

  • 304 SS: General purpose, withstands mild chemicals

  • 316 SS: Marine-grade resistance to saltwater

  • 316L SS: Low-carbon variant for welding applications

2. Precision Engineering

  • Tolerances to ±0.01mm

  • Repeatability within 0.02mm

  • Adjustable spring force (5N to 200N)

3. Sanitary Design

  • Smooth surfaces (0.8μm Ra or better)

  • Crevice-free construction

  • Autoclavable (up to 135°C)

4. Industry Compliance

  • FDA compliant for food contact

  • USP Class VI for medical devices

  • 3-A Sanitary Standards

Technical Specifications

Parameter Standard Grade High-Performance Grade
Material 304 Stainless Steel 316 Stainless Steel
Thread Size M6-M12 (metric) 1/4"-1/2" (imperial)
Spring Force 20-100N 5-200N (adjustable)
Temperature Range -40°C to +200°C -60°C to +300°C
Tip Options Ball, Flat, Nylon Carbide, PTFE-coated

How Stainless Steel Index Plungers Work

Operational Sequence:

  1. Mounting: Threaded into stainless steel or compatible material

  2. Engagement: Spring forces ball/pin into detent or against surface

  3. Positioning: Holds components in precise alignment

  4. Release: Manual retraction via pull ring, knob, or direct push

Special Configurations:

  • Double-acting plungers for push-push operation

  • Locking variants with secondary securement

  • Sealed models with IP67 protection

Industry Applications

1. Food & Beverage Processing

  • Use: Positioning conveyor guides

  • Critical Need: USDA-compliant materials

  • Solution: 316SS with electropolished finish

2. Pharmaceutical Manufacturing

  • Application: Tablet press tooling alignment

  • Requirement: Cleanroom-compatible materials

  • Feature: Passivated surfaces

3. Marine Equipment

  • Implementation: Deck machinery positioning

  • Challenge: Saltwater corrosion

  • Solution: 316L with marine-grade lubrication

4. Chemical Processing

  • Function: Reactor vessel access panels

  • Demand: Acid resistance

  • Option: Hastelloy-coated variants

Selection Guide

Step 1: Environmental Assessment

  • Mild Conditions: 304 SS

  • Chloride Exposure: 316 SS

  • Acidic Environments: 316L with special coatings

Step 2: Force Requirements

  • Light Duty: 5-20N (plastic components)

  • Medium Duty: 20-50N (general positioning)

  • Heavy Duty: 50-200N (vibration resistance)

Step 3: Motion Type

  • Rotational: Ball tip

  • Linear: Flat nose

  • Non-marring: Nylon tip

Installation & Maintenance

Best Practices:

  1. Thread Preparation: Use antiseize compound on threads

  2. Alignment: Ensure perpendicular installation

  3. Lubrication: Food-grade lubricant for sanitary apps

Maintenance Schedule:

  • Monthly: Inspect for galling or corrosion

  • Quarterly: Clean and relubricate

  • Annually: Replace springs in critical apps

Innovations & Future Trends

  1. Smart Plungers

  • Embedded corrosion sensors

  • Wireless load monitoring

  1. Advanced Materials

  • Nitrogen-strengthened steels

  • Composite polymer tips

  1. Additive Manufacturing

  • Custom geometries for unique applications

  • Reduced material waste

Discover our stainless steel index plungers for precise positioning and reliable performance in industrial applications. Durable and corrosion-resistant, they ensure smooth operation. Contact us for custom solutions tailored to your needs.

Stainless Steel Index Plungers represent the pinnacle of corrosion-resistant positioning technology, combining precision engineering with material science to solve challenges in hostile environments. As industries face increasing regulatory and performance demands, these components will continue evolving with smarter features and advanced alloys.
