Threaded Quick Release Pins: Versatile Fastening Solutions for Modern Engineering

Introduction

In today's fast-paced manufacturing and engineering industries, the demand for reliable, efficient, and time-saving components is at an all-time high. One such innovation that stands out is the Threaded Quick Release Pin. Known for their rapid operation, secure locking, and compatibility with threaded holes, these mechanical components are vital in industries ranging from aerospace and automotive to robotics and industrial machinery.

This article explores the design, functionality, applications, benefits, and evolving use of threaded quick release pins across the global manufacturing sector.

What Are Threaded Quick Release Pins?

Threaded Quick Release Pins are mechanical fasteners designed for quick installation and removal in assemblies that involve pre-threaded components. Unlike traditional pins that rely on friction or locking balls alone, these pins incorporate a threaded shank that engages with a threaded hole, ensuring a secure and stable fit.

They combine the speed of quick release with the stability of threaded fastening, making them suitable for applications where vibration, torque, or pressure might otherwise dislodge a smooth pin.

Design and Structure

A typical threaded quick release pin is composed of several critical elements:

• Handle or Button: Used to pull, push, or twist the pin for quick engagement or disengagement.

• Threaded Shank: Screws into the receiving component for a secure fit.

• Plunger or Pin Nose: May include a spring-loaded mechanism or locking balls.

• Retention Balls or Spring Mechanism: Optional features that provide additional holding force.

• Lanyard or Tether Option: Often included to prevent loss during maintenance or operation.

These components are often engineered to meet specific dimensional standards, such as inch or metric threads, and can be customized to fit unique assembly needs.

Material Composition and Finishes

The performance of threaded quick release pins is significantly influenced by their material. Depending on the intended application, these pins are typically made from:

• Stainless Steel (304, 316): Provides excellent corrosion resistance, ideal for marine or medical environments.

• Alloy Steel (Zinc/Black Oxide Coated): Offers high strength and moderate corrosion resistance.

• Aluminum: Lightweight and corrosion-resistant; often used in aerospace applications.

• Plastic or Composite Handles: Lightweight and ergonomic for user comfort.

Common surface finishes include:

• Zinc Plating: Enhances corrosion resistance and provides a polished appearance.

• Passivation: Used on stainless steel to increase its resistance to oxidation.

• Anodizing: For aluminum components, offering both protection and color options.

Functionality and Operating Principle

Threaded quick release pins function through a screw-in and pull-to-release mechanism. Here’s how they generally operate:

1. Thread Engagement: The pin is inserted and screwed into a threaded receiving hole.

2. Locking: Optional ball detents or spring-loaded plungers lock the pin in place, ensuring it doesn’t loosen from vibration.

3. Quick Release: A user can quickly disengage the pin by pulling a handle or pressing a button, retracting the locking mechanism and allowing removal.

4. Reusability: Designed for repeated use, they maintain performance over thousands of cycles.

This makes them particularly valuable in applications where components must be frequently assembled or disassembled without the use of hand tools.

Types of Threaded Quick Release Pins

Several variations exist to cater to specific industrial requirements:

1. Standard Threaded Quick Release Pins

These have a traditional screw-in design with a simple handle or knob for withdrawal.

2. Ball Lock Threaded Pins

Include spring-loaded balls near the tip of the pin that retract when the button is pushed and lock when released, providing an additional level of security.

3. Heavy-Duty Threaded Pins

Thicker pins with reinforced threads, suitable for high-load or heavy vibration applications.

4. Custom Thread Pins

Manufactured to specific customer requirements with customized thread sizes, lengths, materials, and locking mechanisms.

5. T-Handle or L-Handle Designs

Ergonomic handle shapes provide better grip and torque during installation and removal.

Key Advantages

Threaded quick release pins provide a unique blend of features that traditional fasteners or smooth-shank pins cannot:

Quick and Tool-Free Operation

Installation and removal can be performed without tools, reducing assembly time.

Secure and Vibration-Resistant

Threaded engagement ensures strong resistance to loosening due to motion or vibration.

Reusable and Long-Lasting

Engineered to withstand repeated use without deformation or wear.

Corrosion Resistance

Available in materials suitable for harsh or outdoor environments.

Customizable

Available in various sizes, threads, materials, and finishes for application-specific needs.

Applications Across Industries

Threaded quick release pins are widely used in industries requiring precise, secure, and easily removable fasteners:

Aerospace

Used to secure panels, seats, and access doors. Their lightweight and vibration-resistant properties make them ideal for flight-critical systems.

Military and Defense

Employed in portable equipment, modular structures, and vehicles where rapid assembly is vital.

Medical Devices

Utilized in adjustable or modular components of medical imaging machines, hospital beds, and surgical systems.

Manufacturing and Robotics

Provide adjustable fixturing and alignment in automated systems, improving workflow flexibility.

Automotive and Motorsports

Used in quick-change setups for seats, panels, or test rig configurations.

Fitness Equipment

Secure moving parts or attachments on commercial-grade machines, allowing user adjustments.

Selection Criteria

When selecting a threaded quick release pin for your application, consider the following factors:

• Thread Size and Type: Choose between metric or imperial sizes; verify thread pitch.

• Load Requirements: Consider shear and tensile load capacities.

• Handle Style: Select a handle type that suits the user environment (knob, button, T-handle).

• Material and Finish: Match material to environmental exposure and load conditions.

• Operating Temperature: Certain materials or springs may deform at high or low temperatures.

• Cycle Frequency: Choose components rated for high cycles if the pin is frequently used.

Global Standards and Compliance

While there is no single international standard for all threaded quick release pins, many manufacturers adhere to specifications such as:

• ISO 9001: General quality assurance in design and production.

• RoHS and REACH: Environmental compliance for material safety and usage.

• ASME B18.3: Mechanical fastener standards.

• NASM/MS Pins: Aerospace-grade specifications for locking mechanisms and materials.

These standards ensure consistency, safety, and reliability—especially important in regulated industries.

Installation and Maintenance Tips

To maximize the lifespan and performance of threaded quick release pins:

• Clean Threads Regularly: Prevent cross-threading or contamination.

• Use Anti-Seize Compound: Especially in high-temperature or corrosive environments.

• Check for Wear: Inspect threads, handles, and locking mechanisms for fatigue or damage.

• Avoid Over-Tightening: Threaded pins are designed for moderate torque; over-tightening can strip threads.

• Store Properly: Protect from moisture and dust when not in use.

Regular inspections and preventative care will help ensure consistent operation and prevent unintentional disengagement.

Customization and OEM Integration

Many manufacturers offer custom services for threaded quick release pins, including:

• Custom Thread Sizes and Lengths

• Special Coatings (PTFE, Ceramic, Nickel)

• Color-Coded or Engraved Handles

• Integrated Safety Features

• Dual-Action Release Mechanisms

OEMs benefit from bespoke designs that integrate seamlessly into their systems, often reducing overall assembly complexity and increasing product performance.

Growing Market Demand and Innovation Trends

The market for quick release pins, especially threaded variants, is growing rapidly due to several key trends:

• Industry 4.0 and Modular Design: As machines become more modular and customizable, the need for fast-change components is increasing.

• Electric Vehicles and Lightweighting: Threaded aluminum and titanium pins are in high demand for their strength-to-weight ratio.

• 3D Printing Compatibility: Custom pins for additive manufacturing jigs and fixtures are becoming more common.

• Sustainability: Reusable fasteners like quick release pins reduce waste and increase efficiency in assembly lines.

These trends suggest a future where quick-release threaded solutions become the standard for fast, safe, and flexible operations.

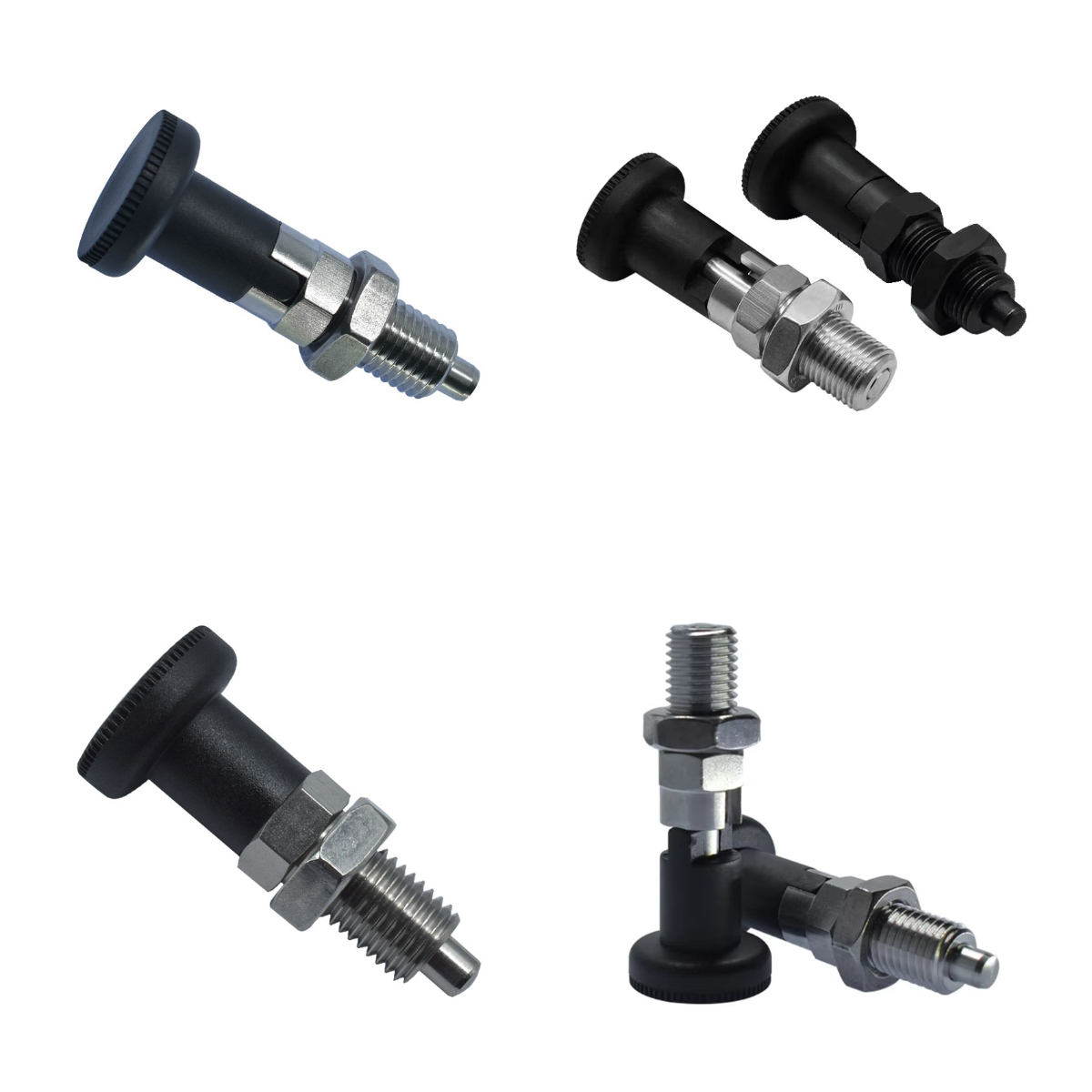

Discover threaded quick release pins, offering secure and fast fastening for industrial, automotive, and machinery applications. Durable, reliable, and easy to use—perfect for efficient operations. Upgrade today!

Threaded Quick Release Pins are an essential innovation in modern mechanical design, offering an unmatched combination of security, speed, and simplicity. Their ability to combine a strong threaded engagement with the ease of a quick-release mechanism makes them an ideal choice in dynamic, high-performance environments.

As industries continue to evolve toward more modular, efficient, and sustainable systems, threaded quick release pins will remain a foundational component in the future of engineering and manufacturing.

Whether you're in aerospace, robotics, medical technology, or industrial automation, these pins provide the reliability and flexibility needed to stay ahead in a competitive global market.
