Thread Size Calculation and Spring Plunger Pin Selection: A Professional Guide

1. Classification of Industrial Screw Systems and Application Scenarios

When discussing what are different types of screws, it is crucial to recognize that the choice of screw directly influences equipment reliability and maintenance efficiency. Based on over 20 years of engineering expertise, the Mocayo technical team categorizes industrial screw systems into three major groups:

• Mechanical Screws

• Miniature Spring Screws

• Ball-Locking Functional Screws

Among mechanical screws, hex socket head cap screws (in compliance with ISO 4762) dominate structural fastening due to their superior torque resistance. Our lab data reveals a 40% higher torque transmission efficiency compared to Phillips-head screws.

In contrast, self-tapping screws (e.g., DIN 7981) are widely applied in sheet metal connections. Their specialized cutting groove design greatly enhances performance. One of our enclosure-manufacturing clients achieved a 60% boost in assembly efficiency after adopting our self-tapping screw solutions.

High-Performance Specialty Screws in Demanding Applications

• Vibration-Resistant Screws (DIN 985): Nylon-insert lock nuts improve retention force by up to 5 times in high-vibration environments.

• Micro Precision Screws (M1.2–M3): Ideal for optical instruments and electronics, with a torque accuracy tolerance of ±5%.

• Corrosion-Resistant Screws (316L stainless steel): Successfully passed 1000-hour salt spray testing, ideal for marine applications.

Notably, in highly automated equipment, spring plunger pins are increasingly replacing conventional screws as the preferred solution for fast and precise positioning. According to our data analysis, integrating spring plunger pins reduces changeover time by an average of 45% on production lines.

2. Mocayo Spring Plunger Pin Product Systems and Technological Innovation

Standard Industrial Series

• Ball-Locking Plunger Pins – 300 Series Stainless Steel

  • Material: 304 / 316L Austenitic Stainless Steel

  • Surface Finish: Electrolytic polishing (Ra ≤ 0.4μm)

  • Spring Force Range: 5–50N (customizable)

  • Typical Application: Positioning in food processing machinery

    One client reported a 30% improvement in cleaning efficiency using these pins.



• Reinforced Alloy Steel Series

  • Material: SCM435 Chromium-Molybdenum Steel

  • Heat Treatment: Vacuum quenching with deep cryogenic processing

  • Hardness: HRC58–62

  • Proven Use Case: Turntable positioning in construction equipment

    Achieved a service life of over 200,000 cycles.

Customized Engineering Services

Mocayo offers bespoke spring plunger pin solutions, including:

✓ Non-standard size machining (minimum diameter: Φ1.5mm)
✓ Custom spring force curves
✓ 72-hour rapid prototyping
✓ Integrated positioning system design

A medical robotics client reported that our custom spring plunger pins enabled ±0.01mm joint repositioning accuracy, increasing product yield by 15%.

3. Technical Guidelines for Spring Plunger Pin Selection

Scientific Selection Process

• Load Analysis:

  • Light duty (<50N): Use standard stainless steel series

  • Heavy duty (>200N): Choose reinforced alloy steel series

• Environmental Assessment:

  • Corrosive environments: Opt for 316L or 254SMO

  • High-temperature conditions: Use 310S stainless steel (resistant up to 1150°C)

• Precision Matching:

  • General positioning: ±0.05mm

  • High-precision: ±0.01mm (requires specialized machining)

Installation Best Practices

• Press-Fit Technique:

  • Recommended to use designated installation tools

  • Press force: 20–50N (adjustable by specification)

• Fit Tolerances:

  • Hole tolerance: H7

  • Shaft tolerance: g6

• Lubrication Management:

  • General environments: Lithium-based grease

  • Clean environments: Dry film lubricant

Maintenance and Inspection Standards

• Routine Checks:

  • Monthly spring force degradation test (±10% tolerance)

• Scheduled Maintenance:

  • Re-lubricate every 2000 cycles

• Replacement Criteria:

  • Steel ball wear >0.02mm

  • Spring force degradation >20%

4. Quality Assurance and Technical Services

Comprehensive Quality Control System

• Raw Materials: Spectroscopic analysis + metallographic testing

• Production Process: 100% hardness verification

• Finished Products: Full dimensional inspection with CMM

• Certifications: ISO 9001 / ISO 13485 / AS9100

Expert Technical Support

Mocayo provides:

★ Free selection software
★ Failure analysis & optimization recommendations
★ On-site installation training
★ Full lifecycle management guidance

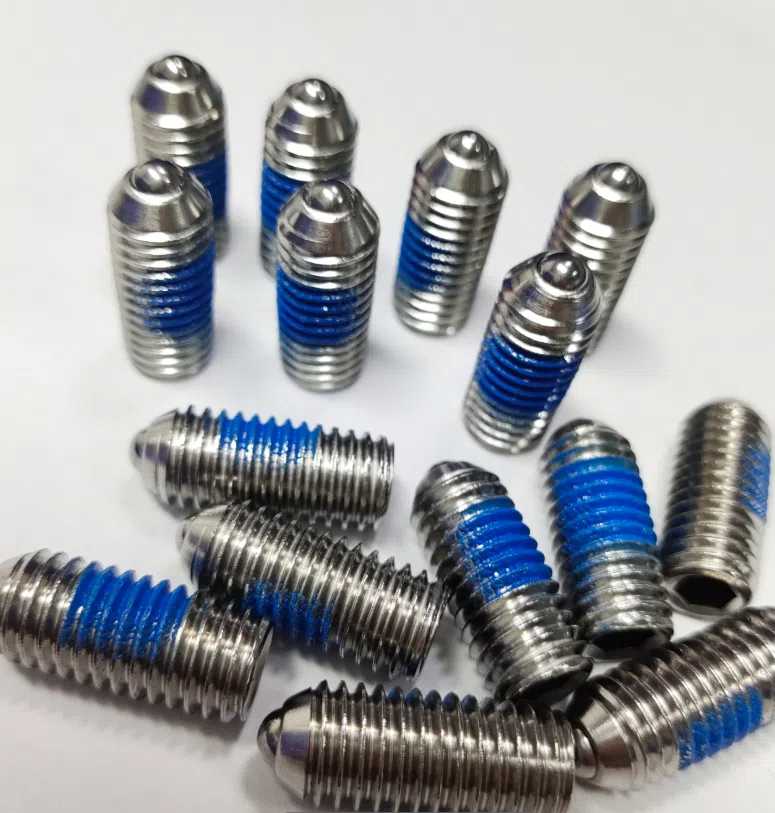

What Are Different Types of Screws & Spring Plunger Pins?Explore machine screws, wood screws, and self-tapping screws alongside spring plunger pins for precision positioning. Ideal for industrial and DIY projects.

Our Service Commitments:

→ 2-hour technical response
→ 24-hour sample turnaround
→ 72-hour on-site support (China-based customers)

By applying scientific selection principles and standard maintenance practices, Mocayo spring plunger pins help customers achieve:

✓ 30–50% improvement in positioning accuracy
✓ 40–60% reduction in maintenance cost
✓ 25–35% increase in overall equipment efficiency

For full technical documentation or to schedule a factory visit, please visit the Mocayo official website or contact your dedicated sales representative. Our engineering team is ready to provide you with expert fastening solutions.
