What Is A Force Ball Plunger?

A force ball plunger, also known as a spring-loaded ball plunger, is a specialized mechanical device designed to provide controlled force, precise positioning, or indexing in various applications. It consists of a ball-shaped tip, a spring mechanism, and a threaded body, making it a versatile tool for tasks requiring adjustable pressure or alignment. Force ball plungers are commonly used in industries such as manufacturing, automation, and machinery, where accuracy and reliability are essential.

Structure and Components

The force ball plunger is composed of three primary components:

1. Threaded Body: The outer casing of the plunger is typically threaded, allowing it to be securely screwed into a pre-tapped hole. This design ensures easy installation and adjustability.

2. Spring Mechanism: Inside the body, a compression spring provides the force needed to push the ball outward. The spring tension can often be adjusted to meet specific application requirements.

3. Ball Tip: The most distinctive feature of the force ball plunger is its ball-shaped tip, usually made of durable materials like stainless steel or carbide. The ball allows for smooth engagement with surfaces and reduces friction during operation.

How It Works

The force ball plunger operates on a simple yet effective principle. When the ball tip is pressed against a surface, the spring compresses, allowing the ball to retract into the body. Once the external force is removed, the spring pushes the ball back to its original position. This mechanism enables the plunger to perform functions such as:

• Positioning: The ball tip engages with detents, holes, or grooves to hold components in precise locations.

• Indexing: It can be used to align or rotate parts to specific positions, ensuring accuracy in machinery or equipment.

• Applying Force: The spring-loaded design allows the plunger to exert a controlled force, which can be useful in clamping or tensioning applications.

Applications

Force ball plungers are widely used in various industries and applications, including:

• Machinery and Equipment: They are commonly employed to position or lock machine parts, ensuring proper alignment and functionality.

• Automotive: In vehicles, force ball plungers can be found in gear shift mechanisms, throttle systems, and other components requiring precise movement.

• Electronics: They are used in connectors, switches, and other devices to ensure secure engagement and smooth operation.

• Furniture: Force ball plungers are often used in adjustable furniture components, such as reclining chairs or modular shelving systems, to provide controlled movement.

Advantages

The force ball plunger offers several key benefits, including:

• Precision: The ball tip ensures smooth and accurate engagement with surfaces, making it ideal for positioning and indexing tasks.

• Adjustability: The spring tension can often be customized, allowing users to control the force exerted by the plunger.

• Durability: Made from high-quality materials, force ball plungers are designed to withstand wear, corrosion, and heavy use.

• Versatility: With various ball sizes, spring tensions, and materials available, they can be adapted to a wide range of applications.

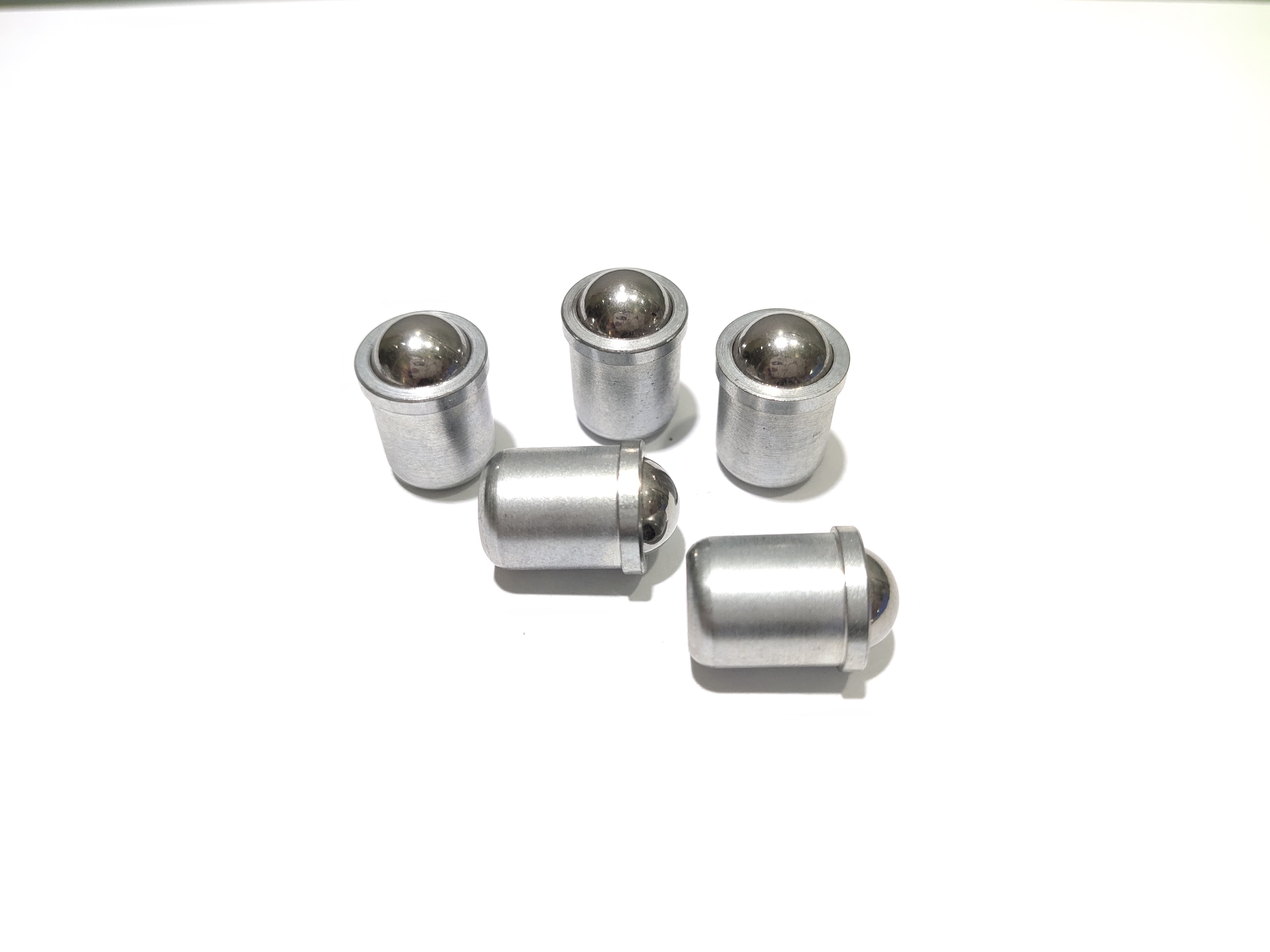

Discover what a force ball plunger is and how it provides precise positioning and reliable performance in industrial applications. Durable and efficient, they ensure smooth operation. Contact us for custom solutions today.
