What Is CNC Router Machine — Ball and Spring Plunger for CNC

Overview of CNC Router Machines

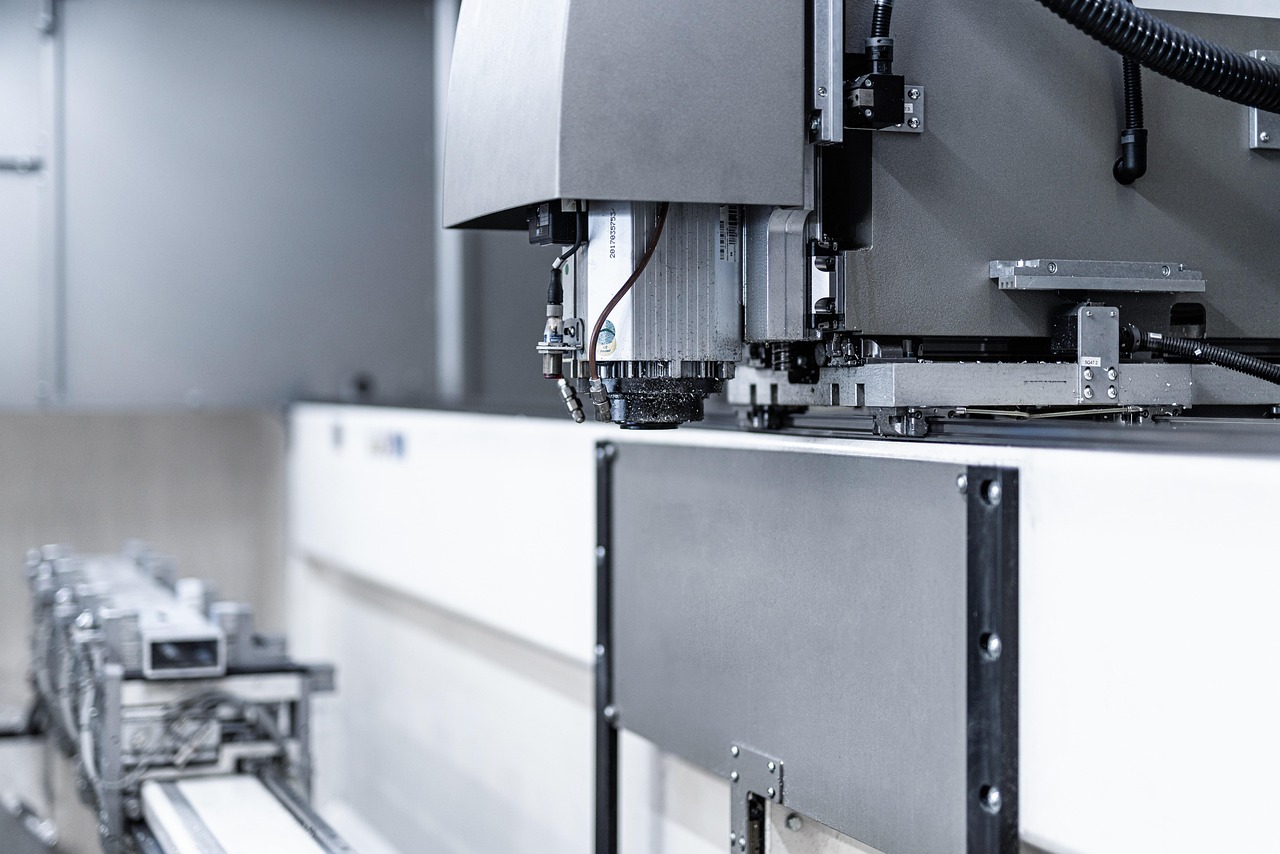

What Is CNC Router Machine? A CNC Router Machine is a type of computer-controlled cutting equipment widely used in wood processing, metal engraving, composite cutting, and light alloy fabrication. It integrates motion control systems, a high-speed spindle, and a precision worktable to execute complex cutting, engraving, and drilling operations with exceptional efficiency and accuracy. Unlike traditional manual equipment, CNC Router Machines automate the machining process based on programmed instructions, greatly reducing labor intensity and enhancing consistency.

The basic structure of a CNC Router Machine includes a control system (typically running on G-code), a spindle motor responsible for cutting, a rigid frame, and a worktable for material placement. The difference between a CNC Router Machine and traditional woodworking or metalworking tools lies in its programmability, repeatable accuracy, and ability to handle intricate designs at scale.

CNC Router Machines find key applications in woodworking (such as customized furniture, relief carving), composite material cutting (e.g., carbon fiber, acrylic), and light metal processing (like aluminum and copper components). In all these operations, the role of Ball and Spring Plunger components becomes indispensable to ensure stable and precise positioning.

Importance of Locating and Clamping Mechanisms in CNC

In CNC Router Machines, accurate positioning and stable clamping are vital to achieving optimal machining results. Even the smallest positional deviation can lead to dimensional errors or quality issues. This is why the incorporation of Ball and Spring Plunger components is essential—they serve as critical positioning elements that offer consistent repeatability and holding force.

Ball Plungers and Spring Plungers assist in aligning and locking workpieces or fixtures precisely. They minimize vibration, absorb shock, and maintain consistent contact pressure throughout the operation. Poor positioning systems can lead to inefficient processes, increased tool wear, and even machine downtime.

As such, Ball and Spring Plunger devices are central to improving overall CNC machining performance and reliability, especially in advanced CNC Router Machine applications.

Mocayo's Ball and Spring Plunger Product Series

At Mocayo, we offer a comprehensive range of Ball and Spring Plunger solutions designed to meet diverse CNC Router Machine needs:

Standard Ball Plungers (MS114)

These plungers feature high-precision steel balls, self-lubricating mechanisms, and are available in load ranges of 50N–200N. Perfect for jig positioning and mold alignment in CNC Router Machines, the BP series ensures efficient workpiece setup and repeatable accuracy.

Heavy-Duty Spring Plungers

Crafted from alloy steel, this series provides adjustable spring forces from 300N to 500N and a shock-resistant design. It’s ideal for securing large, heavy materials in industrial CNC Router Machines where mechanical strength and durability are paramount.

Corrosion-Resistant Stainless Steel Plungers (MS1140)

Manufactured with 316 stainless steel and tested for 500-hour salt spray resistance, this series is optimized for CNC applications in humid or corrosive environments like food processing or medical machining.

Micro Precision Plungers

With diameters ranging from 3mm to 8mm and repeatability of ±0.01mm, these micro plungers are tailored for high-precision electronics engraving or PCB drilling setups in compact CNC Router Machines.

Customized Solutions

Mocayo also provides tailored Ball and Spring Plunger solutions including DLC-coated options for reduced friction and non-standard sizes or forces as per client requirements.

Application of Ball and Spring Plungers in CNC Router Machines

• Fast Workpiece Positioning

Using Ball and Spring Plunger systems can reduce manual setup time, thereby increasing overall productivity. Automated, repeatable positioning simplifies operations in CNC Router Machines.

• Vibration Damping

The spring-loaded mechanisms in these plungers help absorb cutting force vibrations, improving surface finish and extending tool life.

• Modular Fixturing Systems

In modular CNC fixtures, Ball and Spring Plunger components allow rapid switching between different workpieces or molds, potentially reducing changeover time by up to 50%.

• Maintenance Optimization

Accurate and low-friction positioning also protects linear guides and spindles, thereby extending machine longevity and reducing downtime.

Industry Case Studies

Wood Carving with Precision

Requirement: Achieve 0.05mm repeatability in decorative wood engraving. Solution: Use BP Series Ball Plungers with self-lubricating features in CNC Router Machine jigs for superior alignment.

Aluminum Panel Cutting

Requirement: Prevent workpiece shift during high-speed operations. Solution: Apply HP Series Spring Plungers in CNC Router Machine fixtures for high holding force and shock resistance.

Composite Processing in Harsh Environments

Requirement: Withstand carbon fiber dust and moisture exposure. Solution: Utilize SS Series Stainless Steel Plungers for durability in adverse conditions.

Micro-Electronics Engraving

Requirement: Operate within compact space with high accuracy. Solution: Integrate MP Series Micro Plungers in mini CNC Router Machines for optimal micro-positioning.

What is CNC router machine, ball and spring plunger—discover precision tools and components used in CNC machining for accurate positioning and efficiency, understanding "What Is CNC Router Machine" is foundational to leveraging its full capabilities. Equally critical is the role played by Ball and Spring Plunger components, which support precision, efficiency, and durability in various CNC applications. Mocayo’s engineered solutions are at the forefront of enhancing the performance and reliability of CNC Router Machines across industries.
