What Is SS 304 Material – The Ideal Material For Indexing Pin

1. Material Properties and Industrial Value of SS 304 Stainless Steel

As a classic representative of austenitic stainless steel, SS 304 material is widely recognized for its outstanding all-round performance, making it the ideal material for indexing pin manufacturing. In terms of chemical composition, it contains approximately 18% chromium (Cr), which ensures excellent oxidation resistance, and around 8% nickel (Ni), which maintains a stable austenitic structure. According to lab tests conducted by Mocayo, SS 304 stainless steel demonstrates corrosion resistance 5 to 8 times greater than standard carbon steel in general industrial environments, while costing only 60–70% of SS 316, offering an optimal balance between performance and affordability.

In terms of mechanical performance, SS 304 exhibits a well-rounded set of characteristics:

• Tensile Strength: ≥ 515 MPa (ASTM A240 Standard)

• Yield Strength: ≥ 205 MPa

• Elongation: ≥ 40%

These properties ensure dimensional stability of indexing pins during repeated use. Our long-term testing shows that SS 304 indexing pins, after proper heat treatment, exhibit a diameter variation of less than 0.005 mm even after 10,000 insert-and-remove cycles—more than adequate for precision applications.

Furthermore, SS 304’s excellent machinability makes it the preferred choice for complex-shaped indexing pins. Compared to high-carbon steel, it reduces cutting resistance by 30% and extends tool life by more than double. One case study from an automotive component manufacturer revealed that switching to SS 304 indexing pins improved machining efficiency by 25% and cut overall costs by 18%.

2. Engineering Considerations for Indexing Pin Material Selection

Choosing the right material for an indexing pin requires a comprehensive evaluation system. Mocayo’s engineering team has developed a proven material selection model based on three key factors: Load – Environment – Cost.

Load Analysis

• Light Load (<500N): Standard SS 304 is sufficient

• Medium Load (500–2000N): Cold-worked SS 304 is recommended

• Heavy Load (>2000N): Consider surface-hardening treatments

Environmental Suitability

• Dry industrial environments: Standard SS 304

• Humid environments: Chromium-plated SS 304

• Food & medical industries: Polished SS 304 (Ra ≤ 0.4μm) is required

Cost-Benefit Optimization

Although SS 316 offers higher corrosion resistance, SS 304 material provides better cost-effectiveness for most applications. Cost analysis from an automation equipment manufacturer demonstrated the following advantages:

✓ Initial purchase cost reduced by 35%
✓ Maintenance intervals remained between 12–18 months
✓ Total lifecycle cost savings up to 28%

3. Mocayo SS 304 Indexing Pin Solutions

With years of technical expertise, Mocayo offers a complete range of SS 304 indexing pin solutions designed to meet diverse industry needs.

MS1170 – General Industrial Type

• Material: ASTM A276 Certified SS 304

• Hardness: HRC 28–32 (Tempered)

• Precision: ±0.01 mm

• Typical Use: CNC machine fixture positioning

MS1070 – Food-Grade Type

• Surface Finish: Electro-polished (Ra 0.4μm)

• Certification: FDA 21 CFR 178.1520 compliant

• Use Case: Dairy filling equipment guide pins

Enhanced Treatment Series

MS2171

• Coating Thickness: 0.015–0.025 mm

• Surface Hardness: HV800–900

• Salt Spray Resistance: 500 hours without rust

MS3171

• Diffusion Layer Depth: 0.15 mm

• Anti-galling Performance: Improved 3x

• Use Case: High-speed stamping dies

Customization Services

Mocayo provides end-to-end support for custom indexing pin requirements:

✓ Non-standard sizes (as small as Φ2mm)
✓ Custom guiding structure designs
✓ Rapid prototyping in 5 working days
✓ Integrated positioning systems

One electronics manufacturer, for example, adopted our micro SS 304 indexing pins (Φ3mm) and achieved ±0.005 mm assembly accuracy, reducing product defect rates by 40%.

4. Professional Selection and Technical Support

Scientific Selection Process

• Working Condition Assessment (with standard checklists)

• Load Calculations (free calculation tools provided)

• Surface Treatment Plan

• Sample Verification (in-house testing available)

Installation Guidelines

Press-Fit Method

• Recommended pressure: 15–25 MPa

• Guide chamfer: 20° preferred

Lubrication

• Standard Conditions: Lithium-based grease

• Food-Grade: NSF H1 certified lubricants

Quality Assurance System

• Material Traceability: Mill test certificates

• Dimensional Inspection: 3D CMM measurement reports

• Certifications: ISO 9001:2015 compliant

Mocayo’s expert technical team offers:

★ Free Material Analysis
★ Working Condition Simulations
★ 3D Design Assistance
★ Failure Analysis Services

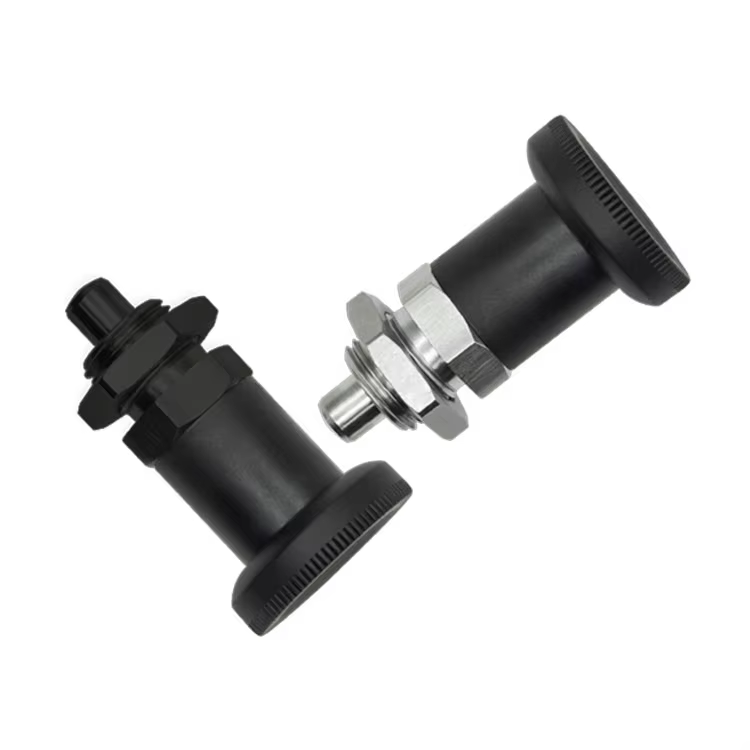

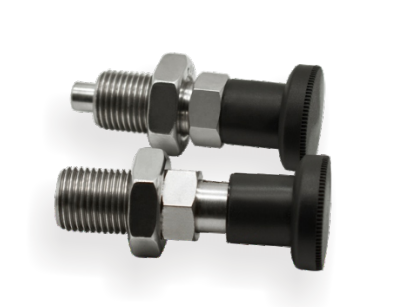

What Is SS 304 Material & Indexing Pin? SS 304 (18/8 stainless steel) offers corrosion resistance for durable indexing pins in industrial applications. Explore high-quality stainless steel components today!

With proper selection and professional maintenance, our SS 304 indexing pins help clients achieve:

→ 20–30% improvement in positioning accuracy
→ 25–40% reduction in maintenance costs
→ 15–25% boost in overall equipment efficiency

Visit the Mocayo website to access the full technical catalog or contact your local sales representative to schedule an on-site consultation. Our engineering support team guarantees a response to technical inquiries within 24 hours.
