CNC Repeatability Relies On Precision Positioning

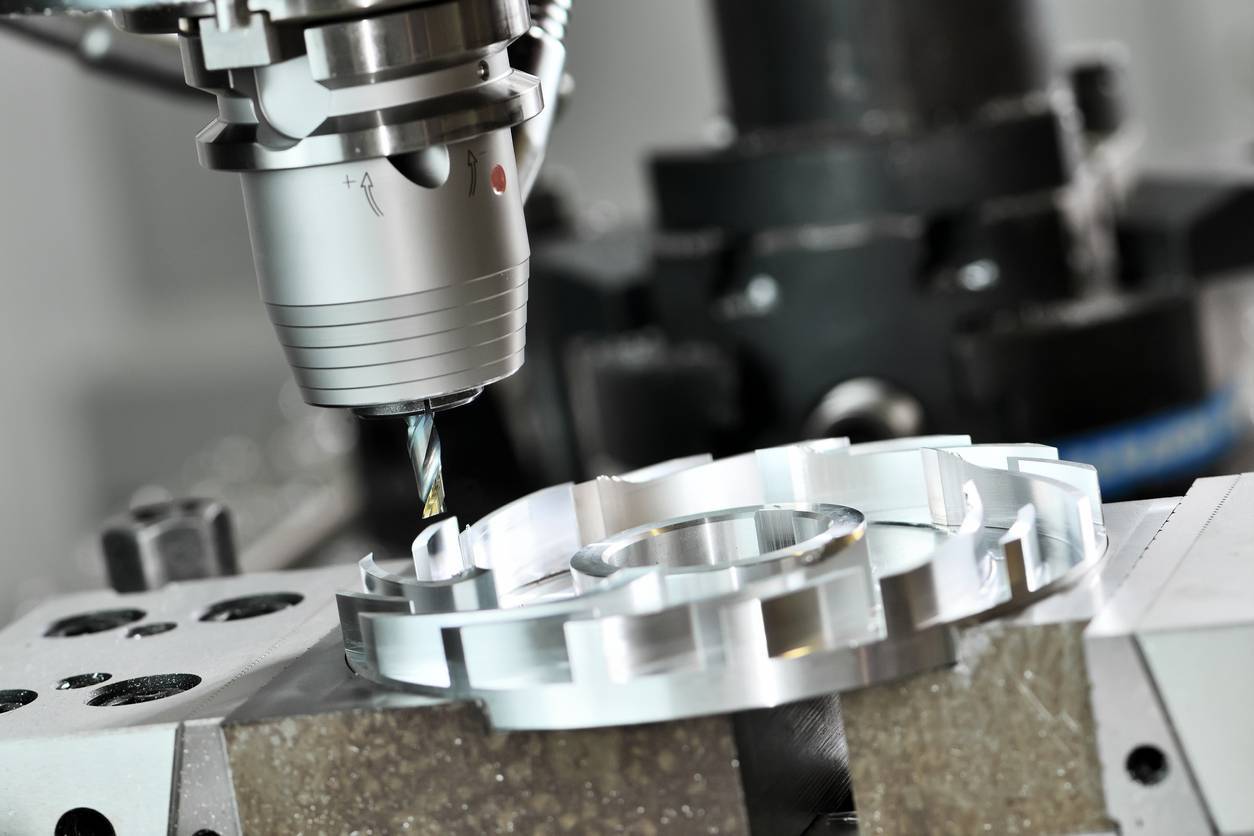

In the high-stakes world of CNC machining, repeatability is paramount. It ensures that the hundredth part to roll off the machine is identical to the first, with perfect dimensions, precise features, and ready for assembly. True repeatability isn't just about moving the machine to a certain position; it's about maintaining absolute rigidity. Vibration, cutting forces, and thermal fluctuations constantly test a machine's stability.

When absolute positioning accuracy and rigidity are essential, specialized mechanical locking devices come into being. The two most reliable solutions are:

Indexing Plungers：

They ensure perfect alignment of components every time they are indexed. They are carefully engineered plungers with a hardened, precision-ground stem terminating in a tapered or spherical tip. The key lies in their positive locking mechanism – typically a spring-loaded ball, pin, or detent that engages a precision-machined hole or notch.

Ensuring that fixtures, workpieces, and moving parts always return to their precise reference positions is crucial for avoiding costly errors. Spring plungers play a central role in this: their built-in precision springs provide constant spring force, enabling millimeter-level repeatability with a click-and-lock mechanism in the fixture's locating holes.

Cam-action Indexing Plunger

Ball Locking Pins：

Designed for fast, highly repeatable positioning. Pressing a button on the handle forces a spring into the body. Releasing the handle releases the ball, locking it securely against the hole wall for rapid pin removal. Key features include fast, one-handed operation, wear resistance, consistent clamping force, and excellent resistance to vibration loosening. They excel in fast-change, high-precision applications.

Quick Lock Pins

Indexing plungers and ball locking pins are more than just accessories; they are essential components in the pursuit of manufacturing perfection. Contact us to learn more!
