Locking In CNC Accuracy

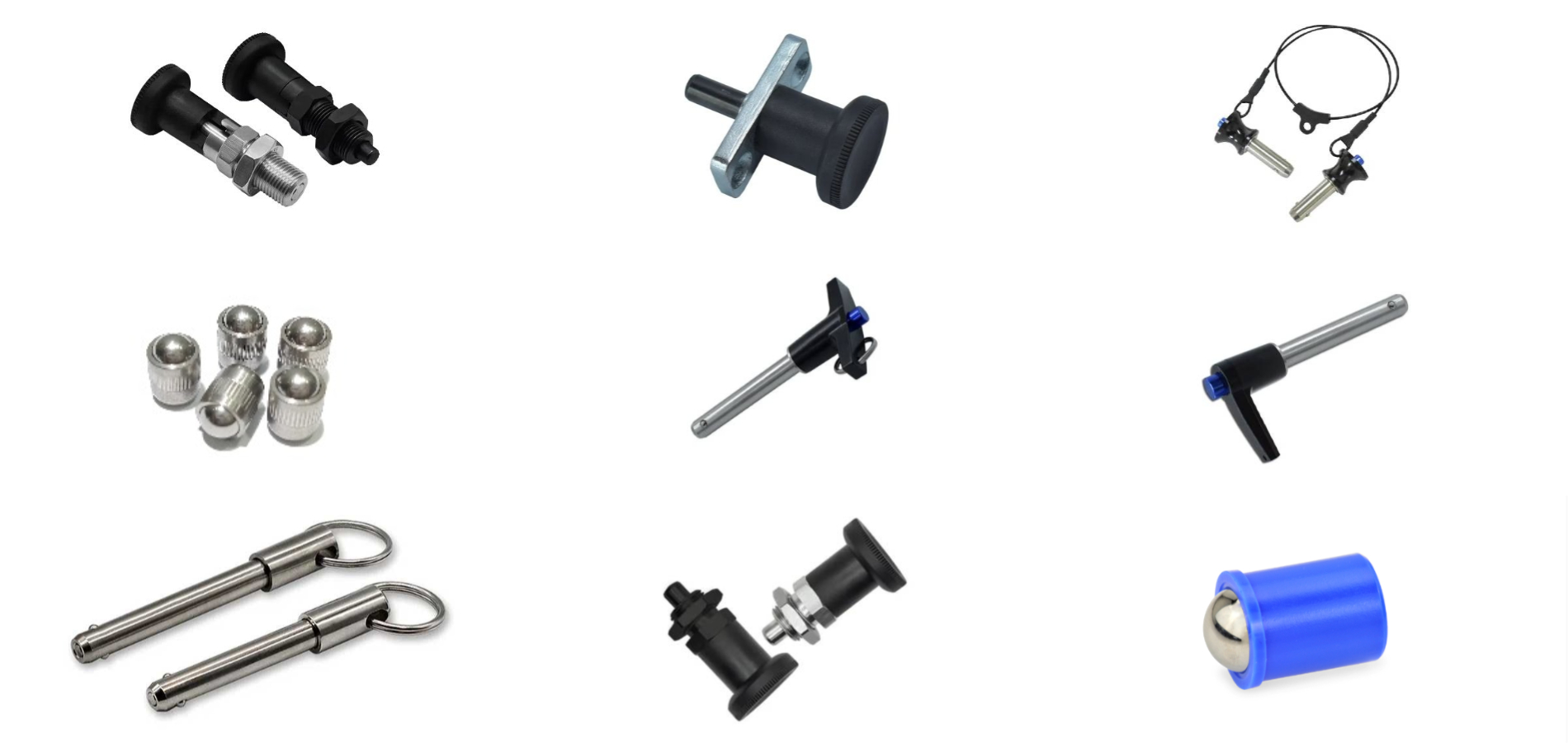

Imagine a precision vise holding a critical aerospace component. During heavy milling, even the slightest movement could damage the part. Or, imagine a multi-step operation that requires removing and reinstalling a fixture plate for a secondary operation—achieving perfect repositioning is crucial. While both masters of precision locking, indexing plungers and ball locking pins excel in slightly different areas:

Indexing Plungers:

They are carefully engineered plungers with a hardened, precision-ground stem terminating in a tapered or spherical tip. The key lies in their positive locking mechanism—usually a spring-loaded ball, pin, or detent that engages a precisely machined hole or notch.

The spring-loaded ejector and ball lock pin ensure a secure connection for your CNC setup. The spring-loaded ejector acts as a precision ejector, applying reliable pressure to ensure tight part/fixture contact. The ball lock pin provides a tool-free, instant, and extremely rigid connection with excellent repeatability.

Coarse Self-Locking Indexing Plunger

Ball Locking Pins:

The pin has spring-loaded balls near its tip. When inserted into an undersized hole, the balls are pressed down. Once the balls pass through and align with the annular groove or recess in the mating component, they spring outward under spring pressure, locking the pin securely in place.

Spring-loaded dowel pins provide precise positioning and retention, while ball-lock pins provide unmatched speed and vibration-resistant locking in quick-change systems. Secure fixtures and parts with micron-level accuracy for every batch.

Detent Ball Lock Pin

Pursuing CNC precision doesn't always mean upgrading the machine tool itself. Often, the most significant gains come from strengthening the fundamental connections that define part position and fixture rigidity. Indexing plungers and ball locking pins are specially designed engineering solutions that eliminate minute movements that can cause major problems, making them indispensable tools for achieving truly repeatable, high-precision CNC results.

Ready to lock out errors and maintain peak performance? Contact us!
