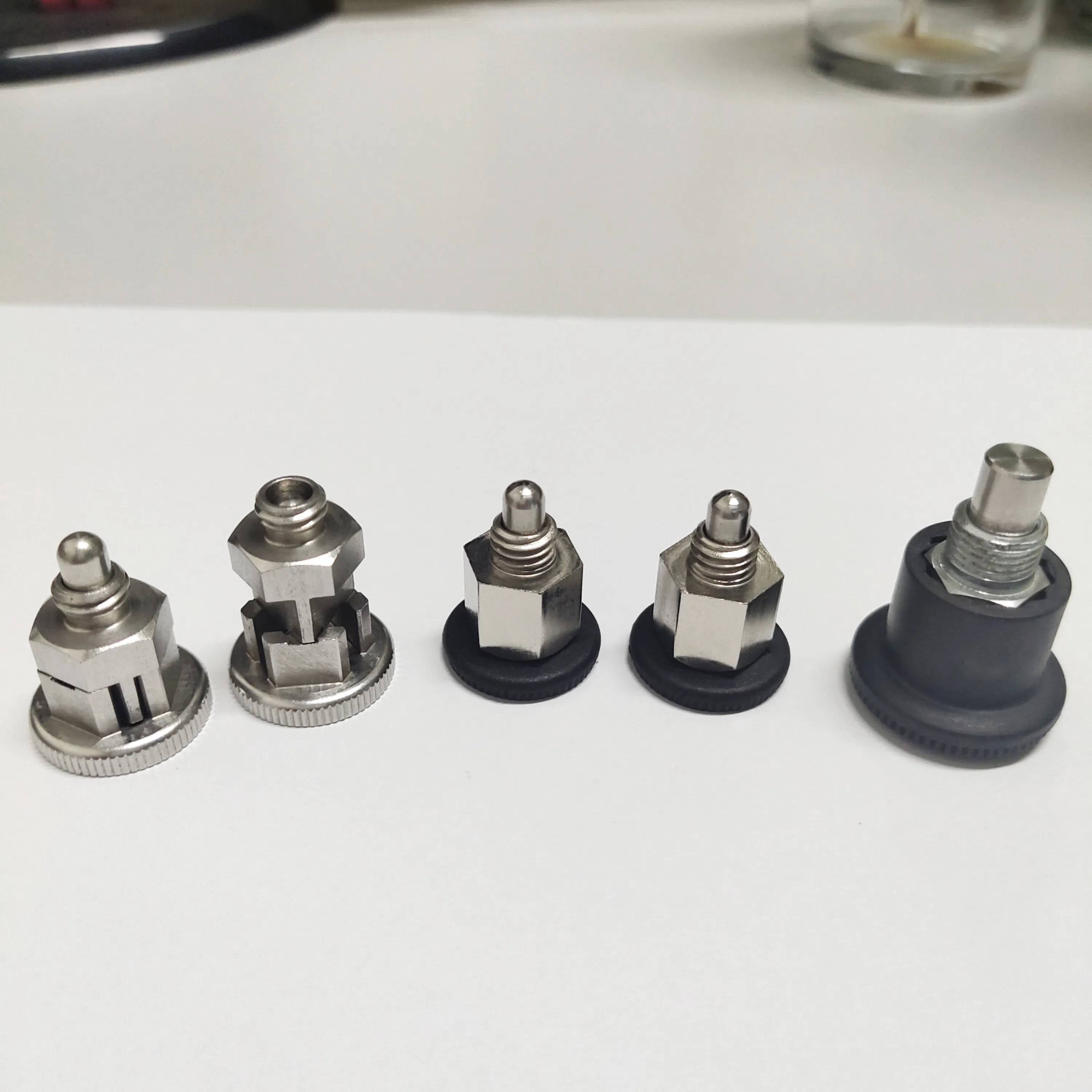

Tool-Free Fastening Pins
Industrial assembly and maintenance teams can now eliminate time-consuming tool dependency with our newly launched Tool-Free Fastening Pins. Engineered for rapid component securing in machinery, jigs, and automated systems, these pins deliver single-handed operation while maintaining uncompromised load-bearing integrity.
Core Technology:
The mechanism integrates a spring-loaded collar with precision-machined locking balls. Users simply pull the collar backward, insert the pin into pre-drilled holes (Ø6-25mm), and release. The balls instantly expand radially, creating a rigid mechanical lock capable of withstanding axial loads up to 1,200N and shear forces exceeding 800N. No wrenches, drivers, or torque calibration are needed.
Performance Advantages:
- 15-Second Installation/Removal
Replace threaded bolts requiring 2+ minutes of tool adjustments.
- Vibration Resistance
Self-maintaining locking force prevents loosening under 50Hz harmonic oscillations.
- Repeatable Accuracy
Positioning tolerance ≤ ±0.05mm after 10,000+ cycles (ISO 16047 certified).
- Universal Compatibility
Stainless steel body works with steel, aluminum, and composite substrates.
Complementary to Existing Systems:
These pins seamlessly integrate with standard industrial components. For applications requiring positional indexing – such as rotary tables or fixture plates – pairing with indexing plungers ensures dual-positioning security. The tool-free pins handle primary load-bearing, while indexing plungers provide secondary radial alignment. This combination reduces reliance on traditional bolted joints.
Target Applications:
- Quick-change robotic end-effectors
- Modular assembly platforms
- Maintenance access panels
- Warehouse automation guides
Why This Matters:
Tool-free fastening pins cut equipment downtime by up to 70% during component changeovers. Maintenance teams report 53% faster safety panel replacements in press machinery trials, while production lines achieve 20% higher tooling reconfiguration speeds.
Availability:
Sizes 6mm, 10mm, 16mm, and 25mm diameters now shipping globally. Custom lengths (20-150mm) offered for OEM.
